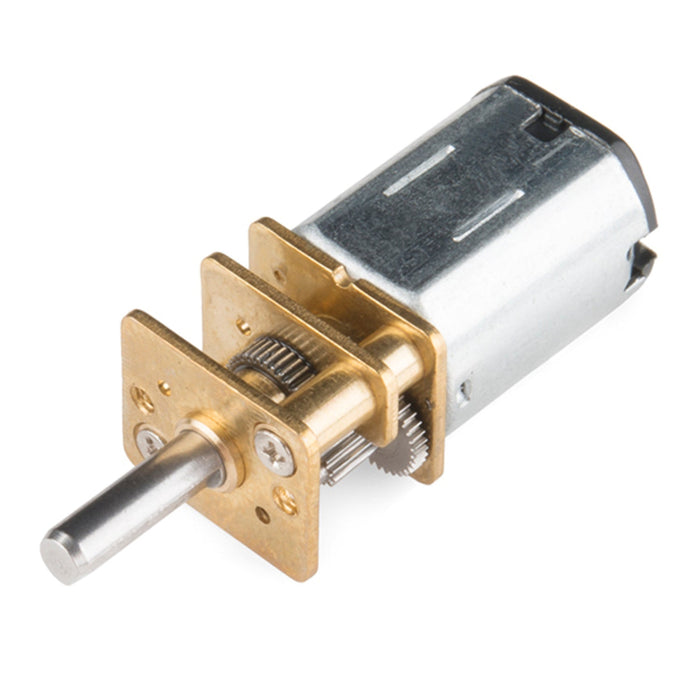

Micro Gearmotor - 175 RPM (6-12V)
52 units will be available shortly.
These micro gearmotors are incredibly tough and feature full metal gears. They have a gear ratio of 150:1 and operate up to 12 volts and have a stall torque of 45 oz-in. and a max speed of 175 RPM. Each micro gearmotor sports a 3mm D-shaft.
Note: The micro gearmotor enclosures are sold separately, you can find them here.
Features:
- Voltage: 6 - 12 Volts
- Gear Ratio: 150:1
- Stall Torque: 17/45 oz-in. (6/12V)
- Speed: 90/175 RPM (6/12V)
- No Load Current: 40/70 mA (6/12V)
- Stall Current: 360/1600 mA (6/12V)
- DC Reversible
Dimensions:
- Motor Size: 26 x 12 x 10mm
- Shaft Size: 3mm Diameter x 10mm Length
- Weight: 17g
The Micro Gearmotor - 175 RPM (6-12V) appears in the following collections:
SKU SF-ROB-12205
