Gravity: Digital Piezo Disk Vibration Sensor
105 units will be available shortly.
The DFRobot Vibration Sensor buffers a piezoelectric transducer that responds to strain changes by generating a measurable output voltage change which is propotional with the strength of vibration.So you can know the extent of vibration. Different from digital vibration sensor that only accounts times, this analog one can tell extent of vabiration.
SPECIFICATION
- Supply Voltage: 3.3V to 5V
- Interface: Analog
- Size:22x30mm (0.87x1.2'')
DOCUMENTS

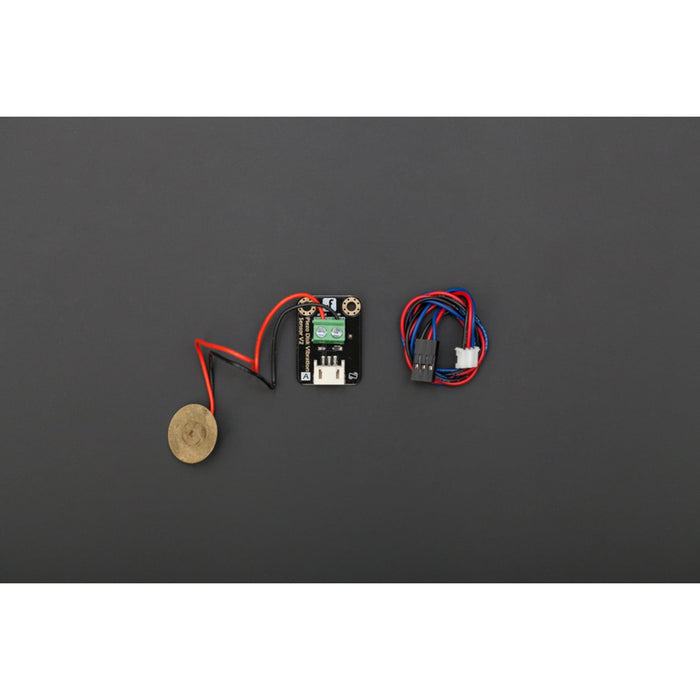

SHIPPING LIST
- Piezo Disk Vibration Sensor x1
- Analog cable x1
IMPROVEMENT LIST
- Wide voltage range from 3.3V to 5V
- Standard assembling structure (Times-of-5mm Center distance between two 3mm mounting holes)
- Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
- Icons to simplely illustrate sensor function
- High quality connector
- Immersion gold surface
Arduino can sense the pressure on piezoelectric unit.
The Gravity: Digital Piezo Disk Vibration Sensor appears in the following collections:
SKU DF-DFR0052
