Solenoid Valve-DN15
28 units available with a short lead time.

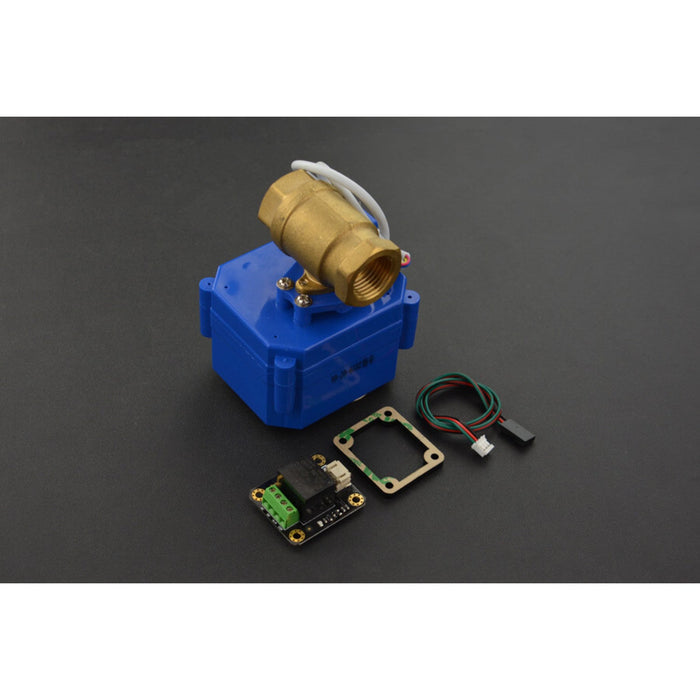

A 12V DC motorised solenoid valve for controlling liquid flow in automated systems. Featuring a sealed metal reduction gearbox with high torque and low noise, this valve integrates both automatic and manual operation — it maintains its current state when powered off, allowing manual override.
The three-wire control interface (open, close, ground) makes integration with microcontrollers and relay modules straightforward, making it ideal for smart home, agriculture, aquaculture, and other water flow control projects.
Key Features
- Automatic & Manual Operation – Electronically controlled with manual override when powered off
- Three-Wire Control – Blue wire (open), red wire (close), yellow wire (ground)
- Sealed Motor Design – Metal reduction gearbox for reliable, low-noise operation
- High Torque – 30–60 kg·cm for dependable valve actuation
- 1.0 MPa Pressure Rating – Handles standard residential and light commercial water pressure
- Anti-EMI – Resistant to electromagnetic interference
Specifications
- Rated Voltage – 12V DC
- Rated Current – 100 mA
- Rated Power – 2W max
- Valve Pressure – 1.0 MPa
- Insulation Resistance – >20 MΩ
- Torque – 30–60 kg·cm
- Pipe Inner Diameter – DN15 (15 mm / 0.59")
- Operating Temperature – −10°C to +50°C
Ideal For
- Smart home water management
- Automated irrigation and agriculture
- Aquaculture and fishery systems
- Arduino and Raspberry Pi water flow projects
Tip: Use with a 5A relay module to easily control the valve from an Arduino or other microcontroller.
