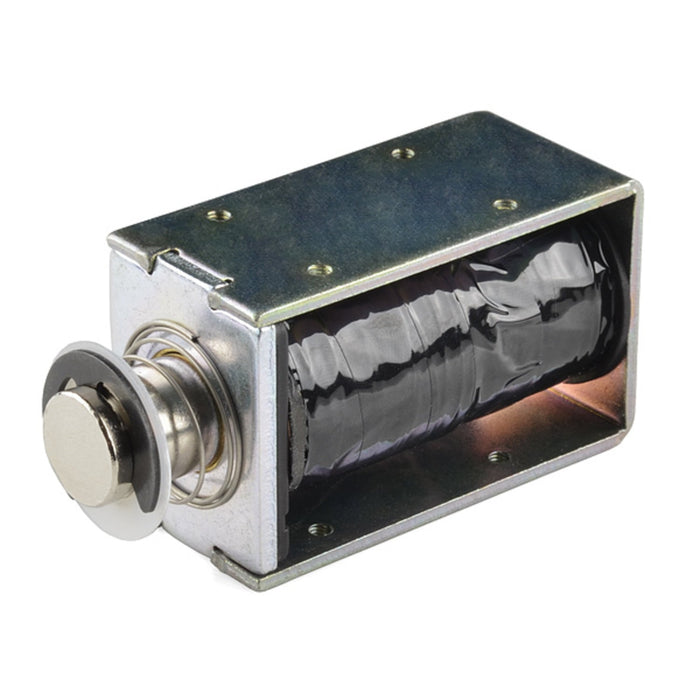

Solenoid - 36v
We have ✅ 1 available of the SF-ROB-10391 in our Sydney warehouse.
A linear push-type solenoid rated for 36 V DC that also works well at 12 V. Solenoids produce linear motion for pushing, pulling, or actuating switches and levers. This unit has a measured throw of approximately 10 mm.
Key Features
- Linear Push Solenoid – For push, pull, and actuation applications
- 36 V DC Rated – Also operates reliably at 12 V
- ~10 mm Throw – Measured stroke length
Specifications
- Rated Voltage – 36 V DC
- Current Draw at 12 V – 650 mA
- Current Draw at 36 V – 1.85 A
- Throw – ~10 mm (measured; datasheet indicates 25 mm)
Ideal For
- Door latch actuation
- Automated percussion instruments
- Robotics and mechanical automation
- Arduino-controlled motion projects
Package Contents
- 1× Solenoid (36 V)
Resources
