Adafruit ItsyBitsy RP2040
We have ✅ 4 available of the AF-4888 in our Sydney warehouse. An extra 73 units available with a short lead time.

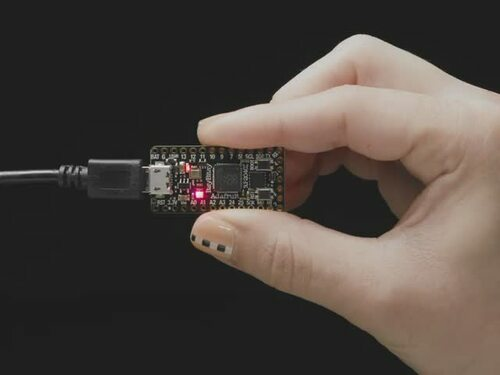

The Adafruit ItsyBitsy RP2040 brings the Raspberry Pi RP2040 to the compact ItsyBitsy form factor. Featuring a dual-core Cortex M0+ running at 125 MHz, 264 KB RAM, and 8 MB of SPI Flash, it packs serious power into a board just 1.4" × 0.7" — perfect for shrinking prototypes into tiny final builds.
The RP2040's unique PIO (Programmable I/O) state machines enable custom hardware-level protocols for NeoPixels, I2S audio, LED matrices, and more — all without using the CPU. Supports CircuitPython, MicroPython, and C/C++ with the Pico SDK.
Key Features
- RP2040 Dual-Core Cortex M0+ – 125 MHz, 32-bit with 264 KB RAM
- 8 MB SPI Flash – Generous storage for CircuitPython/MicroPython code and data files
- 23 GPIO Pins – 4× 12-bit ADC, 16× PWM, 2× I2C, 2× SPI, 2× UART
- PIO State Machines – 2× PIO peripherals with 4 state machines each for custom hardware protocols
- CircuitPython, MicroPython & C/C++ – Multiple programming environment support
- Native USB – Built-in ROM UF2 bootloader; serial console, HID, and disk drive support
- VHigh Output & Level-Shifted Pin 5 – 5V logic output for NeoPixels, servos, and LEDs
- RGB NeoPixel – Onboard addressable LED with power control for low-power modes
- Reset & Bootloader Buttons – Quick restarts without unplugging
- 3.3V Regulator – 500 mA output with automatic USB/battery switching
- SWD Debug Pins – Broken out for hardware debugging
Ideal For
- Compact CircuitPython and MicroPython projects
- PIO-driven NeoPixels, I2S audio, and custom protocols
- Shrinking Raspberry Pi Pico or Feather RP2040 prototypes
- USB HID devices, data loggers, and IoT builds
Package Contents
- 1× Adafruit ItsyBitsy RP2040
- 1× Header Strip (unsoldered)
