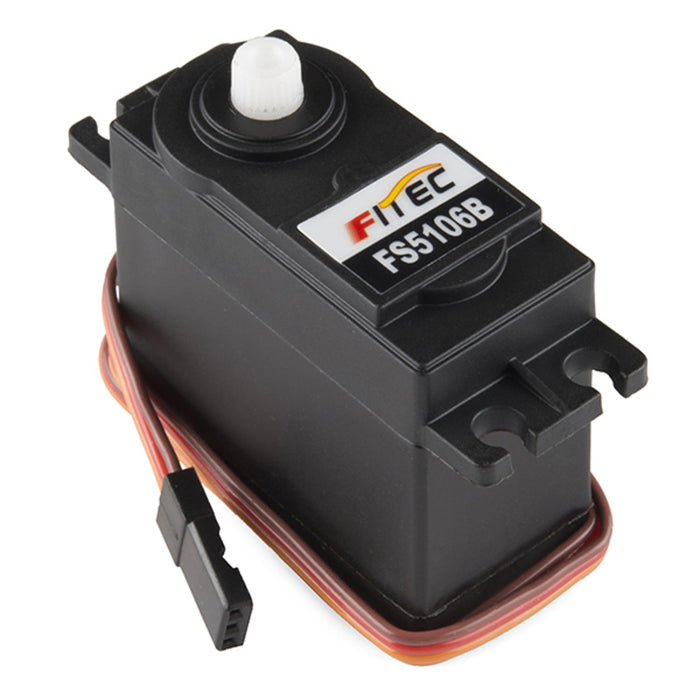

Servo - Generic High Torque (Standard Size)
We have ✅ 22 available of the SF-ROB-11965 in our Sydney warehouse. An extra 13 units will be available shortly.
Here is a powerful, low-cost, reliable servo for all your mechatronic needs. This servo is able to take in 6 volts and deliver 83.47 oz-in. of maximum torque at 0.16 sec/60°
This is a tough little servo with a standard 3 pin power and control cable, and all hardware listed below.
Features:
- Voltage: 4.8-6.0 Volts
- Torque: 69.56/83.47 oz-in. (4.8/6.0V)
- Speed: 0.18/0.16 sec/60° (4.8/6.0V)
- Direction: Counterclockwise 1000-2000usec
- Rotation: 180°
- Dual Ball Bearing
- Nylon Gears
- 25T Spline (Futaba 3F)
Includes:
- 1x FS5106B High Torque Servo
- 1x Double Arm Horn
- 1x Circle Horn
- 1x Four Point Horn
- 1x Six Point Horn
- 2x 3x10mm Phillips Screw
- 4x 2x13mm Mounting Phillips Screw
- 4x Rubber Grommets
- 4x Brass Eyelets
Dimensions:
- 40.8 x 20.1 x 38mm
- Wire Length: 300mm
- Weight: 40g
Documents:
Replaces:ROB-9064
