Raspberry Pi PoE+ HAT (Compatible with Raspberry Pi 4B / 3B+)
We have ✅ 6 available of the DF-DFR0876 in our Sydney warehouse. An extra 9 units available with a short lead time.
The Raspberry Pi PoE+ HAT adds Power over Ethernet capabilities to your Raspberry Pi 3B+ or 4B, allowing you to power and connect your Pi to the network using a single Ethernet cable. This eliminates the need for a separate power supply and reduces cable clutter in your setup.
With support for the IEEE 802.3af PoE standard, a fully isolated switch-mode power supply, and 5V/5A output, it provides stable, efficient power even under maximum load. An integrated 25mm brushless cooling fan helps maintain optimal operating temperatures.
Key Features
- IEEE 802.3af PoE Standard – Power and network over a single Ethernet cable
- 5V / 5A DC Output – Sufficient power for Raspberry Pi under full load
- 37–57V DC Input Range – Wide voltage input for various PoE switches and injectors
- Fully Isolated SMPS – Protection from power surges and fluctuations
- 25mm Brushless Cooling Fan – Active cooling for optimal Pi performance
- HAT Form Factor – Connects via 40-pin GPIO and 4-pin PoE headers
Specifications
- Standard – IEEE 802.3at-2003 PoE
- Input Voltage – 37–57V DC
- Output – 5V / 5A DC
- Operating Temperature – 0–50°C
- Compatibility – Raspberry Pi 4B / 3B+
Installation
- Install the provided standoffs at the four corners of the board
- Align with the 40-pin GPIO and 4-pin PoE headers on the Pi and press into place
- Connect an Ethernet cable from a PoE-capable switch or injector
- When removing, pull evenly to avoid bending pins
Ideal For
- Remote or ceiling-mounted Pi installations
- Network equipment and server closets
- Clean, single-cable setups
- IoT deployments requiring simplified power
Package Contents

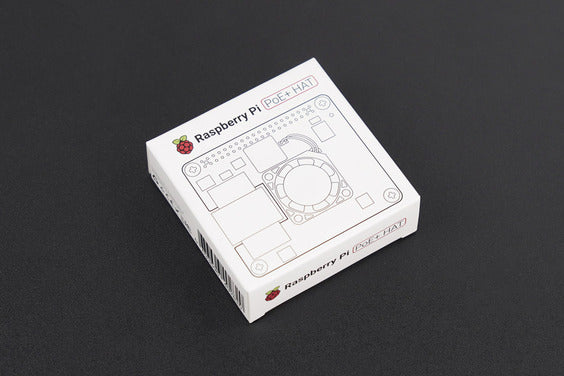

- 1× Raspberry Pi PoE+ HAT (with standoffs)
