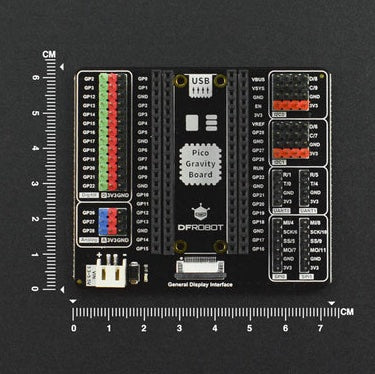

Gravity: Expansion Board for Raspberry Pi Pico
We have ✅ 5 available of the DF-DFR0848 in our Sydney warehouse. An extra 424 units available with a short lead time.
A Gravity-compatible expansion board for the Raspberry Pi Pico, breaking out all GPIO pins to labelled female headers and Gravity-standard 3-pin connectors. Provides plug-and-play access to 13 digital I/O, 3 analogue I/O, 2× I²C, 2× UART, and 2× SPI ports — no soldering required.
Also includes a PH2.0 power connector (3.3–5.5V) for battery-powered projects and a GDI port for compatible DFRobot displays.
Key Features
- Gravity Compatible – Plug in DFRobot Gravity sensors and modules directly
- All Pins Broken Out – Female headers for every Pico GPIO pin
- No Soldering Required – Plug-and-play with the Raspberry Pi Pico
- Multiple Interfaces – 2× I²C, 2× UART, 2× SPI, 13× digital I/O, 3× analogue I/O
- External Power – PH2.0 connector accepts 3.3–5.5V for portable projects
- GDI Display Port – Compatible with DFRobot GDI series displays
Specifications
- Digital I/O: 13 (GP2–GP22)
- Analogue I/O: 3 (GP26–GP28)
- UART: 2
- I²C: 2
- SPI: 2
- Power Connector: PH2.0, 3.3–5.5V
- Display Interface: GDI
- Dimensions: 73 × 63mm
Package Contents
- 1× Gravity Expansion Board for Raspberry Pi Pico
Warning: The pin mapping for the Digital and Analogue headers on the left side of the board is reversed. GP2–GP22 on the green pins map to GP22–GP2 on the Pico, and GP26–GP28 on the blue pins map to GP28–GP26 on the Pico. Check the silkscreen labels carefully when wiring.
Note: Raspberry Pi Pico is sold separately.
