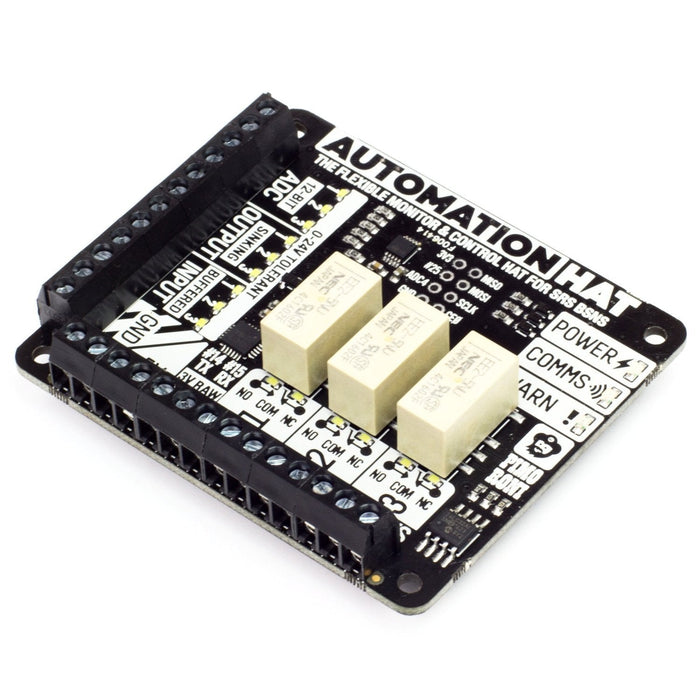

Automation HAT

The Pimoroni Automation HAT is a versatile home automation and monitoring controller for the Raspberry Pi. It provides relays, analogue inputs, buffered digital inputs, and powered outputs — all 24 V tolerant — with indicator LEDs on every channel for at-a-glance status monitoring.

Connects to the Raspberry Pi via the 40-pin GPIO header and is controlled through a Python library with ready-to-use examples.

Key Features

• 3× 24 V / 2 A Relays – NC and NO terminals for switching loads
• 3× 12-Bit ADC Channels – 0–24 V input range (±2% accuracy)
• 1× 12-Bit ADC Channel – 0–3.3 V input range
• 3× Buffered Inputs – 24 V tolerant digital inputs
• 3× Sinking Outputs – 24 V tolerant (500 mA total across all three)
• 15× Channel LEDs – Visual status indicators (analogue channels dim proportionally)
• 3.5 mm Screw Terminals – Secure, solderless connections
• Breakout Pins – SPI, TX (#14), RX (#15), #25

Specifications

• Relays: 3× SPDT, 24 V @ 2 A max (high-side switching)
• ADC: 3× 0–24 V + 1× 0–3.3 V (12-bit, ±2%)
• Inputs: 3× 24 V tolerant buffered
• Outputs: 3× 24 V tolerant sinking (500 mA total)
• Terminals: 3.5 mm screw
• Compatibility: Raspberry Pi 3B+, 3, 2, B+, A+, Zero, Zero W

Ideal For

• Home automation and smart monitoring
• Greenhouse and irrigation control
• Industrial sensor monitoring (24 V systems)
• Relay-based scheduling and switching

Package Contents

• 1× Automation HAT (fully assembled; breakout pins require soldering)

Resources

• Automation HAT Pinout
• Python Library (GitHub)
