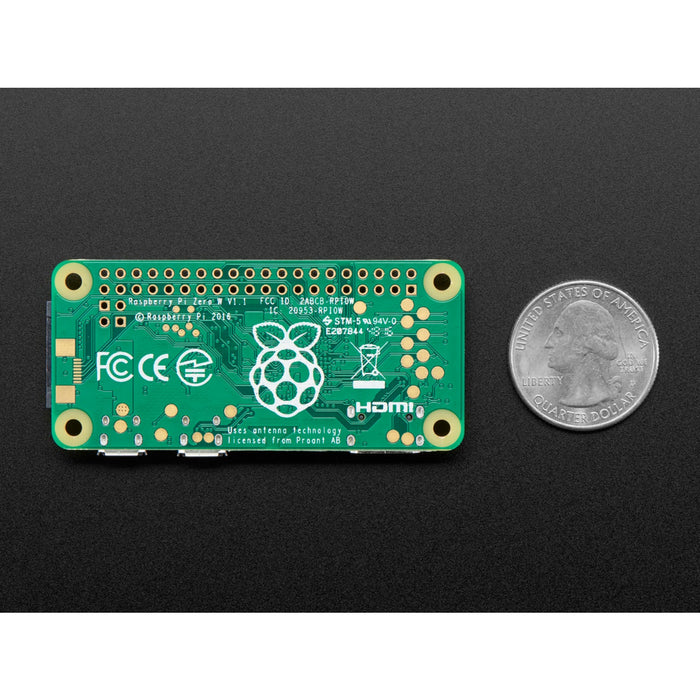

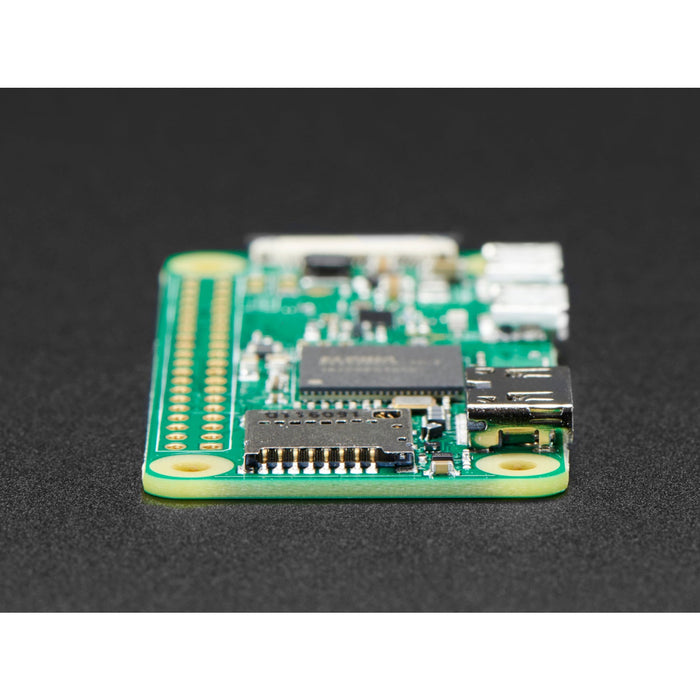

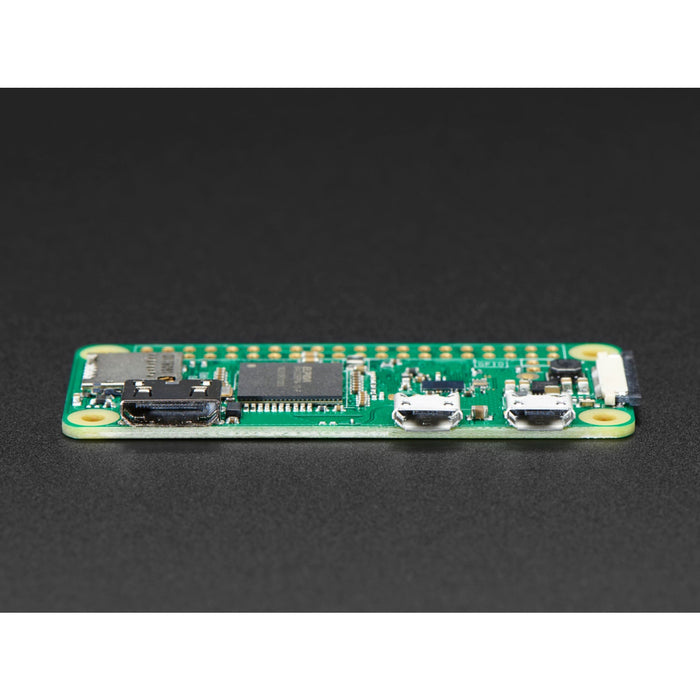

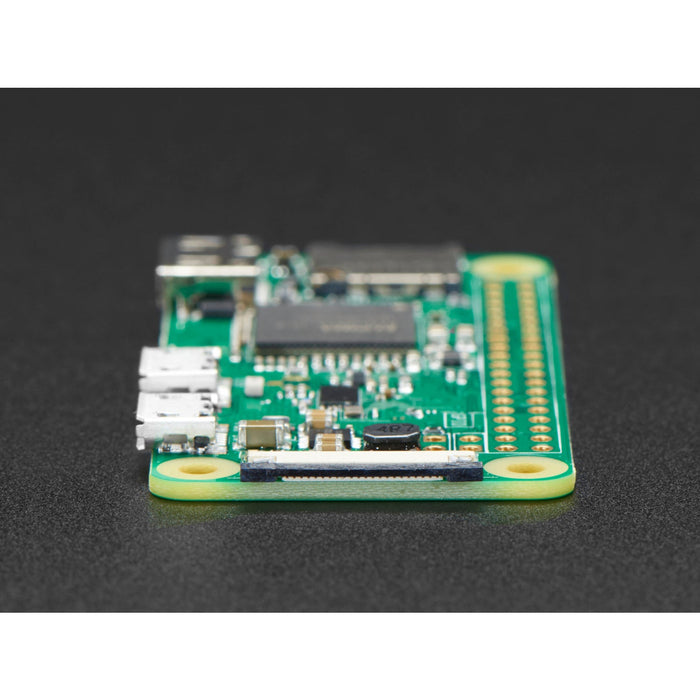

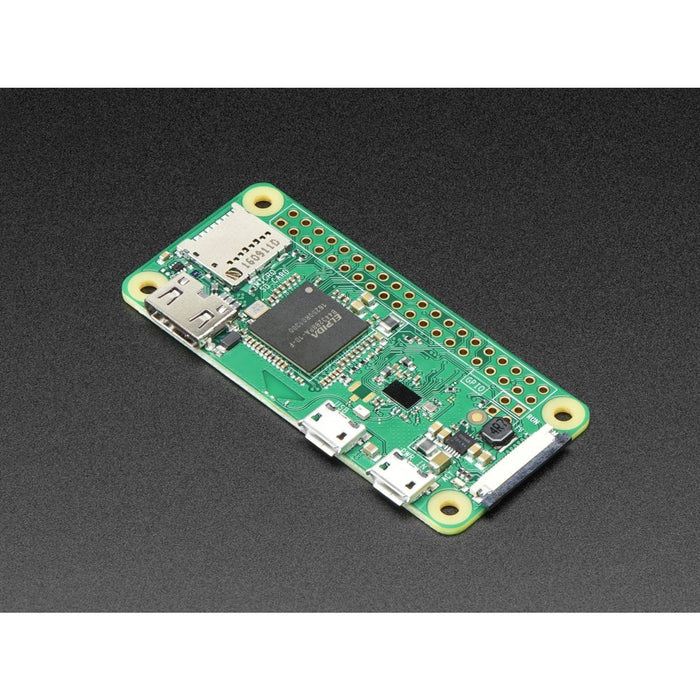

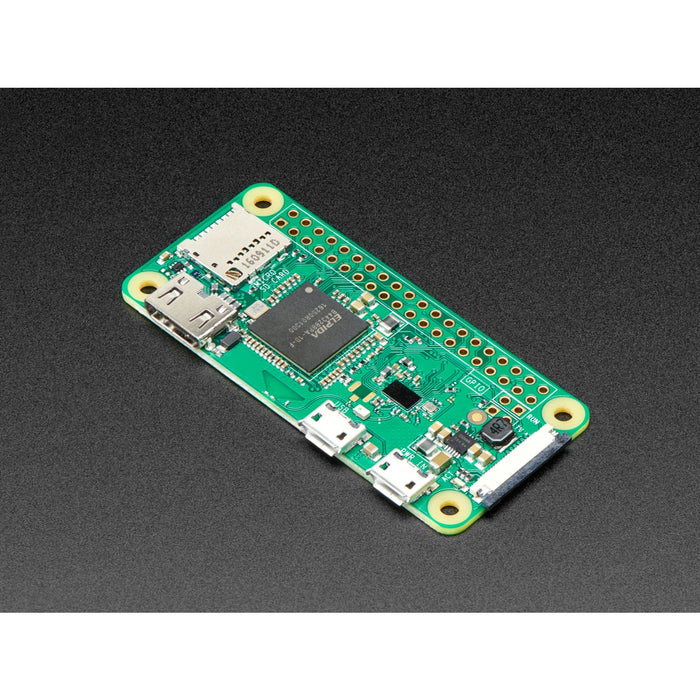

Raspberry Pi Zero W
We have ✅ 3 available of the AF-3400 in our Sydney warehouse. An extra 100 units available with a short lead time.
The Raspberry Pi Zero W is the wireless version of the ultra-compact Raspberry Pi Zero, adding built-in WiFi (802.11 b/g/n) and Bluetooth 4.1 (with BLE) via a BCM43143 chip. It retains the same tiny form factor and low price point as the Pi Zero v1.3, making it an excellent choice for IoT projects, embedded systems, and space-constrained builds.

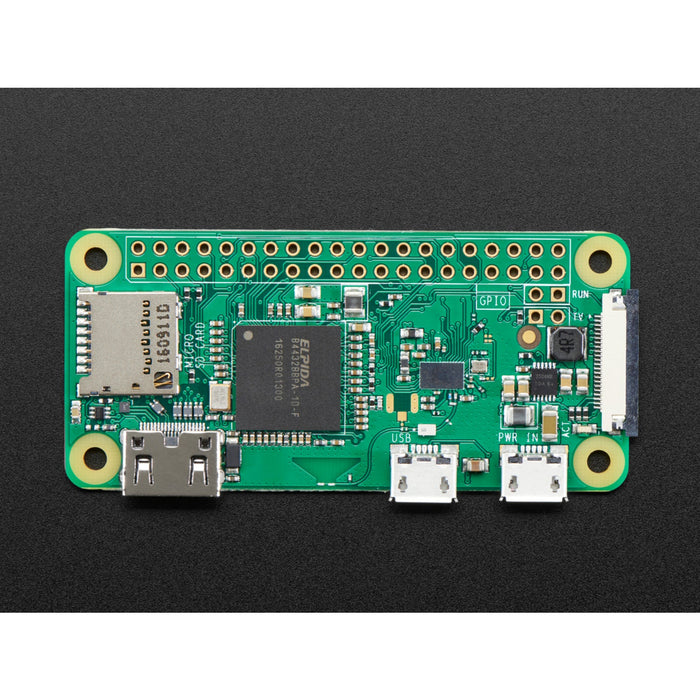

Powered by a single-core 1 GHz ARM11 processor with 512 MB RAM, the Pi Zero W features a mini HDMI port (up to 1080p output), two micro USB ports (one for power, one for USB OTG), a micro SD card slot, and an unpopulated 2×20 GPIO header. It shares the same mounting holes and dimensions as the Pi Zero v1.3, so most existing cases and accessories are fully compatible.
Key Features
- Built-In WiFi – 802.11 b/g/n wireless via BCM43143
- Bluetooth 4.1 + BLE – Wireless connectivity for IoT applications
- 1 GHz ARM11 Processor – Single-core BCM2835 with 512 MB RAM
- Mini HDMI Output – Up to 1080p video and audio
- Micro USB OTG – Connect keyboards, hubs, and USB devices
- Micro SD Card Slot – For operating system and storage
- 40-Pin GPIO Header – Unpopulated, ready for soldering
- Ultra-Compact – Same footprint as Pi Zero v1.3
Ideal For
- IoT and connected device projects
- Headless servers and network-attached services
- Compact embedded systems
- Wearable and portable computing projects
Package Contents
- 1× Raspberry Pi Zero W (board only, no accessories)
