Adafruit DVI Sock for Pico - Works with HDMI Displays

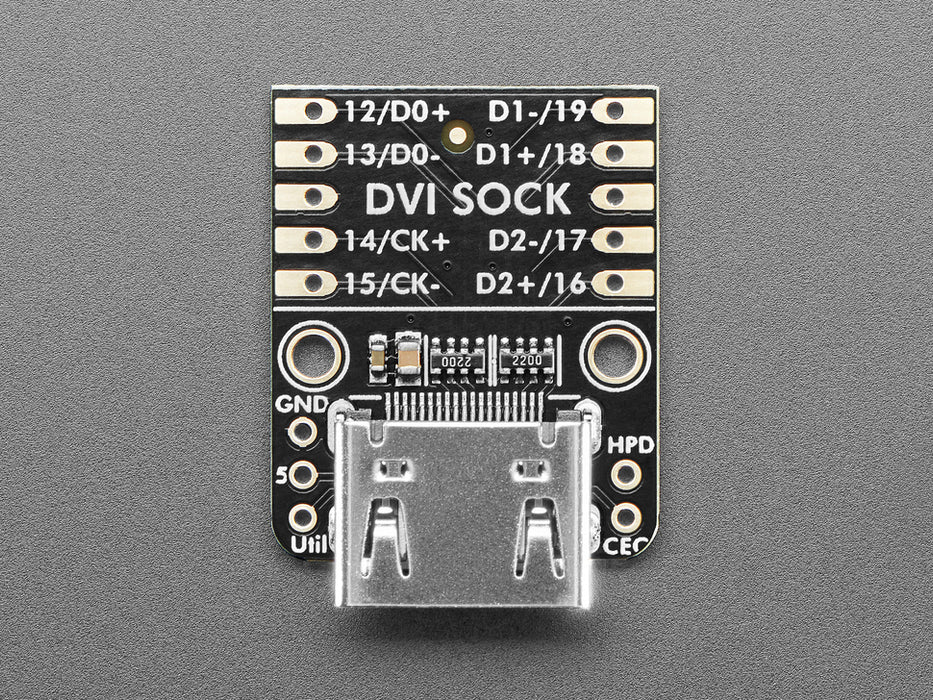

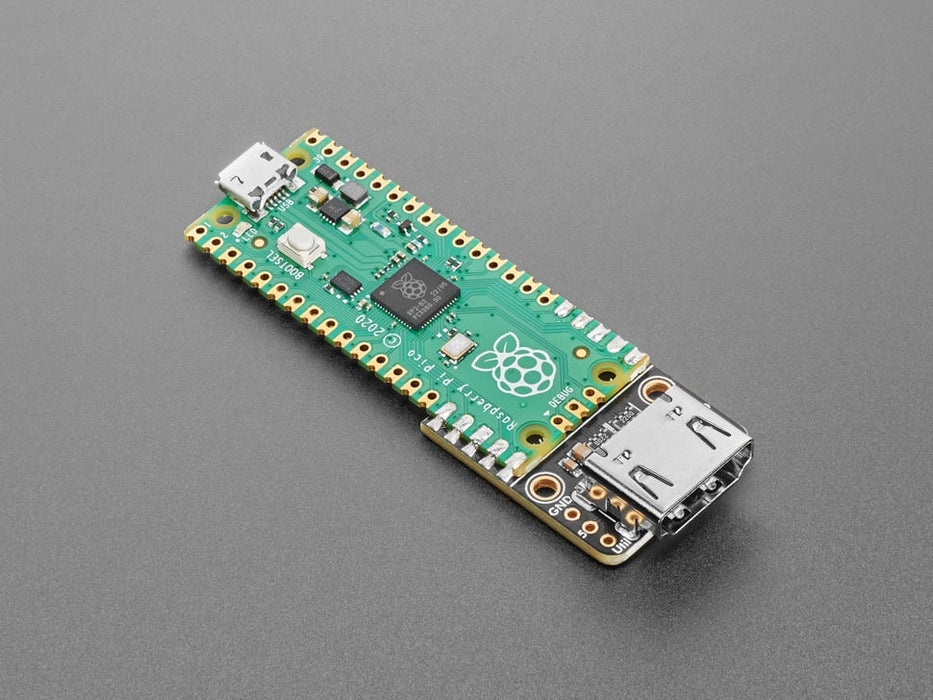

The Adafruit DVI Sock is a compact DVI/HDMI output board designed to solder directly onto the end of a Raspberry Pi Pico or Pico W like a little PCB sock. Using the RP2040's PIO system, it enables your Pico to drive any HDMI monitor or display with digital video output.

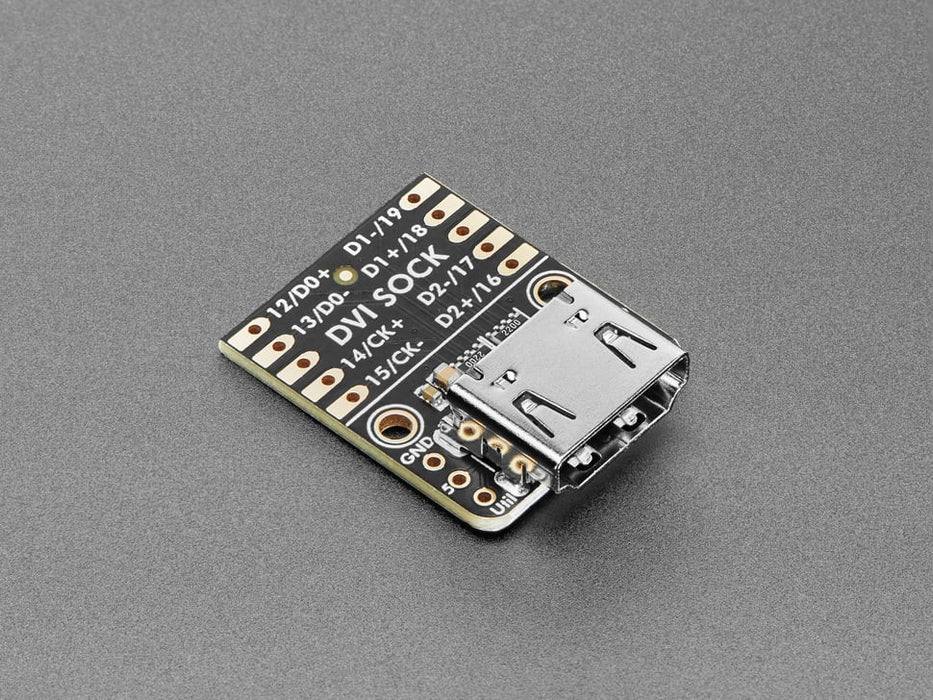

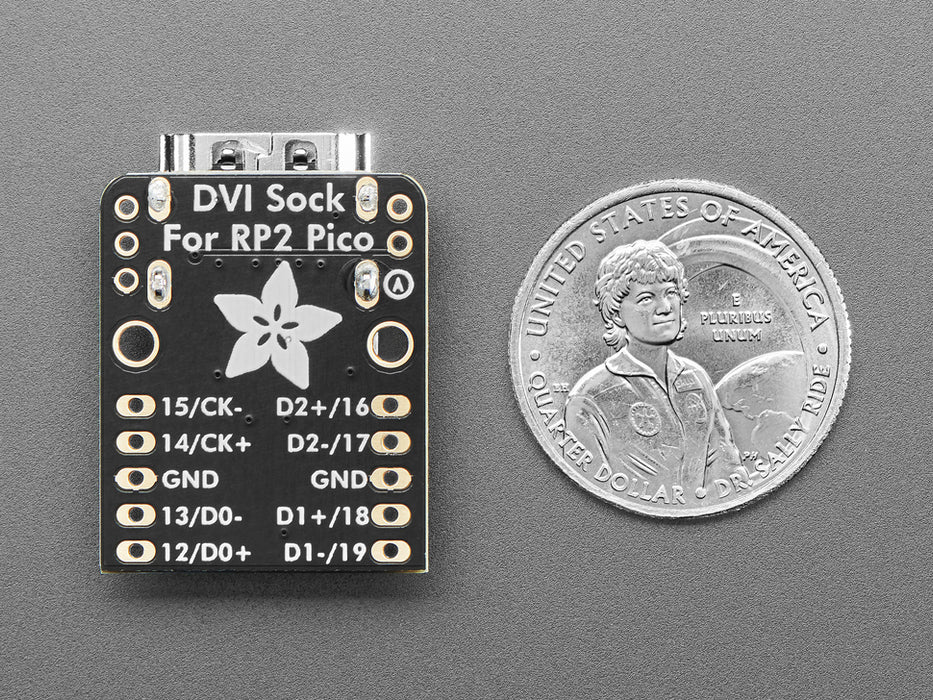

This is a passive breakout with no active components — just an HDMI connector and 220 Ω series resistors. It connects to GPIO 12–19 on the Pico's bottom pins, with additional breakout pads for 5V, GND, Hot-Plug Detect, CEC, and Util pins for advanced use.

Key Features

• Pico Sock Form Factor – Solders directly onto the end of a Raspberry Pi Pico or Pico W

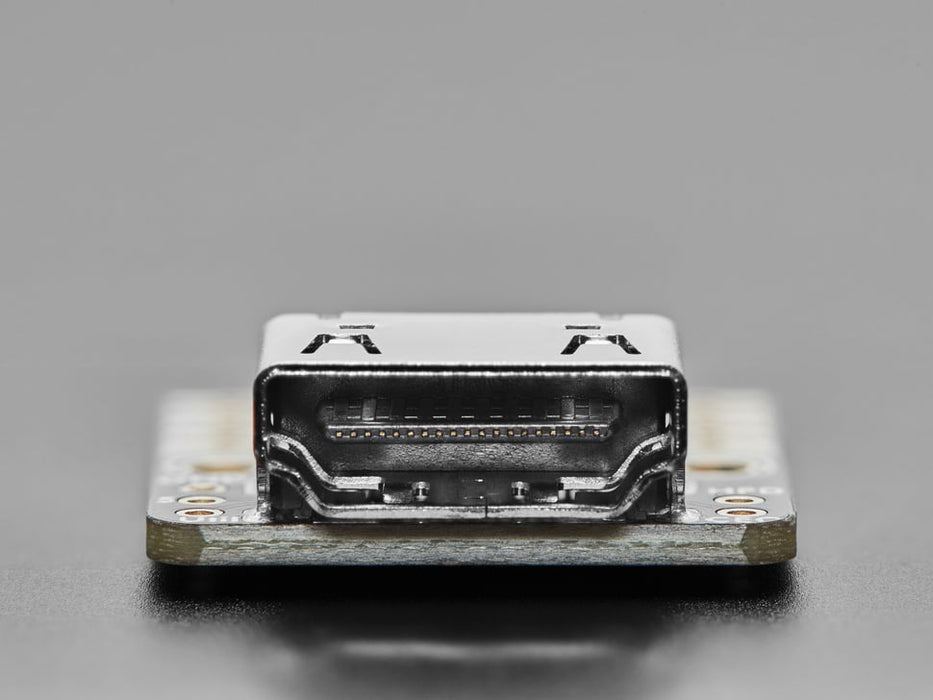

• HDMI/DVI Connector – Standard HDMI port for connecting to any HDMI monitor or display
• 220 Ω Series Resistors – Fitted on all data and clock lines for proper signal termination
• Passive Design – No active components; purely a connector breakout with resistors
• Advanced Breakout Pins – 5V, GND, Hot-Plug Detect, CEC, and Util pins accessible for advanced projects

Pin Connections

• GP12 → D0+
• GP13 → D0−
• GP14 → CK+
• GP15 → CK−
• GP16 → D2+
• GP17 → D2−
• GP18 → D1+
• GP19 → D1−
• Pico GND → GND

Also Available

• DVI Breakout Board (standalone breadboard-friendly version)

Ideal For

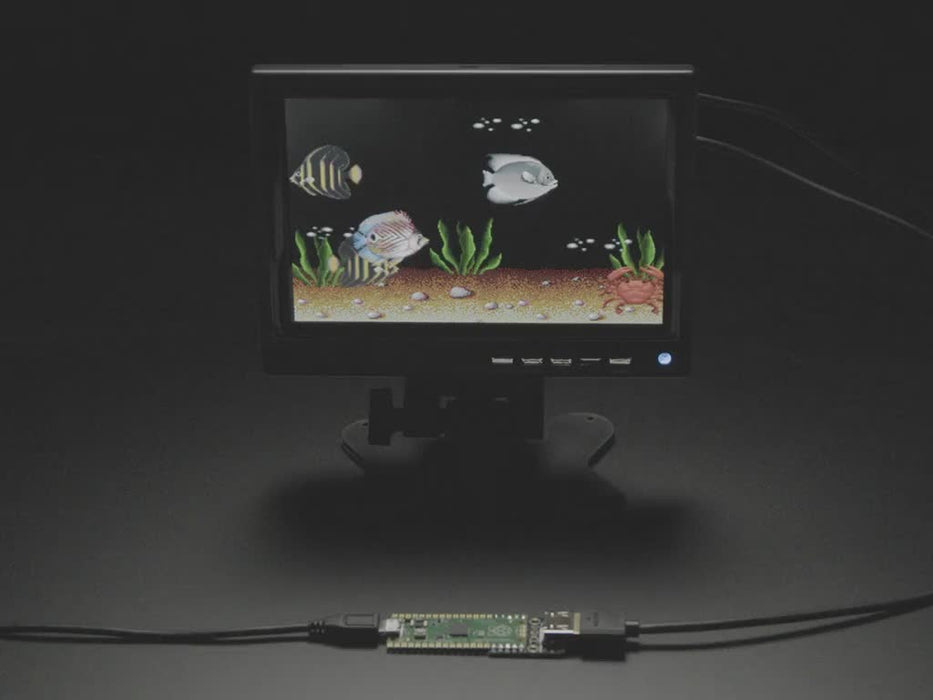

• Adding HDMI video output to Raspberry Pi Pico and Pico W projects
• Digital video generation demos and experiments
• Compact builds where a socketed form factor is preferred over wiring

Package Contents

• 1× Adafruit DVI Sock for Pico
