1.25mm Pitch 8-pin Cable 20cm long 1:N Cable - Molex PicoBlade Compatible
We have ✅ 4 available of the AF-4928 in our Sydney warehouse. An extra 100 units available with a short lead time.

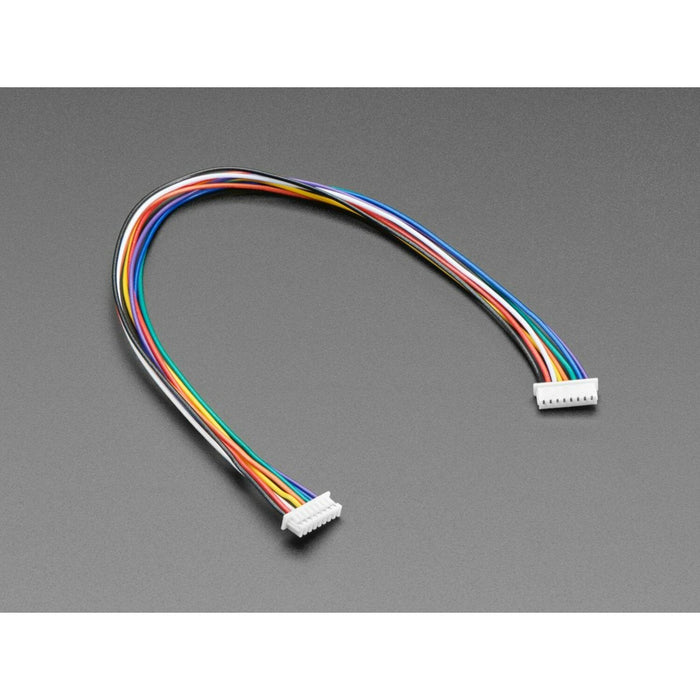

A slim, reliable 1.25 mm pitch cable with 8-pin connectors on both ends and a 20 cm length. The friction-lock connectors provide a secure, satisfying click for lightweight connectivity where standard 0.1" headers or JST PH connectors are too bulky.
This cable uses 1:N reversed wiring, meaning pin 1 on one connector maps to pin 8 on the other, pin 2 to pin 7, and so on. Molex PicoBlade compatible.
Key Features
- 1.25 mm Pitch Connectors – Ultra-slim profile for space-constrained builds
- 1:N Reversed Wiring – Pin order is mirrored from one end to the other
- Friction-Lock Mechanism – Secure, click-in connection that won't pull loose
- 20 cm Length – Convenient short-run cable for internal wiring
- 8 Pins – Suitable for multi-signal connections
- Molex PicoBlade Compatible – Works with standard 1.25 mm pitch connectors
Ideal For
- Connecting breakout boards and sensors with 1.25 mm pitch headers
- Internal wiring in compact enclosures and portable projects
- Replacing bulkier JST PH or 0.1" dupont connections
Package Contents
- 1× 1.25 mm pitch 8-pin cable (20 cm, 1:N wiring)
