Aluminum SMT Heat Sink - 0.27x0.27 square
We have ✅ 6 available of the AF-1043 in our Sydney warehouse.
A compact aluminium heat sink from Cool Innovations, designed for surface-mount components such as SoCs, motor drivers, and other SMT packages. Trusted by engineers for its low cost, ease of use, and excellent thermal performance in a tiny footprint.

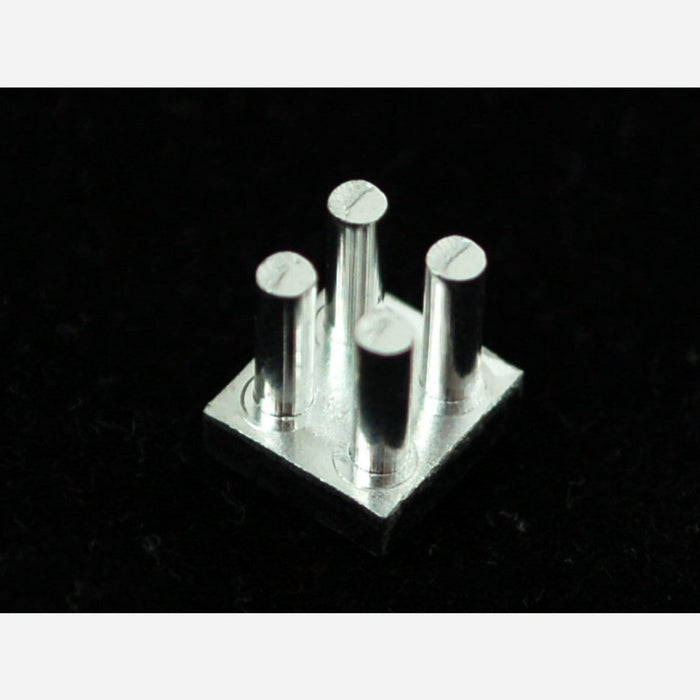

The heat sink features four round fins for increased surface area and can be attached using thermal tape or a small amount of thermal paste (not included). The fins can be filed down if a shorter profile is needed to fit inside an enclosure.
Key Features
- Compact SMT Design – Fits small surface-mount packages including BGAs, TSSOPs, and QFNs
- Four Round Fins – Maximise heat dissipation in a minimal footprint
- Low Thermal Resistance – Approximately 70°C/W in still air
- Trimmable Height – Fins can be filed down to fit tighter enclosures
Specifications
- Base Dimensions – 6.7 × 6.7mm (0.27" × 0.27")
- Total Height – 7.6mm (0.3")
- Material – Aluminium
- Thermal Resistance – Approximately 70°C/W (still air)
- Manufacturer – Cool Innovations
Ideal For
- Surface-mount SoCs and processors
- Motor drivers and voltage regulators
- BGAs, TSSOPs, and QFN packages
- Compact embedded projects with thermal management needs
Note: Thermal tape or thermal paste is not included. You will need to supply your own adhesive thermal interface material.
Package Contents
- 1× Aluminium SMT Heat Sink
