7-Segment Display - 4-Digit (Red)
194 units available with a short lead time.

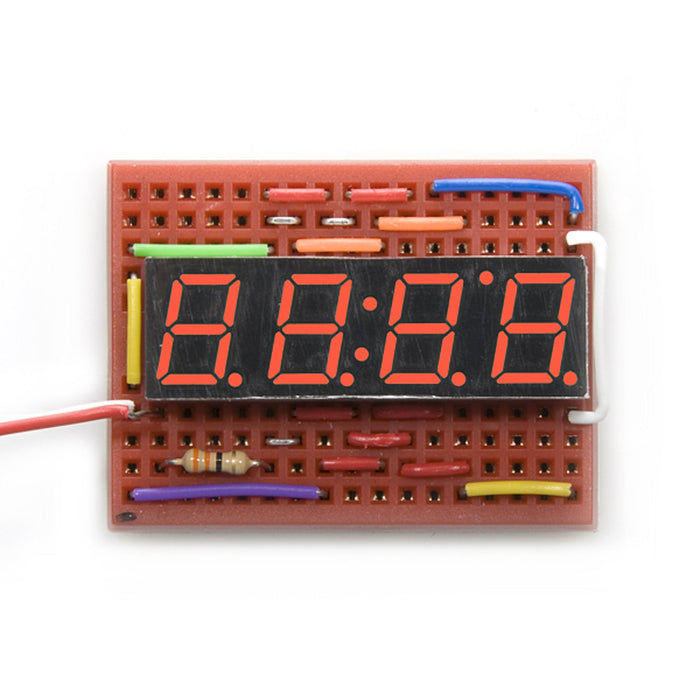

A basic 4-digit 7-segment display in red. This common anode display features one decimal point per digit, plus individually controllable apostrophe and colon points — perfect for clocks, counters, and numeric readouts.
The hardware interface uses sixteen through-hole pins arranged in two rows of eight, making it easy to integrate into breadboard or PCB designs.
Key Features
- 4-Digit 7-Segment – Common anode configuration
- Decimal Points – One per digit, individually addressable
- Apostrophe & Colon – Individually controllable punctuation points
- Forward Voltage – 2.1V DC
- Max Forward Current – 20mA
- Interface – 16 through-hole pins (2 rows of 8)
Specifications
- Overall Display – 40.18 × 12.8 mm (1.58 × 0.50")
- Digit Height – 10mm (0.39")
- Colour – Red
- Configuration – Common anode
Also Available
Resources
The 7-Segment Display - 4-Digit (Red) appears in the following collections:
SKU SF-COM-09483
by SparkFun
