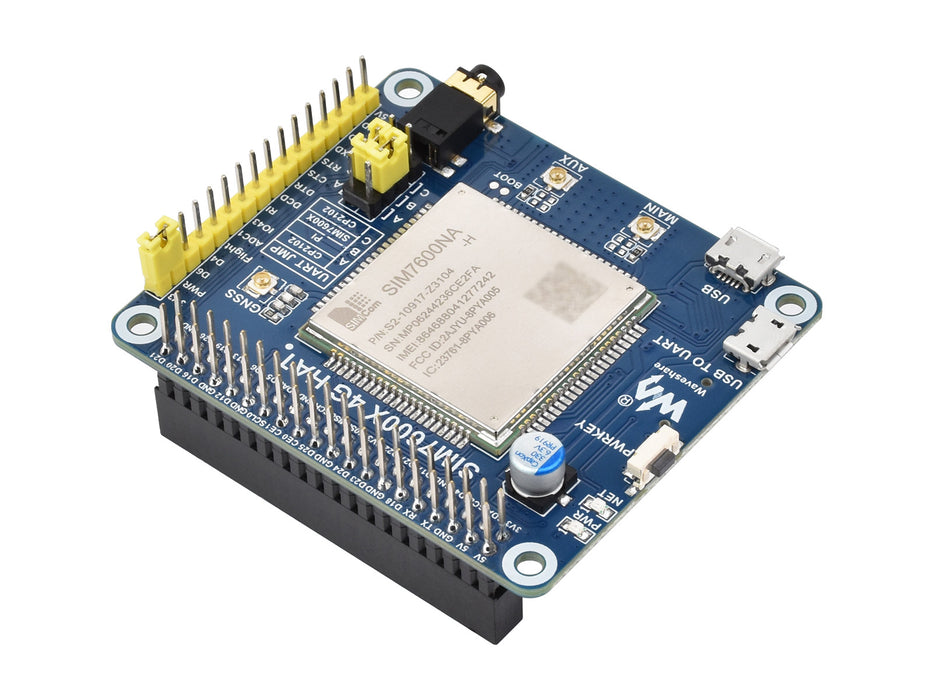

Raspberry Pi 4G HAT SIM7600NA-H – LTE Cat-4, GNSS, North America
100 units will be available shortly.
Unlock the Power of 4G and Precision Positioning with the SIM7600NA-H 4G HAT for Raspberry Pi
Elevate your Raspberry Pi projects with high-speed 4G connectivity and advanced GNSS positioning capabilities using the SIM7600NA-H 4G HAT. Designed specifically for use in North America, this versatile add-on is perfect for professionals and hobbyists looking to incorporate LTE cellular communication and precise location services.
Main Features:

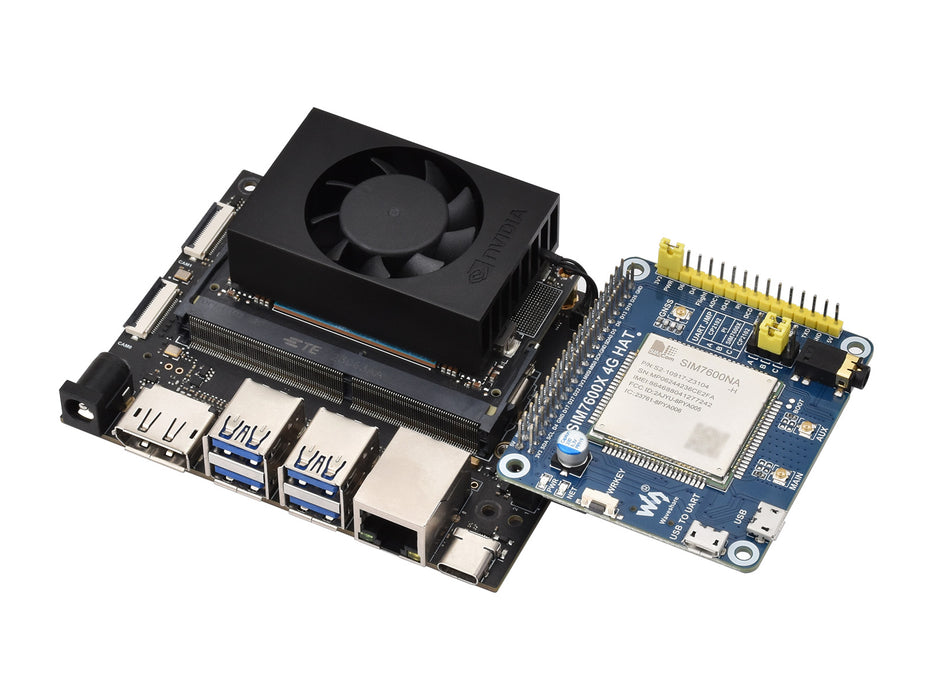

- Broad Compatibility: Features a standard Raspberry Pi 40PIN GPIO extension header, making it suitable for Raspberry Pi series boards, as well as the Jetson Nano.
- Multi-functional Communication: Support for dial-up, telephone call, SMS, TCP/IP, UDP, DTMF, HTTP, FTP, and more.
- Global Navigation Satellite System (GNSS): Integrates GPS, BeiDou, Glonass, GALILEO, and QZSS for multifaceted positioning functionality.

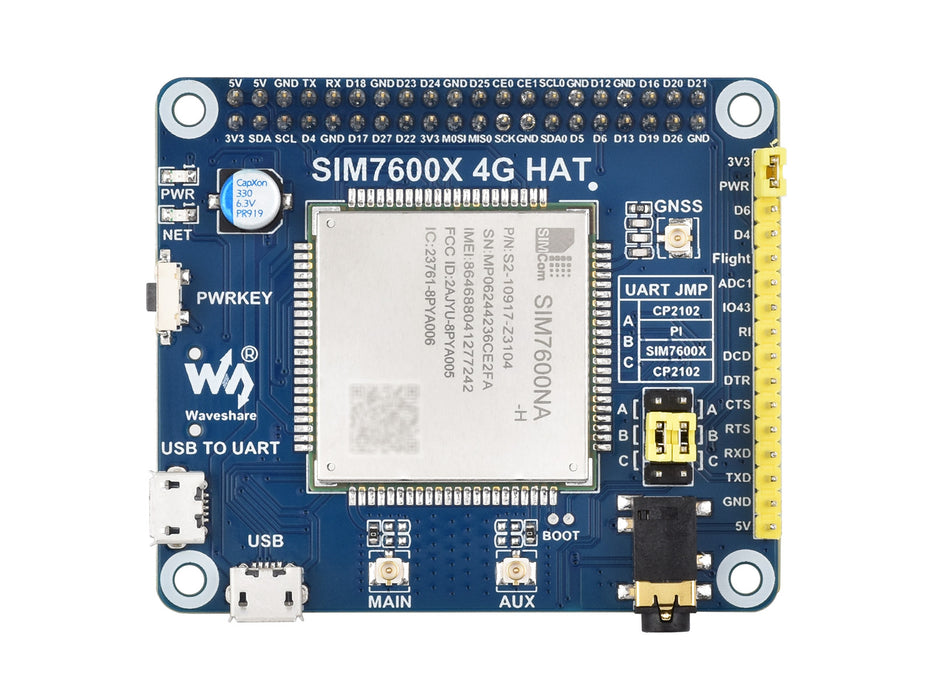

- Convenient Interfaces: Comes with an onboard USB interface for testing AT commands and an onboard CP2102 USB to UART converter for serial debugging.
- Audio Ready: Make calls directly from your project with the onboard audio jack and audio decoder.
- Indicator LEDs: Two LED indicators make monitoring the operating status hassle-free.
- Power and Voltage Flexibility: Onboard voltage translator allows for operation at 3.3V or 5V, configurable via a resistor pad.
- High-Speed Data Transfer: Experience LTE Cat-4 data rates, with uplink speeds up to 50Mbps and downlink speeds up to 150Mbps*.
- AT Command Control: Easy control via AT commands, consistent with 3GPP TS 27.007, 27.005, and V.25TER command set standards.
Technical Specifications:
- LTE Frequency Band Support for North American networks, ensuring reliable and extensive coverage.
- GNSS Receiver Sensitivity: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou), for quick and accurate location fixes.
- SMS and Audio Features: Manage text communication and calls with ease.
- Expanded Power Supply Options: 5V input with a configurable operating voltage.
Dimensions:
- Size: 56mm × 65mm, a compact design that fits neatly on top of a Raspberry Pi.
Please note: This product is not permissible to ship or provide tech support to certain countries/regions as per module manufacturer SIMCOM's embargo policy.
What's Included:
- SIM7600NA-H 4G HAT Module

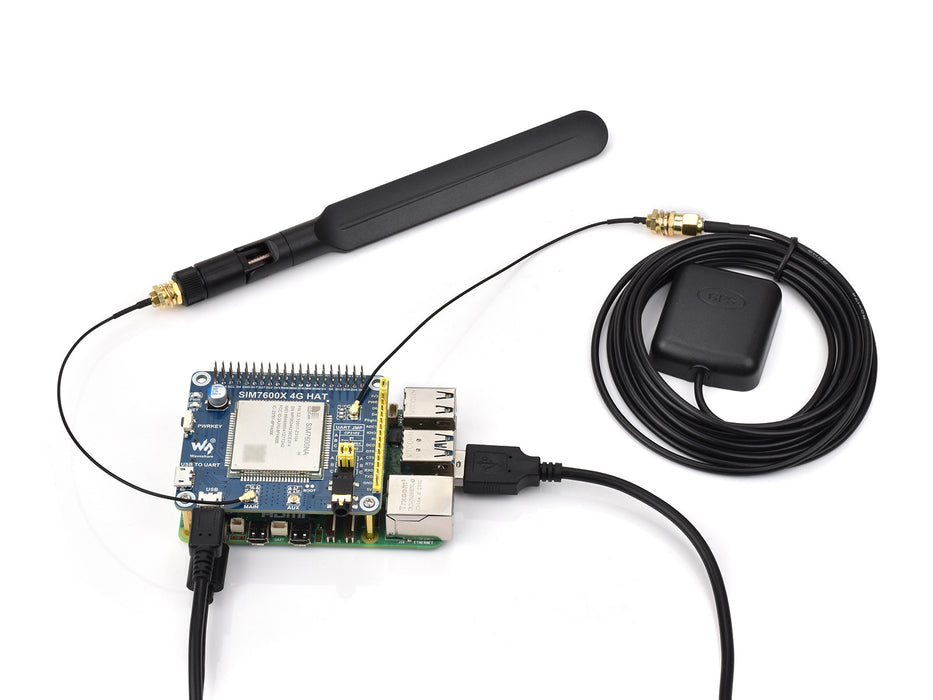

- Multi-band SMA Antenna for reliable 4G connection
- GPS External Antenna for improved positional accuracy
- USB Cables for power and data connectivity
- Necessary screws pack for quick and easy assembly
*Note: Speeds are theoretical maximums and real-world speeds may vary based on network conditions.
Bring high-speed internet and location services to your next IoT or embedded project with the SIM7600NA-H 4G HAT. Find extensive documentation and resources, including example applications for Raspberry Pi, Jetson Nano, and others, on the manufacturer's WIKI at www.waveshare.com/wiki/SIM7600NA-H4GHAT.
Advance your technology today with this powerful addon and let your Raspberry Pi reach new heights of connectivity and precision.
