STEMMA QT / Qwiic JST SH 4-Pin Cable - 300mm long
We have ✅ 5 available of the AF-5384 in our Sydney warehouse. An extra 100 units available with a short lead time.

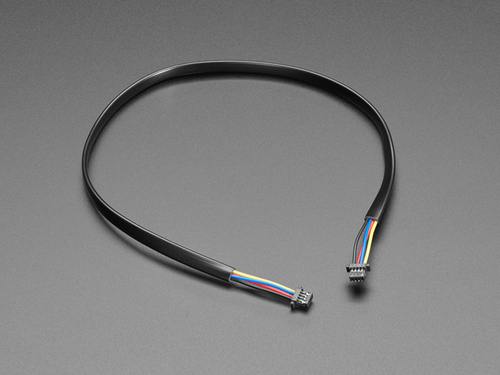

This 300 mm (11.8") 4-wire cable is fitted with JST-SH female 4-pin connectors on both ends. The 1 mm pitch JST-SH connectors are more compact than the chunkier 2 mm pitch JST-PH, while still providing a secure latching connection that is easy to insert and remove.
Compatible with both STEMMA QT and Qwiic ecosystems, this cable provides a quick plug-and-play connection for I2C sensors, drivers, and breakout boards. Data wires are interleaved with ground and power to reduce cross-talk.
Key Features
- JST-SH 4-Pin Connectors – 1 mm pitch, female connectors on both ends
- STEMMA QT / Qwiic Compatible – Works with both ecosystems
- Latching Connectors – Secure connection with easy insertion and removal
- Reduced Cross-Talk – Data wires interleaved with ground and power
Wire Colour Map
- Red – 3.3 V DC power
- Black – Ground
- Blue – I2C SDA (data)
- Yellow – I2C SCL (clock)
Specifications
- Length – 300 mm
- Connector – JST-SH 4-pin female (both ends)
- Pitch – 1 mm
- Wires – 4
Ideal For
- Connecting STEMMA QT and Qwiic I2C devices
- Sensor and breakout board wiring
- Prototyping with I2C peripherals
Resources
Package Contents
- 1× STEMMA QT / Qwiic JST-SH 4-pin cable (300 mm)
