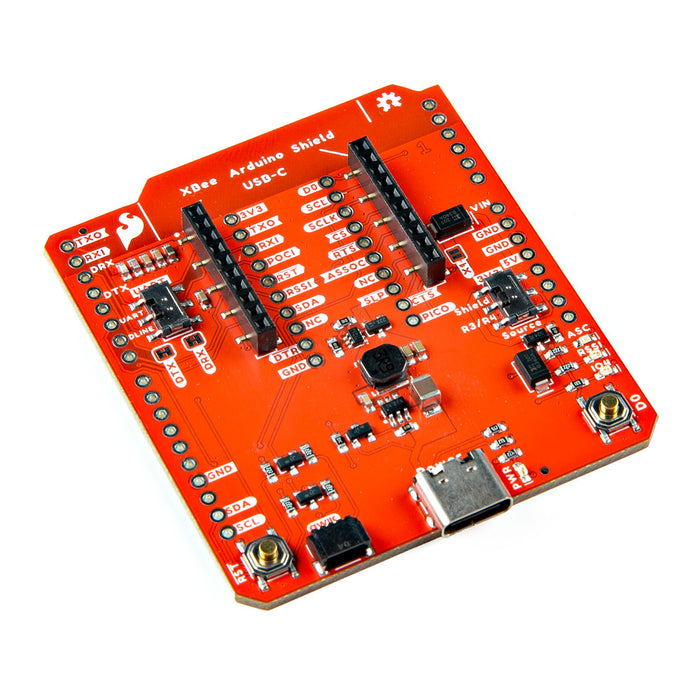

SparkFun Digi XBee® Arduino Shield - USB-C (Qwiic)
36 units will be available shortly.
The Sparkfun Digi XBee® Arduino Shield is your gateway to a world of wireless innovation on your favorite Arduino device. This shield integrates Digi's cutting-edge XBee 3 Low-Power LTE-M/NB-IoT and Digi XBee RR Pro modules (or any existing through-hole Digi XBee module) with your trusty Arduino, empowering you to build wireless projects that reach further and do more than ever. Whether you're a seasoned developer or a curious beginner, the SparkFun Digi XBee® Arduino Shield - USB-C (Qwiic) empowers you to bring your wildest IoT ideas to life.
It breaks out the functionality of your XBee module and adds the ability to connect to the cellular network and GNSS. This shield includes a USB-C connector, a Qwiic connector for all those lovely I2C sensors, as well as a Reset button and a user-defined D0 button, the ability to power your board from the R3/R4 board, and UART selection.
Digi Remote Manager® allows users to configure and control devices from a central platform easily. Built-in Digi TrustFence® security, identity, and data privacy features use multiple control layers to protect against new and evolving cyber threats. Standard XBee API frames and AT commands, MicroPython, and Digi XCTU® simplify setup, configuration, testing, and adding or changing functionality.
This shield is populated with all components, as shown in the images and schematic, but it does not have headers installed. We recommend the Arduino R3 Stackable Header Kit.
The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.
Features:
- On-board Digi XBee 3 micro form factor socket
- Configurable via AT command
- AP63203 Buck converter (up to 2A)
- USB-C connector for power
- 1x Qwiic connector
- 3 indicator LEDs
- Reset and D0 buttons
- Power selection features
- Serial selection
- Arduino R3 footprint
Documents:
Copyright Notice: Digi XBee® and XBee® are registered trademarks of Digi International Inc.
