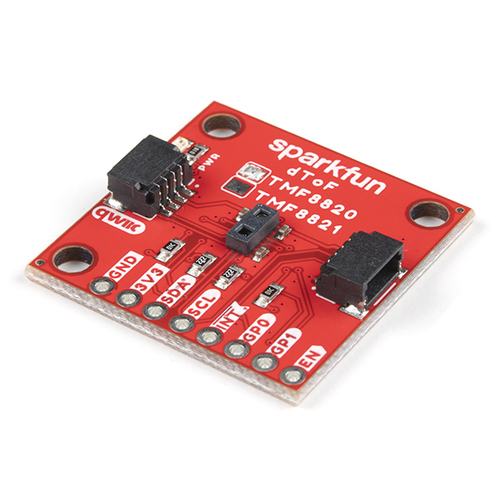

SparkFun Qwiic dToF Imager - TMF8820
116 units available with a short lead time.
A direct time-of-flight (dToF) sensor from AMS that measures distances up to 5 metres using SPAD (Single Photon Avalanche Photodiode) and histogram technology. The TMF8820 provides 3×3 multi-zone output with multi-object detection and a dynamically adjustable field of view up to 63° diagonal — all processed on-chip and delivered over I2C.
The onboard optical filter blocks ambient light, enabling reliable distance measurements in both dark and bright sunlight conditions. Connect via SparkFun's Qwiic system for solderless setup, or use the broken-out 0.1" header pins for breadboard prototyping.
Key Features
- 5m Detection Range – 10mm to 5000mm at up to 30Hz
- 3×3 Multi-Zone – Configurable zones with multi-object detection
- Adjustable Field of View – Up to 63° diagonal
- Class 1 Laser – 940nm VCSEL light source (eye-safe, IEC 60825-1 2014)
- On-Chip Processing – Distance and confidence values output directly
- Sunlight Rejection – High-performance optical filter and algorithm
- Qwiic / I2C Interface – Two Qwiic connectors, I2C address 0x41
- 2.7V to 3.6V Operation – 8µA standby, 57mA active
- Configurable Jumpers – Power LED and I2C pull-ups
- 2× GPIO + Enable Pin – Broken out as PTH pads
- Board Size – Qwiic Standard 1.0" × 1.0" (25.4mm × 25.4mm)
Ideal For
- Camera autofocus (Laser Detect Autofocus)
- Presence detection for computing devices
- Object detection and collision avoidance in robotics
- Industrial light curtain applications
Package Contents
- 1× SparkFun Qwiic dToF Imager - TMF8820
