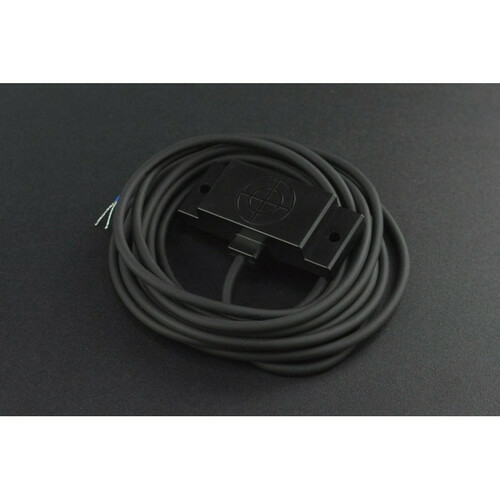

Capacitive Proximity Sensor (1-10 mm)
37 units available with a short lead time.
A capacitive proximity sensor with an adjustable detection range of 1–10 mm, capable of detecting both metallic and non-metallic objects. Unlike inductive sensors that only respond to metals, this capacitive sensor detects anything with sufficient dielectric properties — including plastics, wood, glass, liquids, and more.
Housed in a fully enclosed PBT plastic shell with IP67 waterproof and dustproof protection, it operates on a 10–30V DC supply and outputs a PNP normally-open (high-level) signal. Built-in short circuit, overload, and reverse polarity protection make it reliable for industrial and hobbyist applications alike.
Key Features
- Detects Metals & Non-Metals – Capacitive sensing works with plastics, wood, glass, liquids, and metals
- Adjustable Range – 1–10 mm for non-metals, up to 20 mm for metals
- IP67 Rated – Waterproof and dustproof PBT plastic enclosure for indoor or outdoor use
- Built-In Protection – Short circuit, overload, and reverse polarity protection
- Status Indicator – LED provides real-time detection feedback
- Fast Response – Less than 1.5 ms response time with 50 Hz switching frequency
Specifications
- Power Supply – DC 10–30V
- Detection Distance – 1–10 mm adjustable (up to 20 mm for metal, 10 mm for non-metal)
- Output Mode – PNP normally open (high-level output)
- Switching Frequency – 50 Hz
- Response Time – <1.5 ms
- Switch Hysteresis – <15%
- Repeatability – <5.0%
- Operating Temperature – −25°C to +70°C
- Protection Rating – IP67
- Dimensions – 50 × 20 × 10 mm
- Wiring – Brown (V+), Blue (V−), Black (Signal Output)
Ideal For
- Object detection and presence sensing
- Mechanical automation and robotics
- Liquid level detection through non-metallic containers
- Security equipment and access control
Package Contents
- 1× Capacitive Proximity Sensor
- 1× Screwdriver (for adjustment)
