DC-DC Multi-output Buck Converter (3.3V/5V/9V/12V)

Multiple-output DC–DC converters are essential in a multitude of applications where different DC output voltages are required.

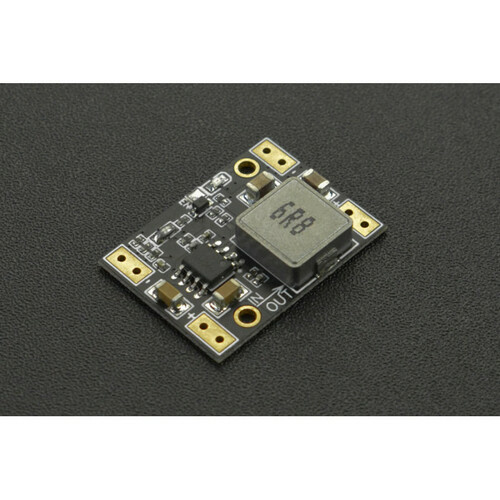

This DC-DC step-down voltage power module converts 7.5V~30V input to an output of 3.3V/5V/9V/12V (default to 5V), which can be selected by short-circuiting the corresponding pads on the back. It withstands up to 5A load current with suitable heat dissipation and has 70°C over-temperature and overload protections. Besides, there is an onboard LED indicator that shows a solid red light when everything works fine and goes out when the protection mechanism is triggered and the voltage automatically drops to 0.1V.

The multi-voltage buck power module can be used in power control systems for LEDs, robots, drones, servos, low-power motors, and so on.

Instruction

This module outputs 5V by default and the corresponding 5V solder pad is short-circuited. To output other voltages, for instance, 3.3V, please disconnect the 5V pad and short circuit the 3.3V solder pad.

Note: Since this is a step-down converter, the input voltage should be larger than the output, and it works better with a voltage difference of 2V and above.
