Adafruit Slider Trinkey - USB NeoPixel Slide Potentiometer
77 units available with a short lead time.

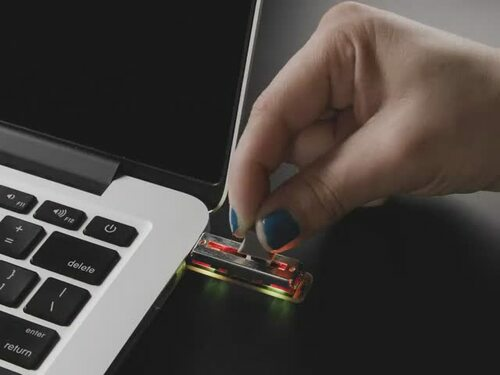

The Adafruit Slider Trinkey is a tiny USB A board built around the ATSAMD21 microcontroller with a pre-soldered 35 mm slide potentiometer and two NeoPixel LEDs. Plug it into any USB A port on your computer and program it as a volume control, brightness adjuster, colour picker, or any custom slider input device.
The board supports CircuitPython and Arduino, and over USB it can appear as a serial console, MIDI device, or HID keyboard/mouse — making it incredibly versatile for custom input projects. A capacitive touch pad and reset button round out the feature set.
Key Features
- ATSAMD21E18 Processor – 48 MHz Cortex M0+ with 256 KB flash and 32 KB RAM
- USB A Plug – Plugs directly into any computer's USB A port, no cable needed
- 35 mm Slide Potentiometer – 10 kΩ analog input, pre-soldered and ready to use
- 2× NeoPixel LEDs – Reverse-mount RGB LEDs for colour feedback
- Capacitive Touch Pad – One additional touch input
- Native USB – Serial, MIDI, and HID (keyboard/mouse) support
- CircuitPython & Arduino – Full support with existing NeoPixel and FreeTouch libraries
Ideal For
- Custom volume and brightness controls
- Colour pickers and parameter adjusters
- MIDI faders and music production tools
- Macro input devices and productivity controls
Package Contents
- 1× Adafruit Slider Trinkey (with pre-soldered slide potentiometer)
