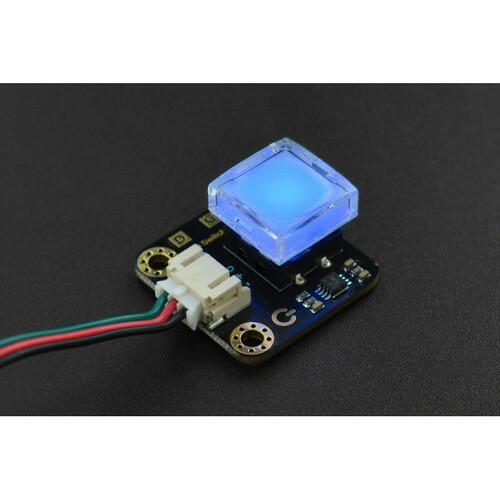

Gravity: LED Switch - Blue

Gravity: LED Switch - Blue

132 units will be available shortly.

Express post shipping available (product is on backorder)

This is a simple LED-illuminated self-lock switch button. It’s just like a basic switch button, but it lights up color(red/yellow/green/blue/white) when pressed down, which gives you visual feedback. These little buttons can be used with micro: bit to realize various fun interactive projects, such as switch, backlight keyboard, music player panel, and recording control panel.

Note: The module comes with self-lock function. When the button is pressed down, the module outputs High, and the LED lights up. When being pressed again, the module outputs Low and the LED turns off.

Connection Diagram


Features
  • Internal LED turns On when the button is pressed down

    • Specification
  • Operating Voltage: +3.3-5V (3.3V is recommended)
  • Output: digital
  • Connector: PH2.0-3P
  • Dimension: 27×26.5mm
  • Colors Available: red, yellow, green, blue, white

    • Documents
  • Product wiki

    • Shipping List
  • Gravity: LED Switch x1
  • Digital Sensor Connector x1

    • The Gravity: LED Switch - Blue appears in the following collections:

    SKU DF-DFR0789-B
