RP2350 Dual-core CAN Development Board with XL2515 Controller
100 units will be available shortly.

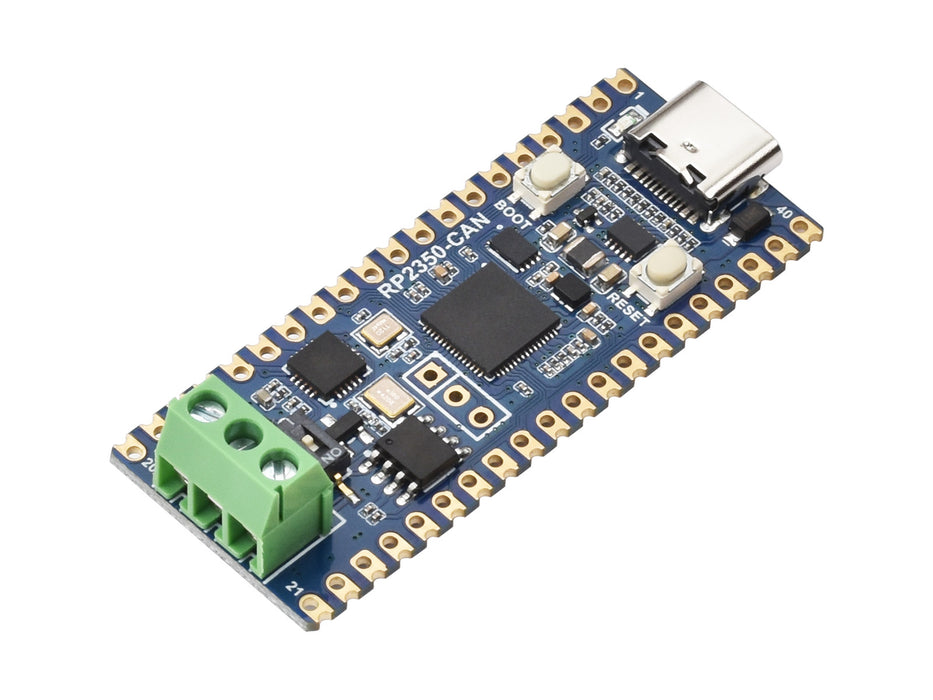

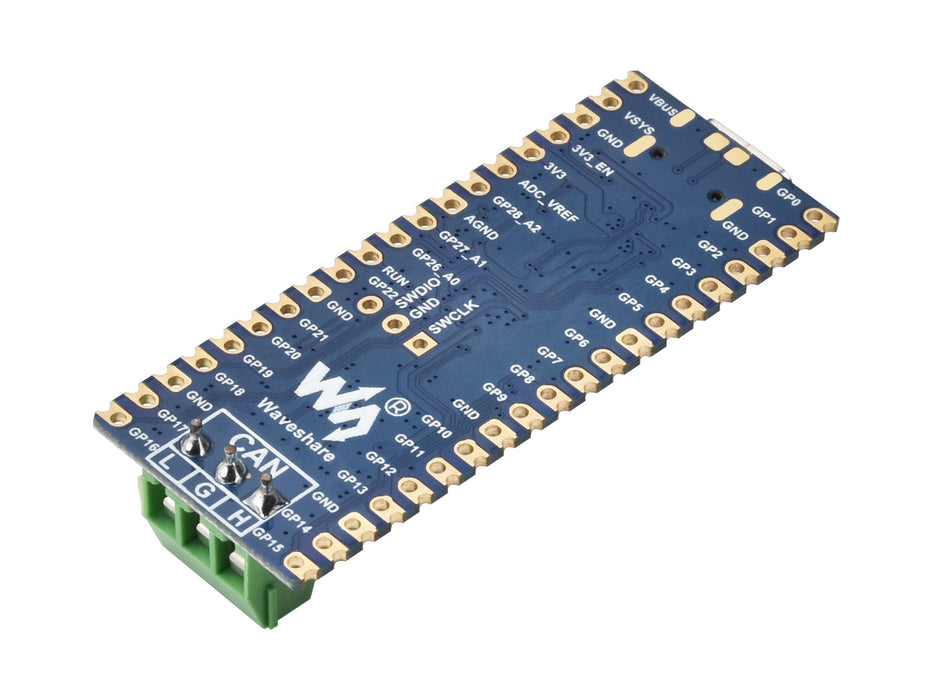

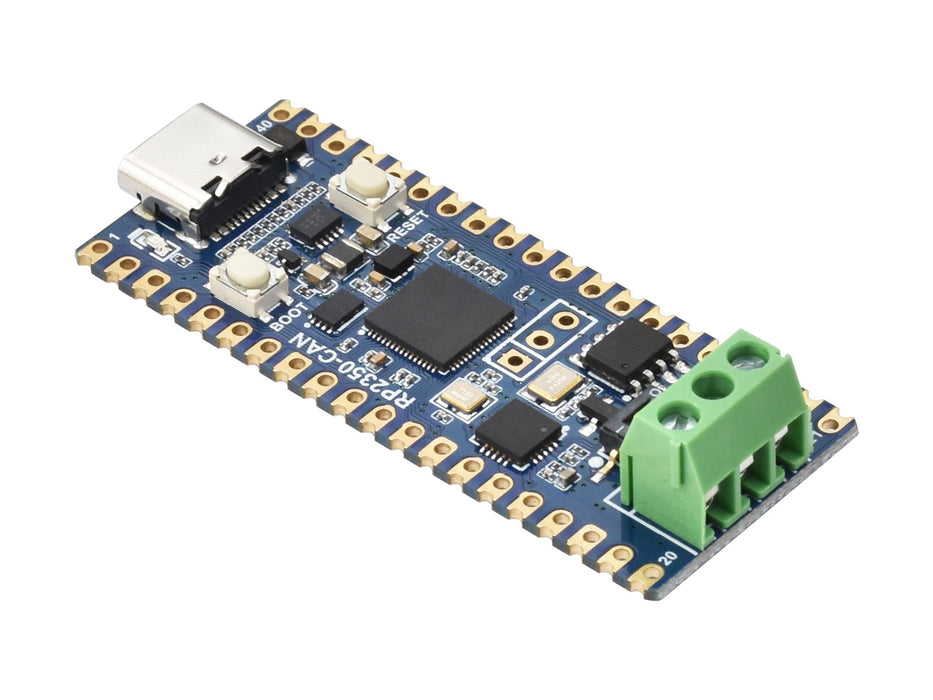

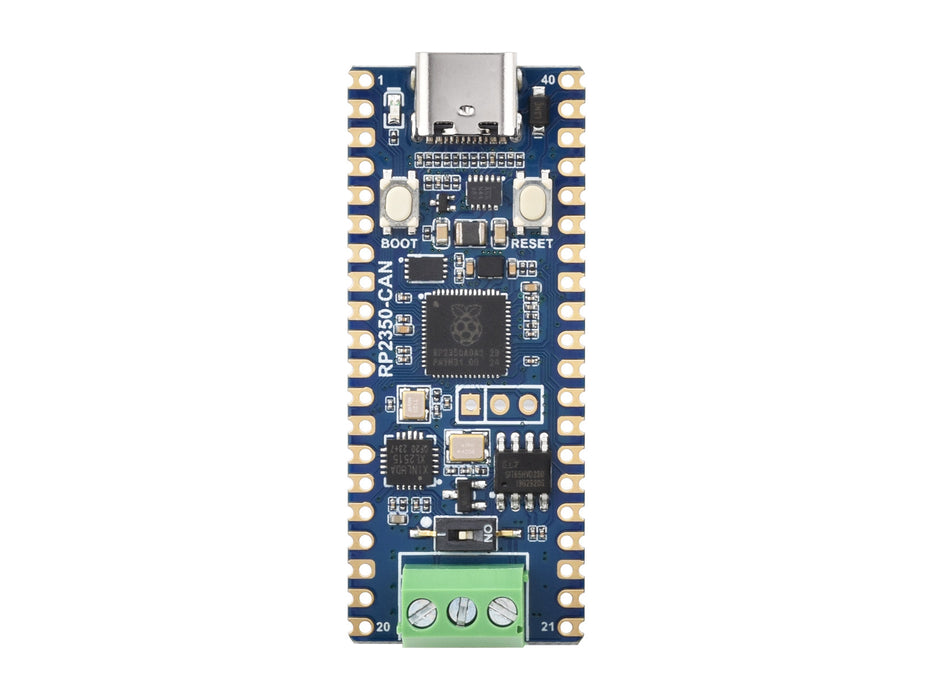

Waveshare RP2350 CAN Development Board
Unleash the power of robust embedded systems with the cutting-edge Waveshare RP2350 CAN Development Board. Crafted meticulously for those who demand precision and reliability in their projects, this board is powered by the Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller. With an onboard XL2515 CAN Controller, it's the perfect platform for your next CAN (Controller Area Network) application.
Key Features:
- High-Performance Microcontroller: Built around the RP2350A chip from the United Kingdom, this board boasts a dual-core Arm Cortex-M33 and dual-core Hazard 3 RISC-V processor, soaring up to a 150 MHz operating frequency for superb computational power.
- Memory Capacity: Equipped with 520KB SRAM and a generous 4MB onboard Flash memory.
- Onboard CAN Interface: Central to its design is the XL2515 CAN controller, ensuring full V2.0B CAN specification support at a communication speed reaching 1 Mbps and with the reliability of the SIT65HVD230 transceiver.
- Say Goodbye to Wires: Offering a modern USB Type-C connector, programming is a breeze, supporting both USB 1.1 hosts and slave devices.
- Efficient Power Management: Embedded with an MP28164 high-efficiency buck-boost DC-DC chip to ensure stable operation.
- Interface Richness: Custom projects come to life with 2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 16 x PWM channels, and a temperature sensor.
- Programming Ease: Enjoy drag-and-drop programming, along with support for C/C++ and MicroPython.

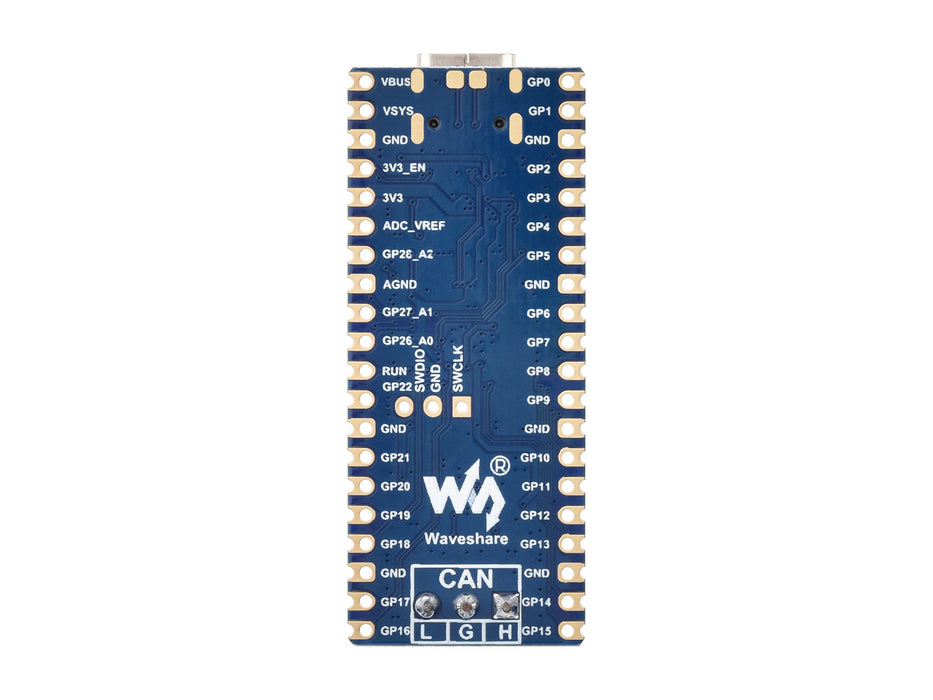

- Hassle-Free Expansion: Compatible with the standard Raspberry Pi Pico module ecosystem, and featuring GPIO headers with 26 multi-function pins for endless possibilities.
- Extra Features: The board includes user LED, BOOT and RESET buttons, a Debug pin array, and measures a compact weight of just 0.005 kg.
The Waveshare RP2350 CAN Development Board stands as an industrial-grade platform, ready for projects in automation, automotive systems, and IoT. It combines the flexibility of open-source software with the reliability of professional-grade hardware, ensuring your CAN-based applications run smoothly and effectively.
Expand your horizons with the included comprehensive SDK, development resources, and tutorials available at www.waveshare.com/wiki/RP2350-CAN, providing all the guidance needed to kickstart your journey.
In the box: Every purchase of the RP2350-CAN comes with the development board x1, getting your projects up and running without delay.
Empower your development capabilities with the Waveshare RP2350 CAN Development Board – where sophistication meets versatile functionality.
