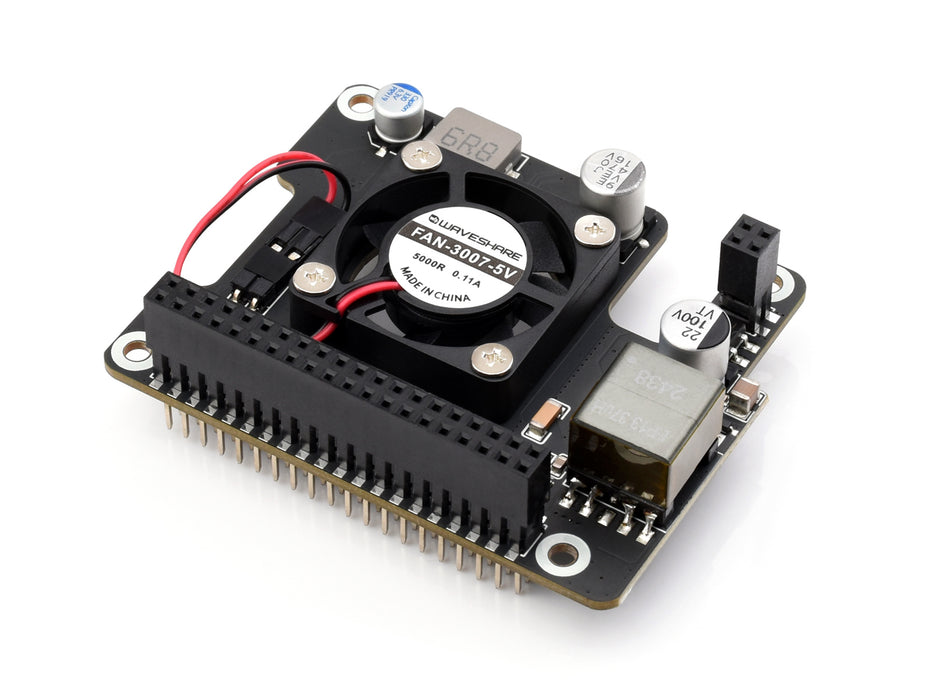

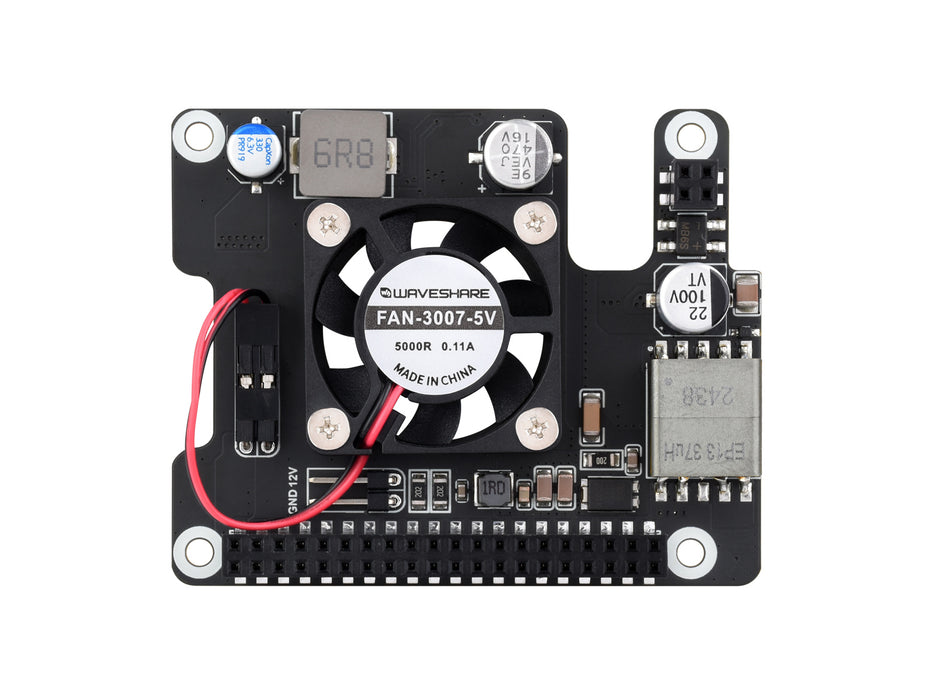

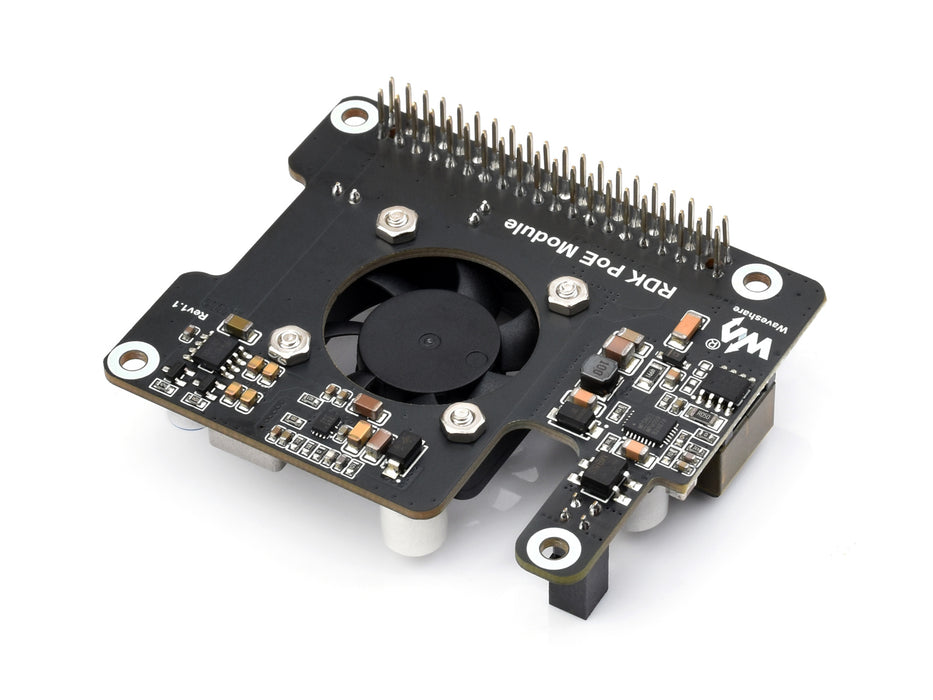

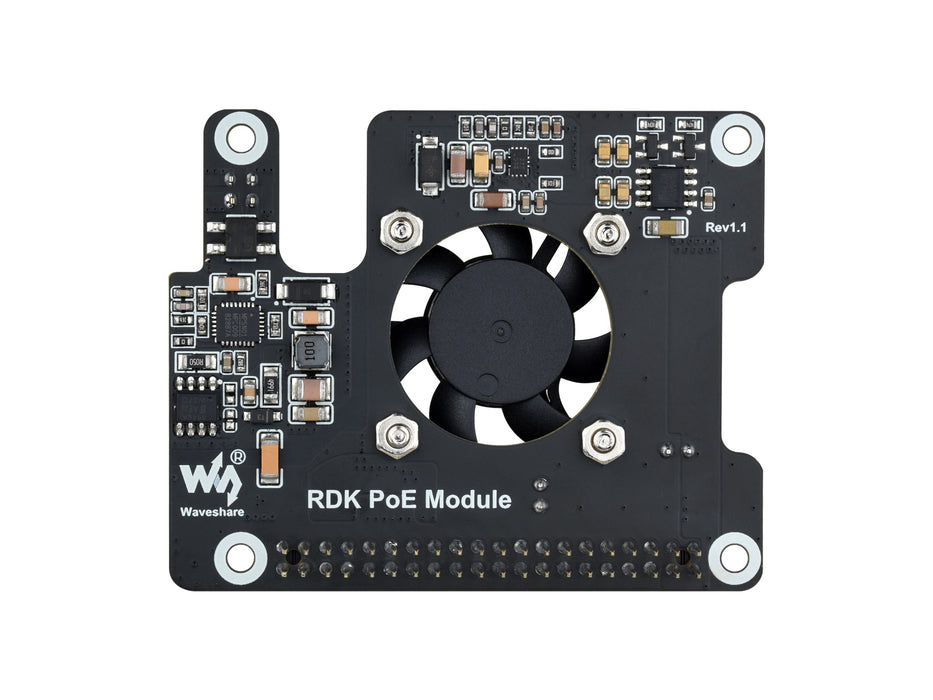

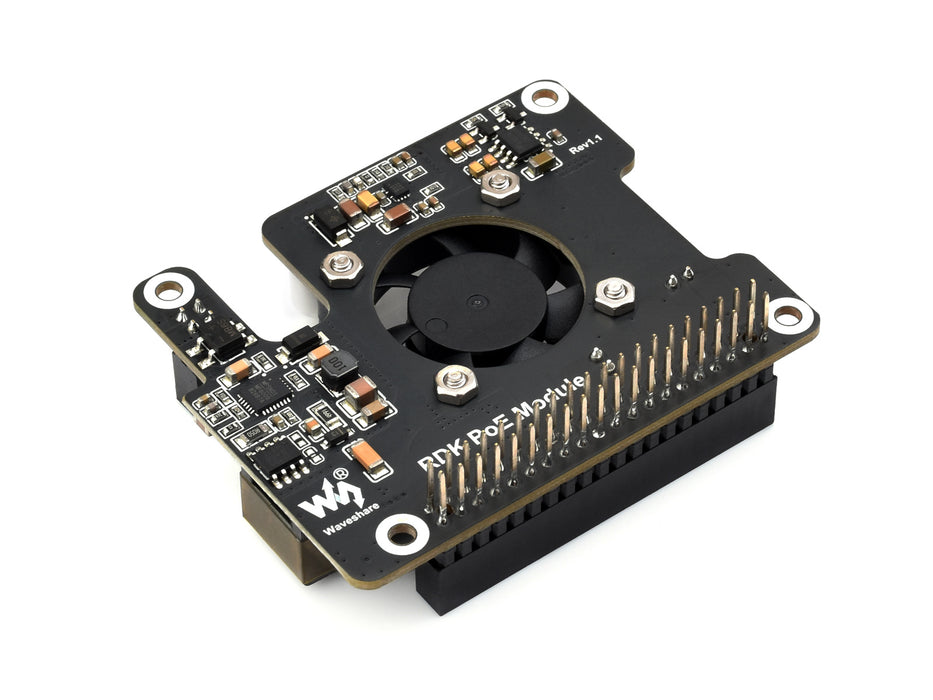

RDK X5 PoE Expansion Board with Fan & Heatsink, 802.3af/at

Transform your D-Robotics RDK X5 development board into a powerhouse of connectivity and reliability with the latest Power Over Ethernet Expansion Board. Designed to seamlessly integrate with the RDK X5, this PoE module not only simplifies your network setup by combining data and power into a single Ethernet cable but also enhances performance with its dedicated onboard cooling and robust metal heatsink.

Key Features: - 802.3af/at Network Compatibility: This PoE expansion board is fully compliant with the IEEE 802.3af/at standard, meaning it can be used with a wide range of PoE-capable network equipment to deliver power and network connectivity to your RDK X5 development board through a solitary cable. - Enhanced Power Outputs: Sporting both 5V and 12V power headers, the board delivers a strong power output of up to 4.5A (5V) and 2A (12V), ensuring ample energy for the RDK X5 and additional peripheral devices. - Onboard Active Cooling: To maintain optimal operating temperatures and performance, the board is equipped with a high-speed active cooling fan, coupled with a metal heatsink offering superior heat dissipation. - High-Power Buck Converter: The included high-efficiency buck converter ensures stable voltages and currents under the rigorous demands of high power, further securing the reliability of your development projects. - Ease of Installation: Incorporation into your setup is straightforward—mount the metal heatsink onto the development board, and then attach the PoE expansion board using the provided screws.

Specifications: - PoE Power Input: 38V to 57V DC - Power Output (MAX): 5V/4.5A on GPIO header, 12V/2A on 2-pin header - Dimensions: 56.5 x 70.0 mm - Network Standard: IEEE 802.3af/at - Compatibility: Specifically designed for D-Robotics RDK X5 development board, with standard 40PIN GPIO stackable header - Weight: 0.057 kg

In the Box: - RDK PoE Module × 1 - Metal Heatsink × 1 - Screws Pack × 1 - Quick Installation Guide

Note: The RDK X5 development board and Ethernet switch are not included.

This PoE expansion board is the ideal solution for developers and hobbyists seeking a streamlined, high-performance networking solution for their RDK X5. With its onboard cooling, flexible power options, and easy installation, you'll be setting the standard for efficient, stable development projects.

For more information and detailed instructions, visit our Wiki page at https://www.waveshare.com/wiki/RDKPoEModule.
