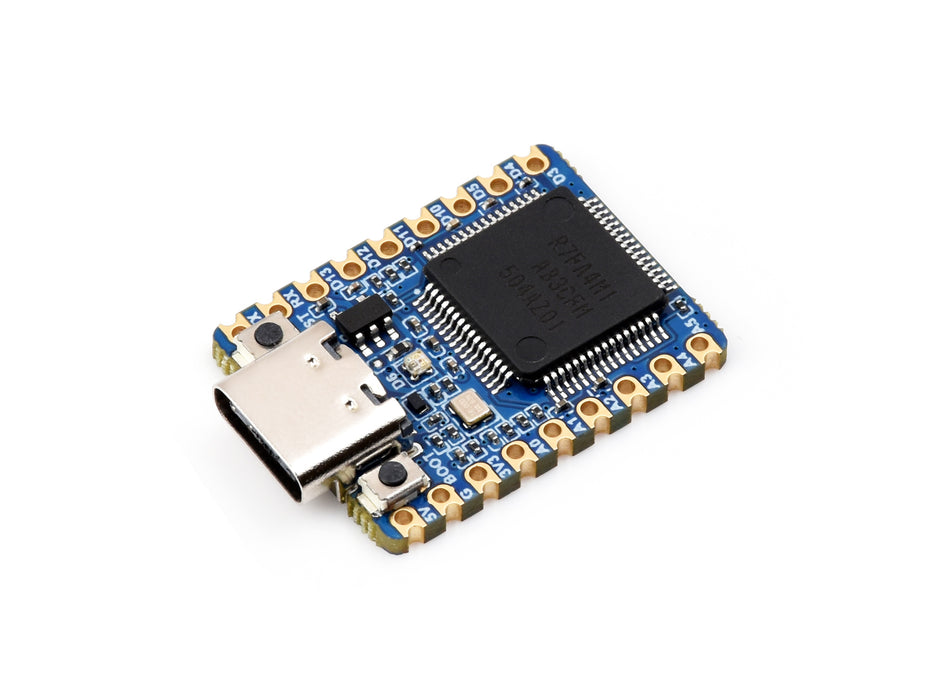

RA4M1-Zero Mini Development Board – 32-bit MCU, 48MHz, FPU, Firmware Encryption

Transform your ideas into reality with the RA4M1-Zero Mini Development Board – a compact powerhouse designed for innovators, hobbyists, and professionals alike.

Key Features: - High-Speed Processing: At the heart of this mini development board lies the sophisticated Renesas RA4M1 MCU, featuring a 32-bit ARM Cortex-M4 core that zips through operations at 48MHz. The built-in Floating Point Unit (FPU) enables efficient handling of complex mathematical operations, making it perfect for high-performance applications. - Capacious Memory: With 256KB of flash memory, 32KB SRAM, and 8KB EEPROM, the RA4M1-Zero provides ample room for your code and data, ensuring smooth and efficient operation even in demanding tasks. - Robust Security: Protect your intellectual property with advanced security features including firmware encryption, secure boot, and tamper-proof protections, keeping your application secure from unauthorized access or alterations. - Abundant Connectivity: Explore the RA4M1-Zero's rich set of peripherals including a 14-bit ADC, 12-bit DAC, CAN bus controller, and a USB 2.0 interface, empowering your projects with endless possibilities for sensor integration and communication protocols. - Board Specifications: Tailored for space-constrained applications, the board's Zero-size design measures a mere 18 × 23.5 mm. It also features a convenient castellated hole design, making it ideal for SMD applications and mass production. - Arduino Compatibility: Simplify your development process utilizing the widely-used Arduino IDE, supported by a comprehensive SDK, and a plethora of resources and tutorials available online, getting you up and running in no time.

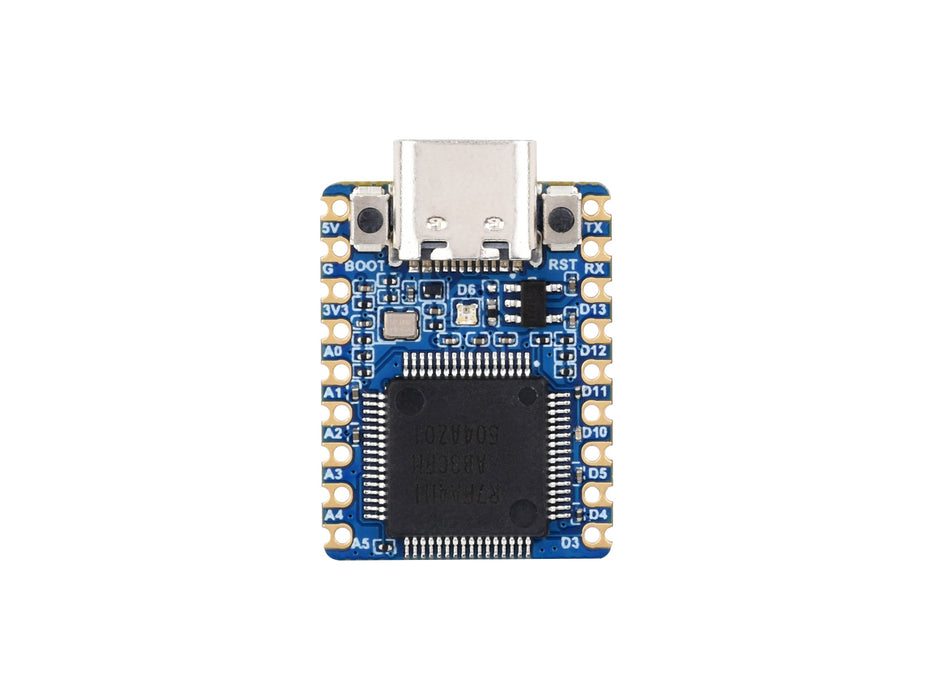

Board Details: - Smart Onboard Resources: Show off your project’s status with a visually appealing RGB LED, all under the control of the MCU. Bootstrap your development with a user-friendly USB Type-C connector and handy reset and BOOT buttons to streamline the programming process. - LDO for Stable Power: With the onboard ME6217C33M5G low dropout LDO, you can be confident that your project is supplied with a stable and reliable power source, delivering up to 800mA. - Flexibility in Voltage: Choose your desired operating voltage using the 0R resistor for the MCU, with a default setting of 3.3V.

Package Options: - RA4M1-Zero: The barebones board for those who love customizing their setups. - RA4M1-Zero-M: For added convenience, opt for the version with pre-soldered headers, ready to fit into any prototype or final product.

Technical Specifications: - Core: Renesas R7FA4M1AB3CFM - Operating Frequency: Up to 48MHz - GPIO: Multiple pins with D6 controlling an RGB LED - Memory: 256KB Flash, 32KB SRAM, 8KB EEPROM - Security: Firmware encryption, secure boot - Power: ME6217C33M5G LDO - Dimensions: 18 × 23.5 mm - Weight: 0.002 kg

Included in the box: - RA4M1-Zero Mini Development Board (with or without pre-soldered header, depending on the selected option)

For more details on how to start your journey with the RA4M1-Zero Mini Development Board, visit the official Waveshare wiki page.

Take the first step into a larger world of electronics with the RA4M1-Zero Mini Development Board – Order yours today and elevate your projects to new heights!
