Lightning Bolt LED Filament
100 units will be available shortly.

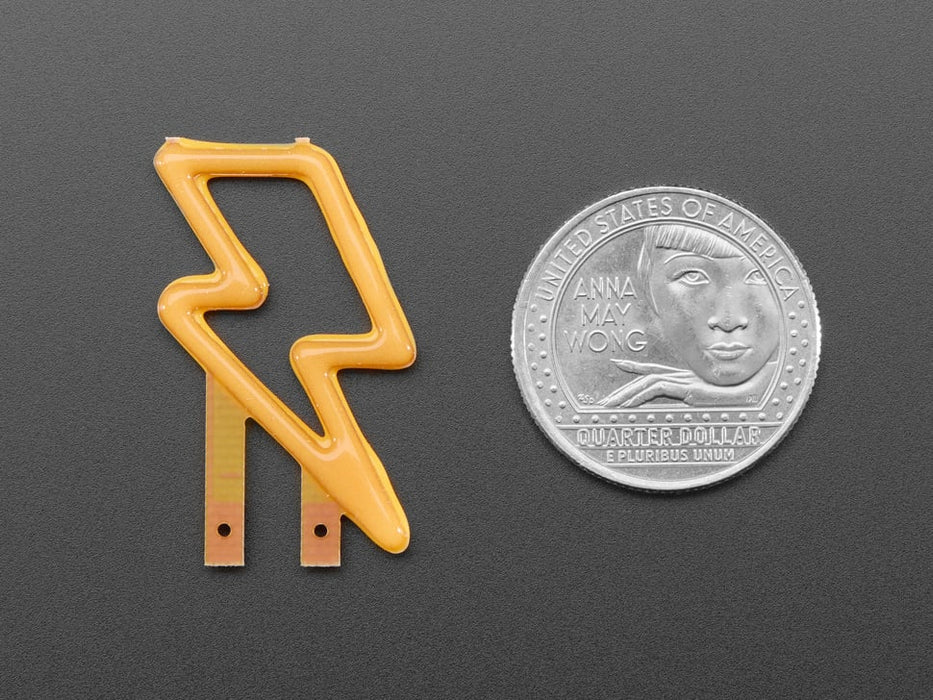

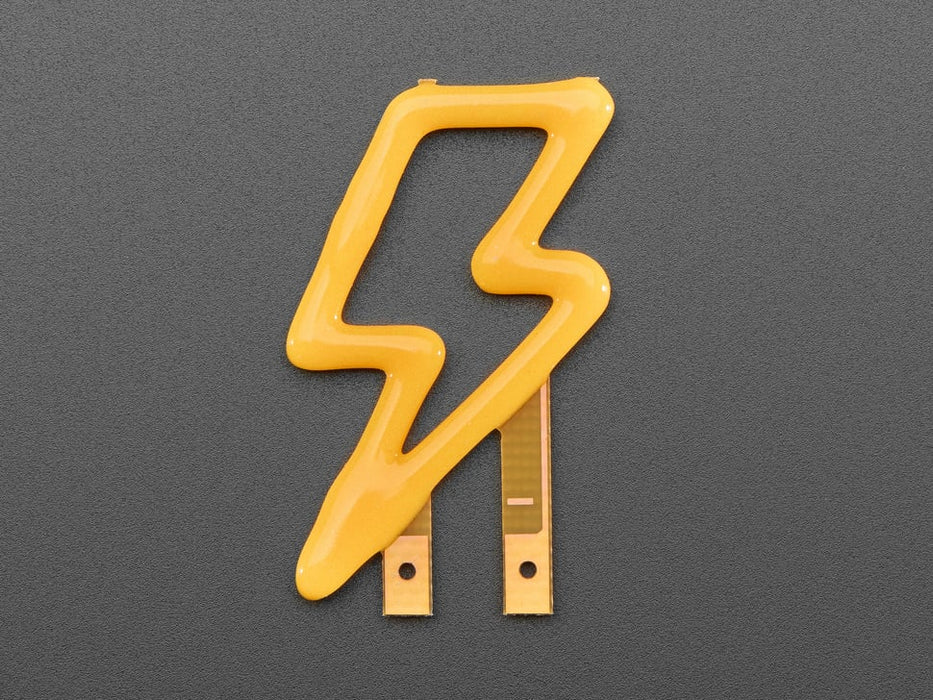

COB LED Lightning Bolt – Miniature Neon Glow
This glowing lightning bolt is crafted from COB (Chip-on-Board) LEDs, similar to those found in Edison-style LED bulbs, arranged to create a bright, warm, and uniform lighting effect. Each piece features dozens of micro LED diodes bonded to a rigid metal backing and coated in silicone for durability.
Although the LEDs are positioned on one side, the ultra-thin PCB substrate allows some light to pass through the back, creating a subtle secondary glow.
Key Features
- Warm, consistent glow that mimics classic filament lighting
- Operates on 3V with LEDs wired in parallel
- Use a current-limiting resistor to maintain a maximum of 100mA
- PWM dimmable for adjustable brightness
- Sturdy, non-flexible design, perfect for miniature displays, dioramas, dollhouses, and themed projects
Easy to Use

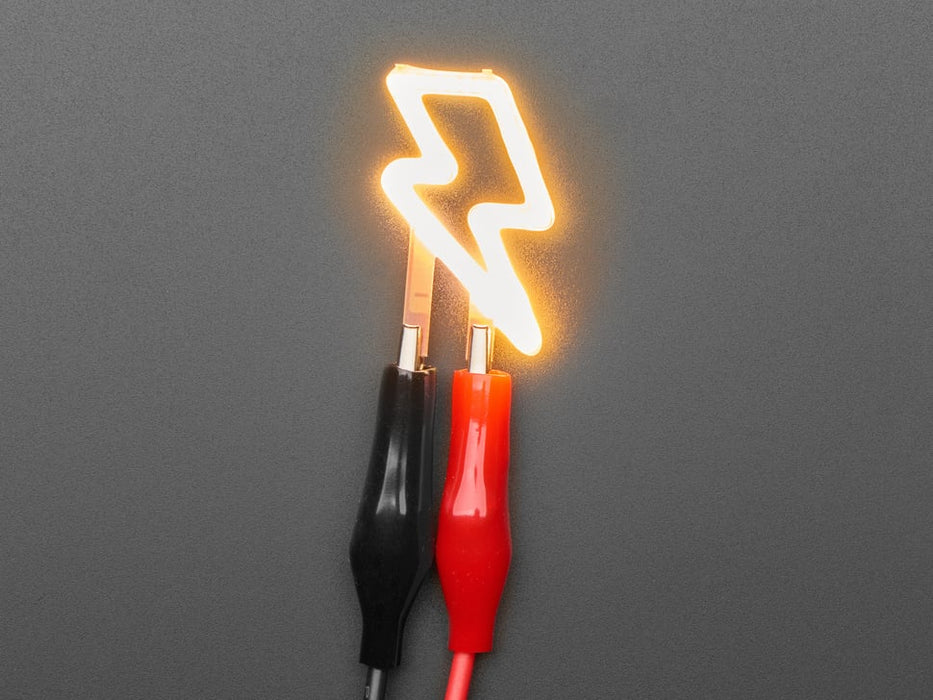

Powering this LED lightning bolt is as simple as connecting 3V to both ends. The cathode (negative) side is marked with a "-" symbol on the PCB. If it does not light up, just reverse the connection.

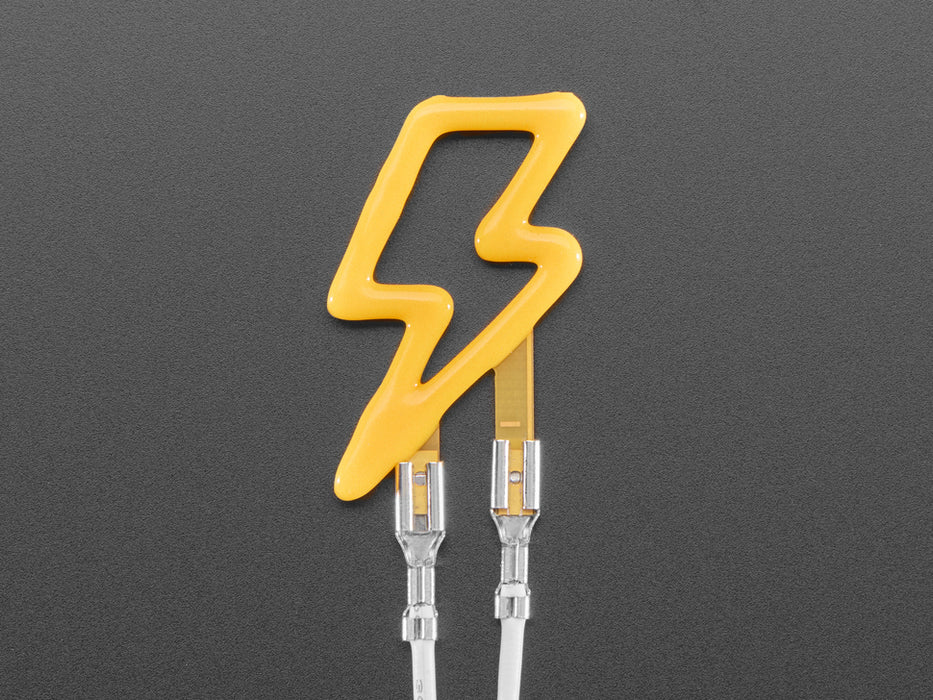

Compatible with Arcade Button Quick-Connect Wire Pairs - 0.11" (10 pack) for easy setup.
A perfect way to add an electrifying neon touch to your next project.
