Learn to Solder - DIY Ultrasonic Ranging Electronic Kit
We have ✅ 45 available of the LB-LS6569 in our Sydney warehouse. An extra 100 units available with a short lead time.

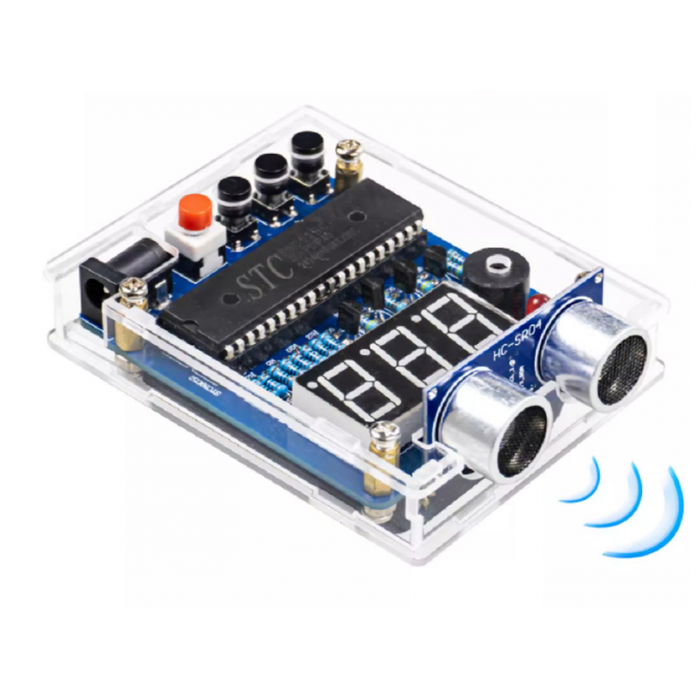

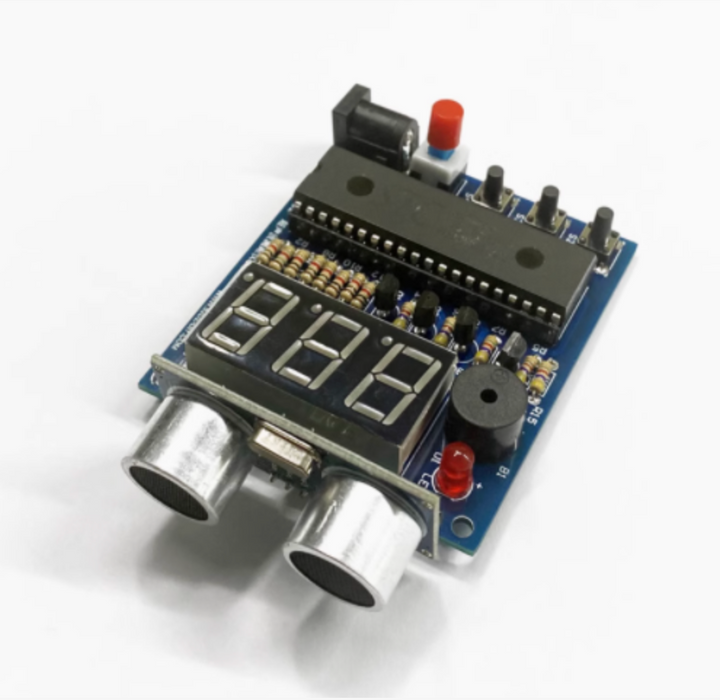

Ultrasonic Distance Measuring DIY Kit with 7-Segment Display
Take control of precise distance measurement with this single-chip microcomputer ultrasonic sensor kit. Designed for hobbyists and DIY enthusiasts, this kit combines the STC89C52 microcontroller, HC-SR04 ultrasonic sensor, and a 3-digit 0.56" 7-segment display to create a versatile and functional distance measuring device. Ideal for applications such as car parking sensors or general measurement projects.
Key Features:
- Intuitive Control: Adjust settings easily using the -, +, and Set keys.
- Customizable Alarm Distance: Set your desired distance threshold; the buzzer alerts when the measured distance is below the set value. Settings are retained even after powering down.
- Wide Measurement Range: Accurately measures distances from 5 cm up to 4 m.
- Stable and Reliable: Designed for consistent performance with simple operation—ready to use once powered on.
- Compact DIY Design: Bottom plate measures 6 × 7 cm; total assembled size with probe is approximately 6 × 9 × 3 cm.
Circuit Specifications:
- Input Voltage: DC 4.5–5.5V
- DIY Kit Weight: 80g

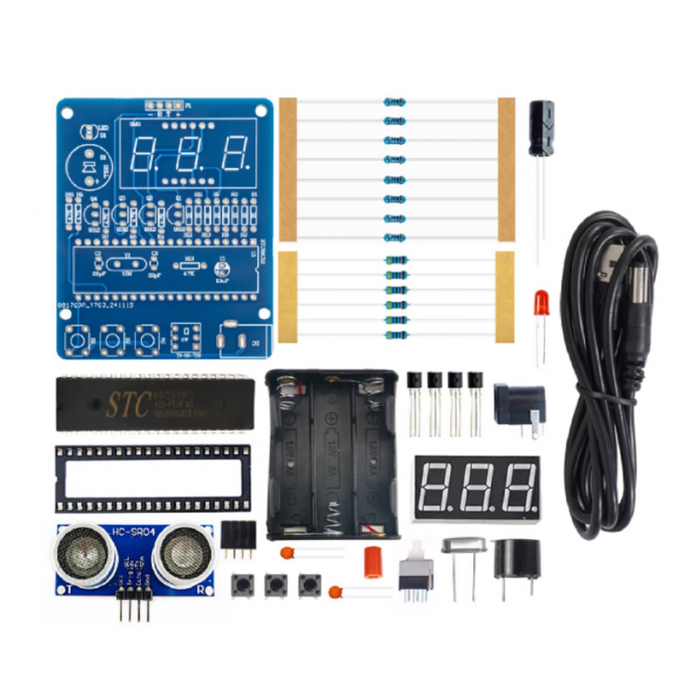

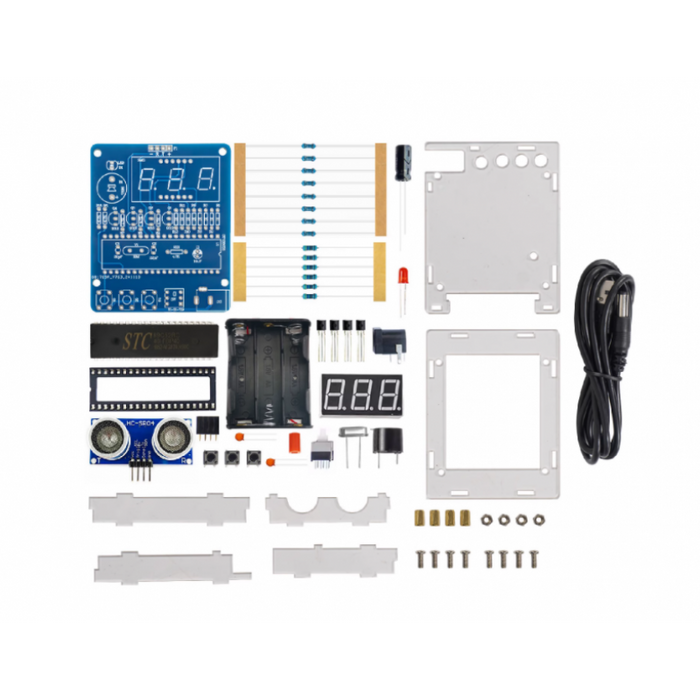

DIY Kit Includes:
- PCB board ×1
- HC-SR04 Ultrasonic Ranging Module ×1
- 0.56" 3-digit 7-segment Display ×1
- 40P IC Socket ×1
- STC89C52 Microcontroller (Pre-programmed) ×1
- DC005 Block ×1
- USB to DC005 Power Supply Cable ×1
- 7th, 3rd Battery Pack ×1
- 5V Active Buzzer ×1
- 5mm Red LED ×1
- 8×8 Self-locking Switch ×1 with Cap ×1
- 6×6×12 Buttons ×3
- 1K Resistor ×9
- 4.7K Resistor ×7
- 9012 Transistor ×4
- 22pF Ceramic Chip Capacitor ×3
- 12M Crystal Oscillator ×1
- 10µF Electrolytic Capacitor ×1
Perfect for electronics enthusiasts, this kit offers hands-on experience in assembly, programming, and functional distance sensing.
