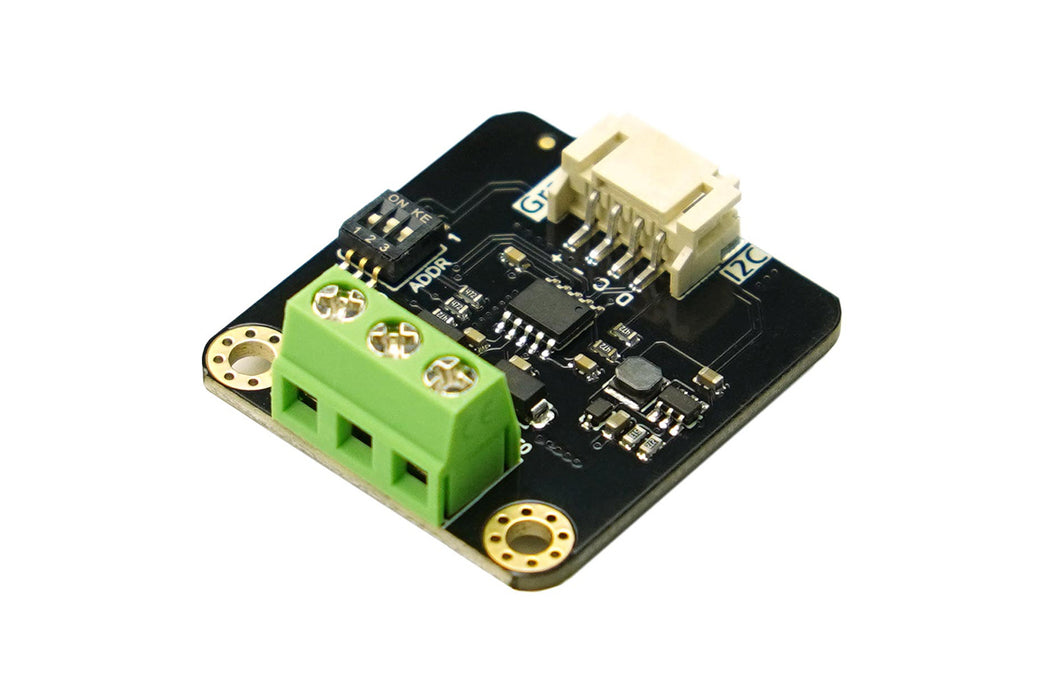

Gravity: GP8413 2-Channel 15-bit I2C to 0-5V/10V DAC Module

This is a 2-channel DAC module with I2C communication, a resolution of 15-bit, and an accuracy of 0.2%, capable of generating analog voltage outputs of 0-10V or 0-5V. The 0-10V or 0-5V voltage range is a standard driving method. It can be widely used in automation applications such as light adjustment, frequency converters, valve regulation, and pump control. This product can drive a variety of 0-10V or 0-5V controlled devices available in the market through Arduino programming.

The high precision and resolution of this module make it suitable for control scenarios that require higher signal accuracy, such as fine speed control or angle control.

DAC series modules are a range of products that can be controlled through I2C or PWM signals to generate voltage or current output signals. This series of DAC products not only offers a variety of output signal ranges, but also provides three selectable resolutions: 8-bit, 12-bit, and 15-bit. It allows for the choice of either single-channel or dual-channel configurations, and multiple modules can be cascaded to form a multi-channel output.


We provide various models of DAC modules. If you need a different model, please check the selection guide:

Selection Guide of DAC Modules

Features

Support 3.3V-5V power supply.

Output voltage error is less than 0.2%.

Output voltage linearity error is 0.01%.

Two channels of voltage output, either 0-5V or 0-10V, enabling connection and control of standard analog voltage devices.

Gravity interface, I2C communication, Arduino control, suitable for program automation control.

Features 8 adjustable I2C addresses, allowing simultaneous control of up to 16 devices.

The high precision and resolution of this module make it suitable for control scenarios that require higher signal accuracy.

Applications

Automatic light adjustment

Variable frequency drive (VFD)

Automatic valve regulation

Automatic water pump control

Specification

Operating voltage: 3.3V to 5V

Communication Method: I2C

Chip Type: GP8413

Resolution: 15-bit

Output Voltage: 0-5V or 0-10V

Number of channels: 2 channels

Value Range: 0 - 32767 corresponding to 0-5V or 0-10V

Output voltage: 0.2%

Output voltage linearity error: 0.01%

Documents

Shipping List

GP8413: 2-Channel 15-bit I2C to 0-5V/10V DAC Module ×1

Gravity-4P I2C/UART Sensor Cable × 1
