ESP32-S3 4" Display Dev Board – 480x480, Dual-Core LX7, WiFi & Bluetooth
100 units will be available shortly.
Enhance your project development with the cutting-edge ESP32-S3 4inch Display Development Board, a versatile and powerful tool designed to streamline the creation of high-performance human-machine interfaces (HMI), smart home devices, industrial controllers, and more. Its advanced technical capabilities provide the computing power and connectivity you need to bring your innovative ideas to life.
Product Features:

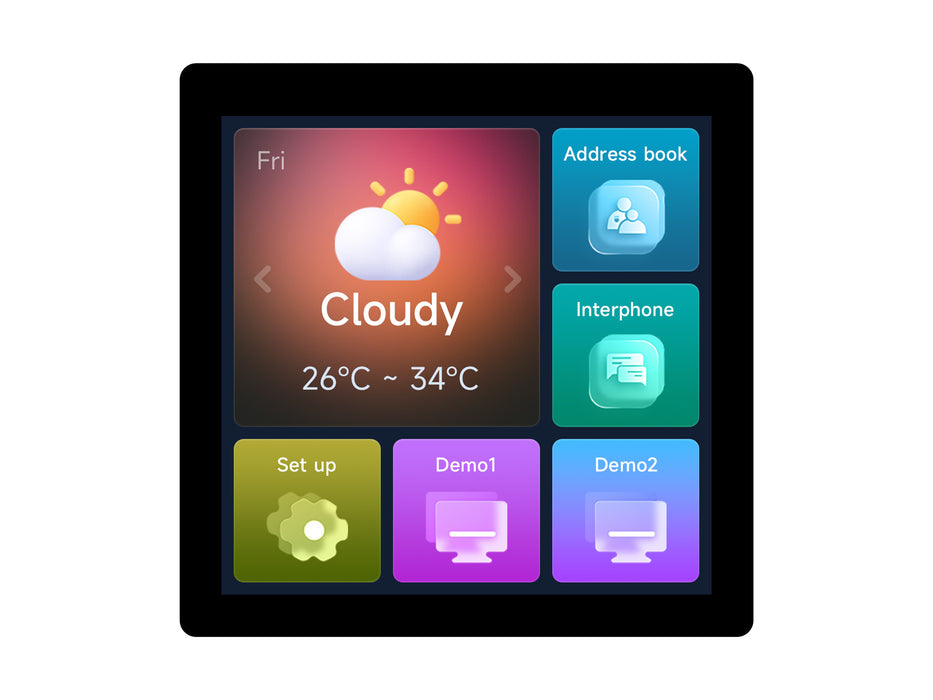

- High-Resolution Display: Experience crisp visuals on a 4-inch, 480×480 resolution LCD screen, perfect for rendering detailed graphical user interfaces.
- Touch Functionality (Optional): Opt for the capacitive 5-point touch version to enable interactive controls and multi-touch gestures, providing a seamless and intuitive user experience.
- Powerful Dual-Core Processor: The board boasts an Xtensa 32-bit LX7 dual-core processor with a clock speed of up to 240MHz, ensuring your applications run smoothly and efficiently.
- Robust Connectivity: Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with an onboard antenna, giving you the flexibility to connect to various devices and the internet.
- Memory and Storage: Integrated with 16MB Flash and 8MB PSRAM, it provides ample space for your code and data.
- Peripheral Support: Expand your project's capabilities with onboard CAN, RS485, I2C interfaces, a TF card slot, and a full-speed USB port.
- Diverse Power Options: The board can be powered through a Type-C USB port or an external 7-36V DC input, and it also includes a PH2.0 connector for a 3.7V Lithium battery with charging support.
What's On Board:
- Multiple Chips: Includes vital components like TJA1051T/3/1J CAN transceiver, SP3485 RS485 transceiver, PCF85063 RTC chip, TCA9554PWR IO expansion chip, and SW6106 battery management chip.
- Convenient Interfaces: Offers both back and bottom wiring options with a 3.5mm 10pin screw terminal slot for easy hardware setup in various installation scenarios.
Product Specifications:
- Processor: Xtensa 32-bit LX7 dual-core, up to 240MHz frequency.
- Wi-Fi / Bluetooth: 2.4GHz Wi-Fi and Bluetooth 5 with onboard antenna.
- Flash Memory: 16MB integrated Flash storage.
- RAM: 8MB PSRAM.
- Display: 4-inch RGB IPS LCD, 480×480 resolution.
- Viewing Angle: 160° wide angle for readability from various positions.
- Touch Panel: Capacitive touch with 5-point multi-touch support (optional).
- Communication Interfaces: CAN, RS485, I2C, USB, and TF card slot.
Applications:
- Smart Control Panels: Ideal for building intuitive control interfaces for smart home and office systems.
- Industrial Control Systems: Robust connectivity and display features make it suitable for monitoring and control in industrial environments.
- Intelligent Interactive Panels: Engage users with interactive touch displays for information kiosks, POS systems, and more.
Choose between the non-touch and touch versions to match your project requirements. With a deep resource pool and support available through its dedicated Wiki page, the ESP32-S3 4inch Display Development Board is the perfect foundation for developers seeking to build the next generation of interactive and connected devices.
