Adafruit 1.14" 240x135 Color Newxie TFT Display
100 units will be available shortly.

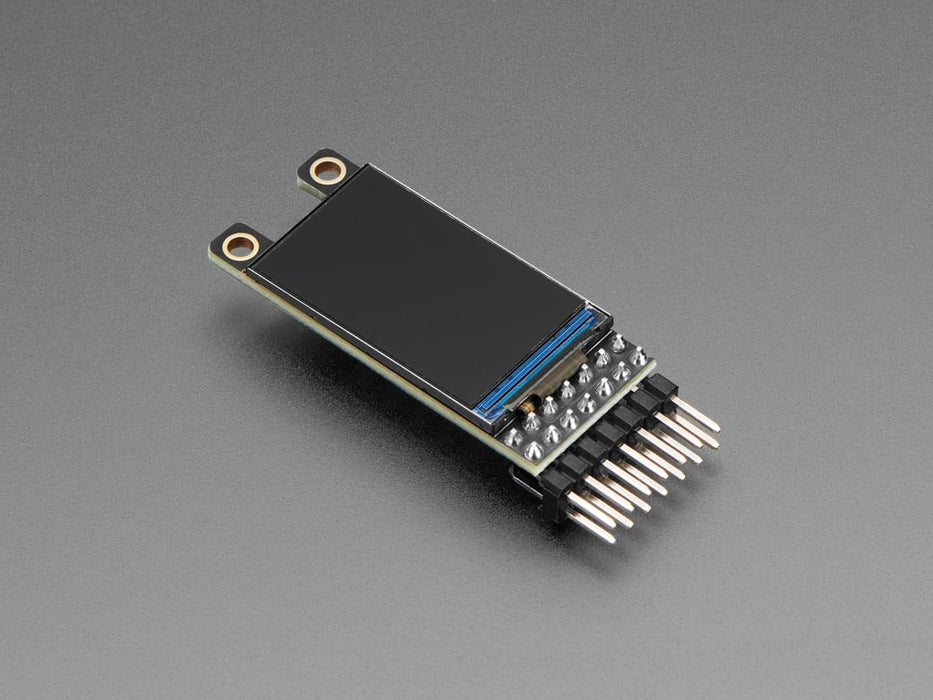

Newxie 1.14" 240x135 Color TFT Display Board – Tiny, High-Resolution & Stackable
Introducing the Newxie 1.14" 240x135 Color TFT Display Board—a TFT-errific addition to compact display solutions! Despite being thumbnail-sized, this high-density, full-color IPS display packs an impressive 240x135 resolution, making it perfect for small but visually rich interfaces.
Compact & Versatile Design
- 1.14" diagonal size – Ideal for projects where space is limited.

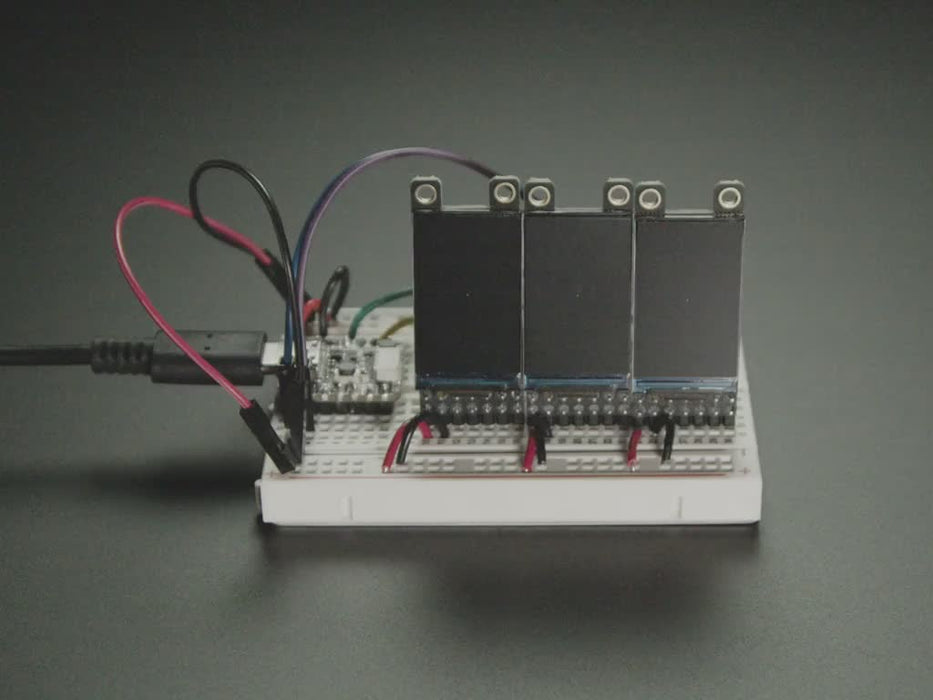

- Stackable breakout board – Designed for 0.1" grid stacking, with a vertical layout inspired by nixie tubes.
- Pre-soldered 2x7 right-angle headers – Provides a secure, upright mounting option for easy integration.
High-Performance Display
- 240x135 16-bit color IPS panel – Offers vibrant colors with 80° viewing angles in any direction.

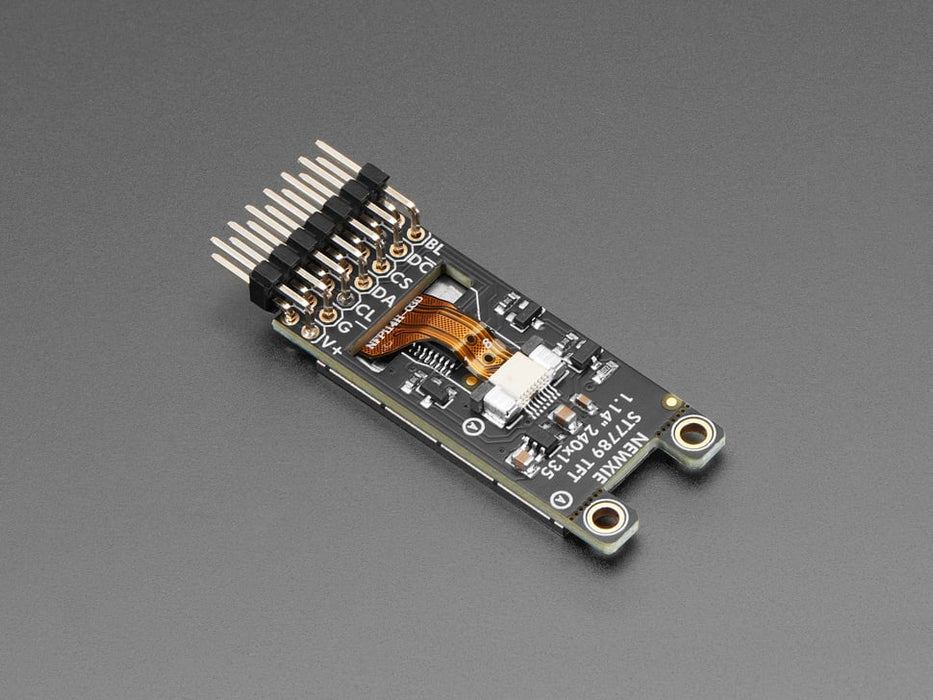

- ST7789 TFT driver – Similar to the popular ST7735, fully supported by the Adafruit Arduino library.
- Frame-buffered SPI interface – Works smoothly even with low-memory microcontrollers.
Minimalist Yet Powerful
- No MicroSD slot or reset pin – Only 7 control pins required, keeping wiring simple.
- Ultra-low dropout 3.3V regulator & level shifter – Compatible with 3.3V & 5V logic, making it easy to use with Arduino, ESP32, RP2040, or Raspberry Pi.
- Dual-row headers for added stability – Ensures secure placement and straight alignment.
If you're looking for a tiny, stackable, high-resolution color display, the Newxie 1.14" TFT Display is the perfect fit for compact UI designs, gauges, dashboards, and more.
The Adafruit 1.14" 240x135 Color Newxie TFT Display appears in the following collections:
SKU AF-6113
by Adafruit
