7'' 1024x600 Touch Display (eDP) for LattePanda Mu / LattePanda Sigma

The 7" Touch Display (eDP) combines excellent visual quality with practical features designed for human-machine interface (HMI) and portable projects. This display adopts cutting-edge IPS screen technology, ensuring full visual angle support, a high resolution of 1024 x 600, and vibrant color saturation.

Excellent Visual Effect

This display adopts IPS screen technology, supports FULL visual Angle, 1024 x 600 high resolution, and high color saturation, achieve excellent picture.

Designed For HMI and Portable Projects

We have made many product design optimizations for HMI and portable project requirements. For example, HMI scenarios are often complex and dusty, but this display uses a fully fit design to perfectly prevent dust from entering the screen, and also effectively reduces the reflection of light. In order to make the screen easy to be installed, the screen edge comes with the special double-sided adhesive tape, which can be easily and firmly fixed.

Best Compatibility

Unlike other normal HDMI screens, this display uses eDP interface and has the best compatibility with LattePanda Mu / LattePanda Sigma.

Wiring Diagram of Display and LattePanda Mu

Wiring Diagram of Display and LattePanda Sigma

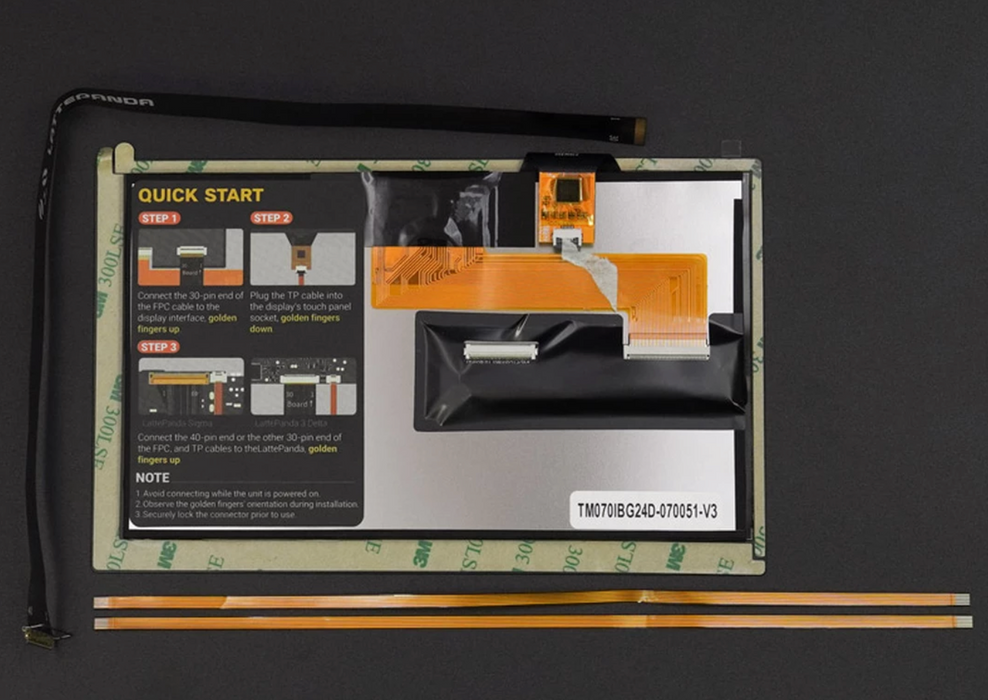

Please refer to the instruction sticker at the back of the screen for proper screen connection.

How to Install the 7'' eDP Touch Display for LattePanda Sigma: A Step-by-Step Assembly Guide

Please note: Designed exclusively for the LattePanda Sigma single board computers.

Features

Wide viewing angle for enhanced visibility from different perspectives

Multi-touch functionality for intuitive interaction

High-quality display with vivid and accurate color reproduction

Compact and lightweight design for easy integration into various projects

Durable construction with a 6H surface hardness for scratch resistance

Quick response time for smooth and responsive touch operations

Compatible with the LattePanda Sigma model for seamless integration

Versatile applications in human-machine interface (HMI) and portable projects

Applications

LattePanda Sigma Single Board Computer

Specification

Compatible Models: LattePanda Mu / LattePanda Sigma

Resolution: 1024 x 600 high resolution

Interface: eDP(DP)+I2C(TP)

Transmittance：85%

Surface Hardness： 6H

Response Time: ≤16ms

LCM Luminance: 250 cd/m2

Tapping Durability: 200,000,000 times

Connector: 30cm FPC Extension Cable

Pixel pitch (W×H) 0.1506 × 0.1432 mm

Active area (W×H) 154.21 × 85.92 mm

Dimensions: 180*110*5 mm / 7.1*4.3*0.2 inches

Operating Temperature -20 ～ +70 ℃

Storage temperature -30 ～ +80 ℃

Weight(Screen Only): 157.7g

Documents

Shipping List

7 inches eDP Touch Display x1

30cm eDP cable x1

23cm Touch cable with Same-Side Contacts x2 (For LattePanda Sigma)

21cm Touch cable with Opposite-Side Contacts x1 (For LattePanda Mu)
