3.5" Capacitive Touch IPS Display – 320x480, ST7796S & FT6336U
We have ✅ 3 available of the WS-29318 in our Sydney warehouse. An extra 100 units will be available shortly.
3.5-Inch Capacitive Touch Display Module with IPS Screen
Unleash the potential of your next project with our stunning 3.5-inch Capacitive Touch Display Module. Equipped with an IPS panel and a resolution of 320x480, this display brings crystal-clear images and vibrant colors to the palm of your hand.
Main Features:

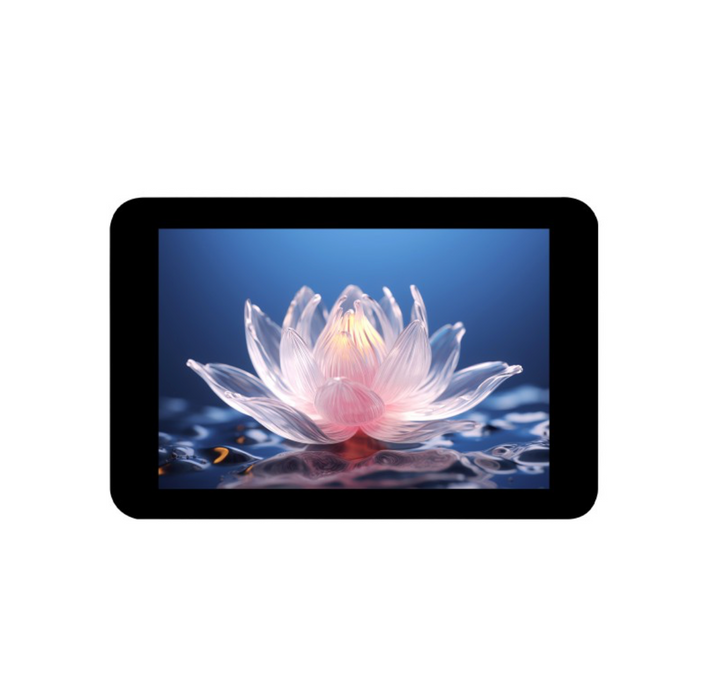

- Impressive Visuals: Enjoy crisp and vivid visual with 262K colors on this 3.5-inch IPS display, boasting wide viewing angles and high-quality color reproduction.
- Responsive Touch Control: With a built-in FT6336U capacitive touch controller, you'll experience smooth and precise touch response, supporting two-finger touch for intuitive interaction.
- Robust and Efficient Driver: The embedded ST7796S display driver ensures stable performance, facilitated through an SPI interface for quick and reliable data transfer.
- Expandable Storage: The included TF card slot allows you to store additional images, videos, and other media right on the display module.

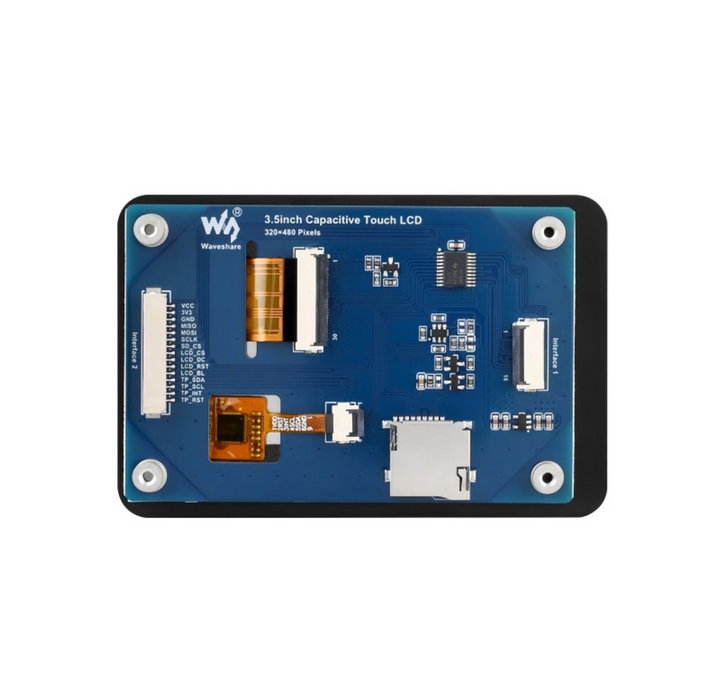

- Flexible Connectivity: Ready-to-use with 15PIN and 18PIN FPC slots, this module can be easily interfaced with your choice of host board.
- Voltage Compatibility: No need to worry about voltage mismatches – our onboard voltage translator is compatible with both 3.3V and 5V operating voltages.
- Developer Friendly: Comes with a variety of examples and resources for platforms like Raspberry Pi, ESP32, Raspberry Pi Pico, and Arduino, easing the development process.
- Tailored Interfaces: Provides dedicated pins for SPI and I2C communication, minimizing the need for complex wiring and excessive IO pins.
Technical Specifications:
- Operating Voltage: 3.3V / 5V
- Display Resolution: 320 × 480 pixels
- Display Driver: ST7796S
- Touch Driver: FT6336U
- Display Interface: SPI
- Touch Interface: I2C
- Display Panel: IPS with a pixel pitch of 0.051 × 0.153 (mm)
- Touch Points: Two-point touch
- Module Size: 61.00 × 92.44 (mm)
- Display Size: 48.96 × 73.44 (mm)
Easy Integration:
With provided cables (GH1.25 15Pin and FPC cable) and comprehensive development resources available online through our Wiki, this display module is not just a component but a jumpstart for your next innovation.
Packaging:
- 3.5inch Capacitive Touch LCD x1
- GH1.25 15Pin cable x1
- FPC cable x1
Dive into a seamless display experience with our 3.5-inch Capacitive Touch Display Module, perfect for innovative creations in both hobbyist projects and professional applications.
