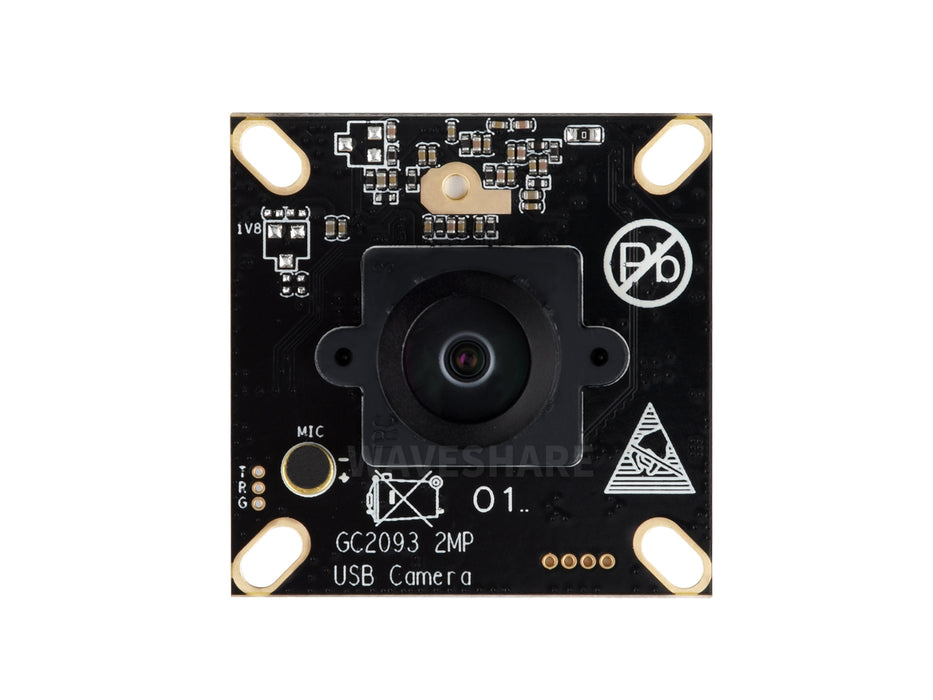

2MP USB Camera Module GC2093 – Fixed Focus, Onboard Microphone
100 units will be available shortly.
Capture Every Detail with Clarity: The GC2093 2MP USB Camera Module
Introducing the GC2093 2MP USB Camera Module – the essential tool for creators and professionals who demand exceptional imaging performance. Engineered with a wide dynamic range and an advanced sensor, this camera module brings your digital vision to life with precision and versatility.
Product Features:
- High-Quality Imaging: Adopting the sophisticated GC2093 sensor chip, this 2MP USB M12 camera module delivers crystal-clear, high-resolution images. Experience stunning 1920 × 1080 static photographic resolution and smooth video recording at various frame rates to meet all your content creation needs.
- Wide Dynamic Range (WDR): With a dynamic range of 81dB in linear mode and a remarkable 105dB in HDR mode, this camera excels even in challenging lighting conditions. Enjoy perfectly exposed visuals, from the brightest highlights to the deepest shadows, perfect for backlit scenes and outdoor environments.
- Fixed-Focus Convenience: The module's fixed-focus lens ensures rapid, hassle-free setup and consistent image quality. With an aperture of F2.2 and an effective focal length of 2.28 mm, it's optimized for a range of uses, delivering sharp images without the need for manual adjustments.
- Expansive Field of View: Capture more with a 170.2° diagonal, 144° horizontal, and 77.6° vertical field of view, ideal for wide-angle surveillance, streaming, or any project where broad coverage is key.
- Built-in Audio Capture: Featuring an onboard microphone, the GC2093 enables you to record clear audio simultaneously, making it a complete audiovisual solution for a variety of multimedia applications.
- Plug-and-Play Simplicity: Enjoy a truly user-friendly experience with the onboard USB 2.0 interface. No drivers are needed - just connect the camera to your PC or smart device for instant operation.
- Compact and Durable Design: Measuring only 38.00 × 38.00 × 19.01 mm, this robust camera module is built to fit into tight spaces and withstand the demands of constant use.
Specifications:
- Sensor Chip: GC2093
- Resolution: 2MP (1920 x 1080)
- Interface: USB 2.0
- Camera Sensor Size: 1/2.9 inch
- Aperture: F2.2
- Field of View: 170.2°(D), 144°(H), 77.6°(V)
- Focus: Fixed-focus
- Dynamic Range: 81dB Linear, 105dB HDR
- IR Filter: 650nm
- Supported Image Formats: MJPG, YUY2
- Power: 5V ± 5%, 180mA current
- Dimensions: 38.00 × 38.00 × 19.01 mm
- Weight: 0.038 kg

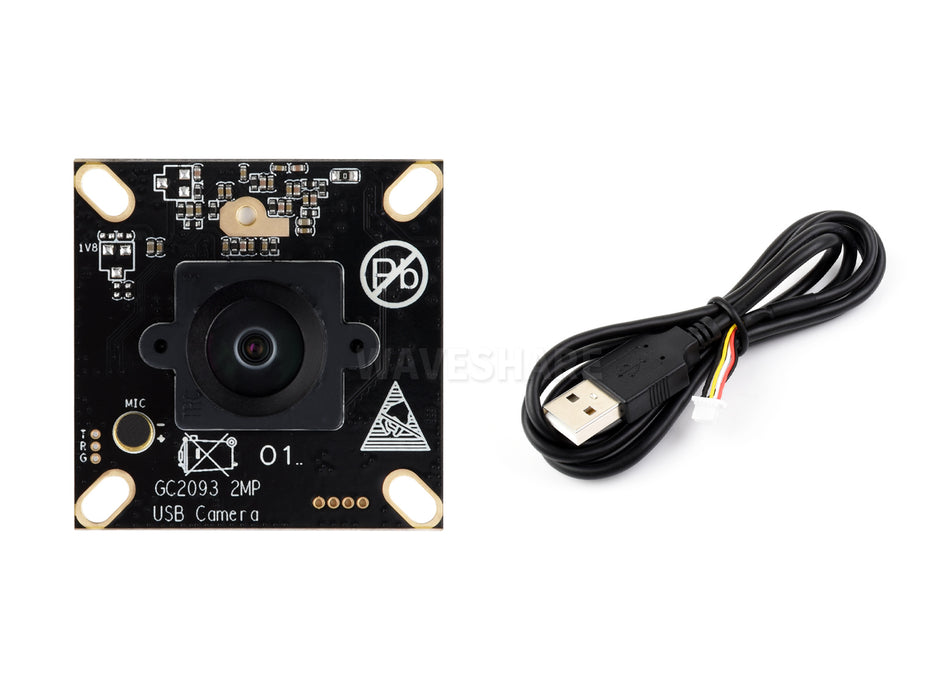

In the box:
- GC2093 2MP USB Camera (A) × 1
- USB-A to 5PIN cable × 1
Leverage the capabilities of the GC2093 2MP USB Camera Module to enhance your projects with its superior imaging technology and seamless integration. For additional resources and support, visit our Wiki page at www.waveshare.com/wiki/GC20932MPUSBCamera(A). Your quest for outstanding image quality and convenience ends with this compact, feature-rich camera module.
