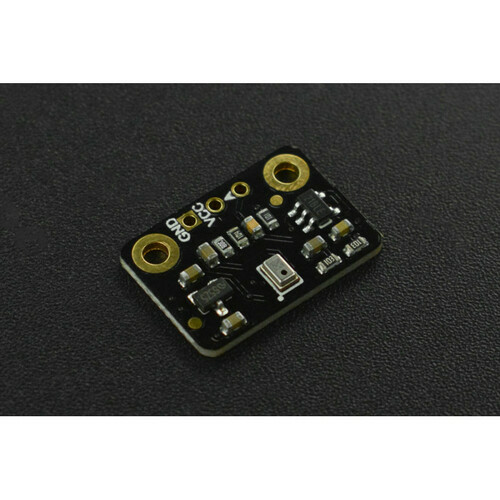

Fermion: MEMS Microphone Module

Fermion: MEMS Microphone Module

We have ✅ 1 available of the DF-SEN0487 in our Sydney warehouse. An extra 578 units will be available shortly.

Express post delivery (2-5 business days)

This tiny MEMS microphone has an amplifier gain of 66. When there is no sound detected, it outputs voltage around 0.66*VCC. When speaking, you can easily get the acoustic waveform by ADC sampling. The module can be used on all kinds of 3.3V/5V main-controllers.

Connection Diagram


Specification
  • Signal Type: Analog signal
  • Power Supply: 3.3V/5V
  • Directivity: All-round
  • Sensitivity: -42dB
  • S/N Ratio: 59dBA
  • Frequency Range: 100Hz~8KHz
  • Dimension: 18*12.5 mm/ 0.71*0.49”

    • Documents
  • Product wiki

    • Shipping List
  • Fermion: MEMS Microphone Module ×1
  • 2.54-3P Black Single Row Pin Header ×1

    • The Fermion: MEMS Microphone Module appears in the following collections:

    SKU DF-SEN0487
    by DFRobot
