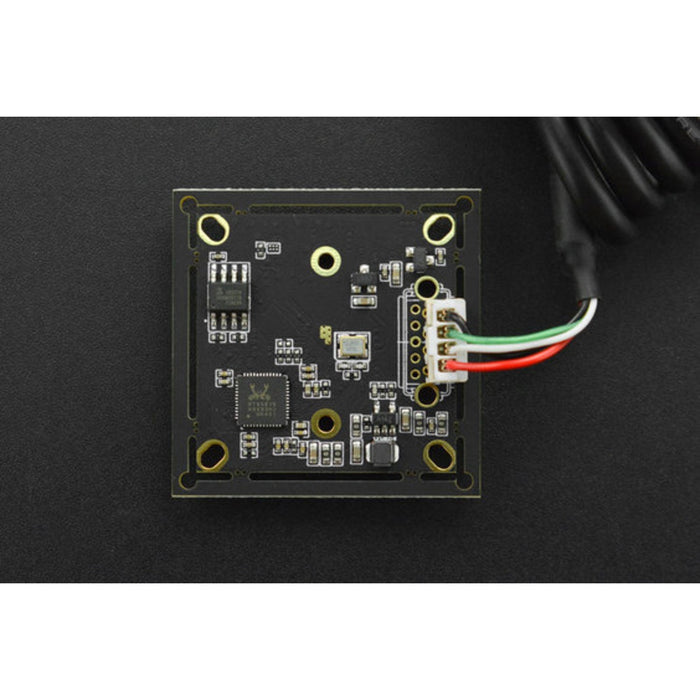

8 Megapixels USB Camera (with Microphone)

This is an 8000K pixels driver-free camera of USB port with up to 3264*2448 resolution. Based on the Sony IMX179 CMOS sensor, it supports autofocus, plug, and play, offering HD photos and video. Compatible with multiple systems like Windows, iOS, Android, and Linux, this camera module comes with a digital microphone that captures the sound of 5 meters around the camera when recording video. The design of the USB port also makes it easier to use with your Raspberry Pi and Jetson Nano mainboard when they are placed in a protective case.

With a small size of 38mm*38mm, the camera can be embedded into various devices, and perfect for high-quality video system, biometrics recognition, industrial photography, HD monitoring, etc.

SPECIFICATION

• Photosensitive Element: CMOS
• Sensor: Sony IMX179
• Lens Size：1/3.2inch
• Pixel Dimension: 1.4μm
• Image Area: 6.18mm*5.85mm
• Max Effective Resolution: 3264(H) X 2448(V)  8 Megapixel
• Image Output Format: JPEG
• Supported Resolution and Frame Rate:

                 3264X2448 @ 15fps  / 2592X1944@ 15fps

                 1920x1080 @ 30fps  / 1600X1200@ 30fps

                 1280X720 @ 30fps  / 960X540@ 30fps

                 800X600 @ 30fps   / 640X480@ 30fps

• S/N Ratio: 34dB
• Dynamic Range: 72.5dB
• Sensitivity: 0.65V/lux-sec@550nm
• Mini illumination: 0.5lux
• Shutter Type: Electronic rolling shutter / Frame exposure
• Interface Type: USB2.0 High Speed
• Driver-free Protocol: USB Video Class（UVC）
• OTG Protocol: USB2.0 OTG
• AEC/AEB/AGC Support
• Support photo taking by pressing button
• Adjustable Parameter: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
• Camera Parameter: high-speed photographic apparatus camera,   distortionless, size of 1/3.2, Auto-focus, 75 degree
• Fill Light Power Supply Port: 4P-2.0 socket
• Power Supply: USB BUS POWER  4P-2.0mm Socket
• Operating Voltage: DC 5V
• Operating Current: 160mA~260mA
• Operating Temperature: -10～70℃
• Storage Temperature: -20～85℃
• Dimension: 38*38mm/1.50*1.50”
• OS Supported:

                 WinXP/Vista/Win7/Win8

                 Linux with UVC（above linux-2.6.26）

                 MAC-OS X 10.4.8 or later

                 Wince with UVC

                 Android 4.0 or above with UVC

SHIPPING LIST

• 8000K Pixel USB Camera(With Microphone) x1
