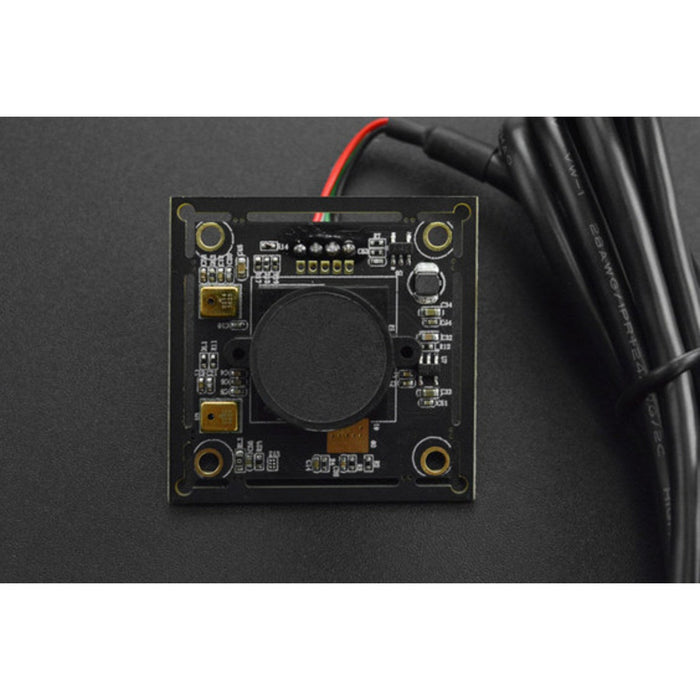

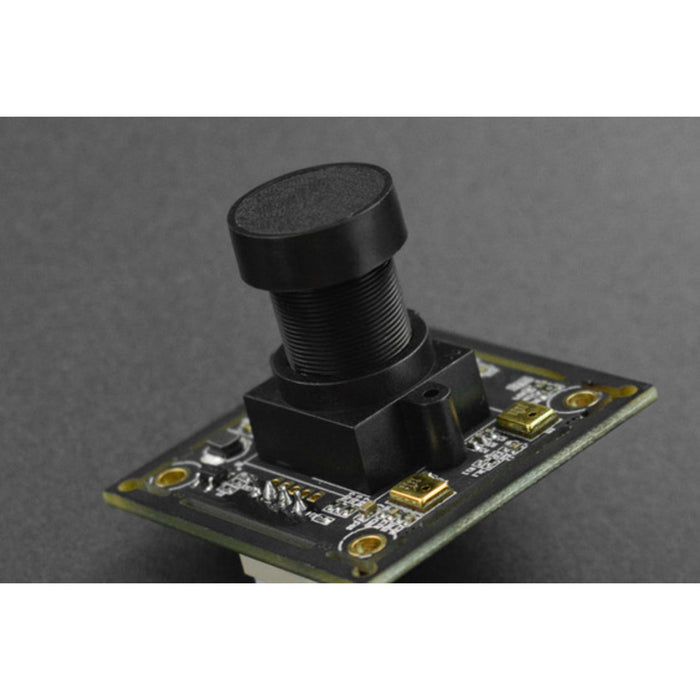

This is a 2 Megapixels driver-free night camera of USB port with up to 1920*1080 resolution. Based on the Sony IMX291 sensor, it features manual focus, interchangeable lens, plug, and play, bringing you HD photos and video even in low light condition. Compatible with operating systems like Windows, iOS, Android, and Linux, this camera module comes with a digital microphone that captures the sound of 5 meters around the camera when recording video. The design of the USB port also makes it easier to use with your Raspberry Pi and Jetson Nano mainboard when they are placed in a protective case.

USB Night Camera(With Microphone)

SPECIFICATION

  • Photosensitive Element: CMOS
  • Sensor: Sony IMX291
  • Lens Size: 1/2.8”
  • Pixel Size: 2.9μm*2.9μm
  • Image Distance: 1cm~∞
  • Max Effective Pixels: 1920(H) X 1080(V)  2 Megapixels
  • Image Output Format: MJPG/YUY2
  • Supported Resolution and Frame Rate:

                MJPG:1920X1080 @ 30fps  / YUY2:1920X1080@ 5fps

                MJPG:1920X480 @ 30fps  / YUY2:1920X480@ 10fps

                MJPG:1280X720 @ 30fps  / YUY2:1280X720@ 10fps

                MJPG:1280X480 @ 30fps  / YUY2:1280X480 @ 10fps

                MJPG:640X480 @ 30fps  / YUY2:640X480 @ 10fps



  • Manufacturing: SMT(ROSH)
  • Interface: USB2.0 High Speed (4Pin-2.0mm Connector)
  • Focus: adjustable, manual, or fixed focus
  • Minimum Illumination: 0.0001 Lux
  • Driver-free Protocol: USB Video Class(UVC)
  • AEC/AEB/AGC Support
  • Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
  • Power Supply: USB BUS POWER  4P-2.0mm Socket
  • Operating Voltage: DC5V
  • Operating Current: 160mA(VGA)
  • Operating Temperature: -20~70℃
  • Optional Lens: size 1/2.8”, 1.8mm, 2.1mm, 2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm
  • Dimension: 38*38mm/1.50*1.50”
  • Support OS: WinXP/Vista/Win7/Win8

                Linux with UVC(above linux-2.6.26)

                MAC-OS X 10.4.8 or later

                Wince with UVC

                Android 4.0 or above with UVC

SHIPPING LIST

  • USB Night Camera(With Microphone) x1

The 2 Megapixels USB Night Camera (with Microphone) appears in the following collections:

SKU DF-FIT0730
