Wide Band 4G LTE Internal LoRa Antenna
825 units available with a short lead time.

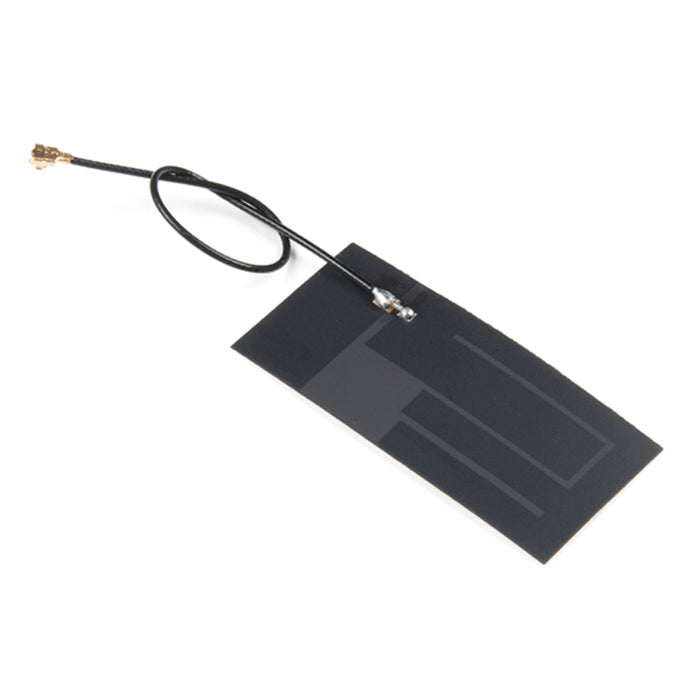

A compact wide-band internal antenna covering 700–2700 MHz, suitable for 4G LTE, LoRa, BLE, and other RF applications. The FPC radiator element connects via a 100mm coaxial cable with an IPEX (u.FL equivalent) connector, and 3M adhesive backing makes it easy to mount inside enclosures and project housings.
Key Features
- Frequency Range – 700–2700 MHz
- Gain – 8 dBi
- VSWR – ≤1.8
- Input Impedance – 50Ω
- Polarisation – Vertical
- Power – 30W
- Radiator Material – FPC (flexible printed circuit)
- Cable – 1.13 coaxial, 100mm length
- Connector – IPEX (u.FL equivalent)
- Antenna Size – 53 × 24mm
- Mounting – 3M adhesive backing
- Operating Temperature – -40°C to +80°C
- Storage Temperature – -40°C to +80°C
Ideal For
- 4G LTE and cellular IoT projects
- LoRa and LPWAN applications
- BLE (Bluetooth Low Energy) devices
- Internal antenna installations in enclosures
Package Contents
- 1× Wide band 4G LTE internal antenna with IPEX connector
