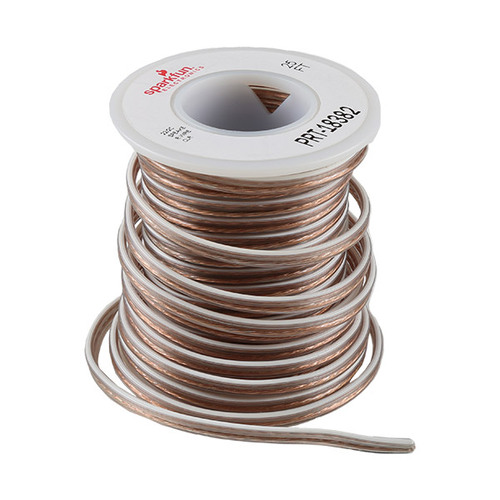

Hook-up Wire 2-Conductor - Clear (22AWG-7x30, Stranded, 25ft)
We have ✅ 1 available of the SF-PRT-18382 in our Sydney warehouse. An extra 125 units will be available shortly.
This standard 22 AWG hook-up wire is great for general connections between projects (low or high current applications). When you only need two connections to something (like power, a button or an indicator LED), this keeps your wiring nice and organized. It is also commonly used as speaker wire to connect from your speaker amp to the speakers. This wire can easily be soldered into place, but is also works well with many of our solderless connection options such as screw terminals, latch connector blocks, and spade connectors.
Includes a white line on one of the conductors and clear plastic on the other, which is helpful to know which line is which, and keep your connections correct at each end! Note, this cable is stranded, which makes it very flexible.
Comes in spools of 25 feet.
Features:
- Insulation material: PVC
- Insulation thickness: 0.017"
- Temperature rating: 105C
- Voltage rating: 300V
- Jacket Color: Clear
- Nominal Outer Diameter: 0.070" x 0.140"
- Part #: 5142
