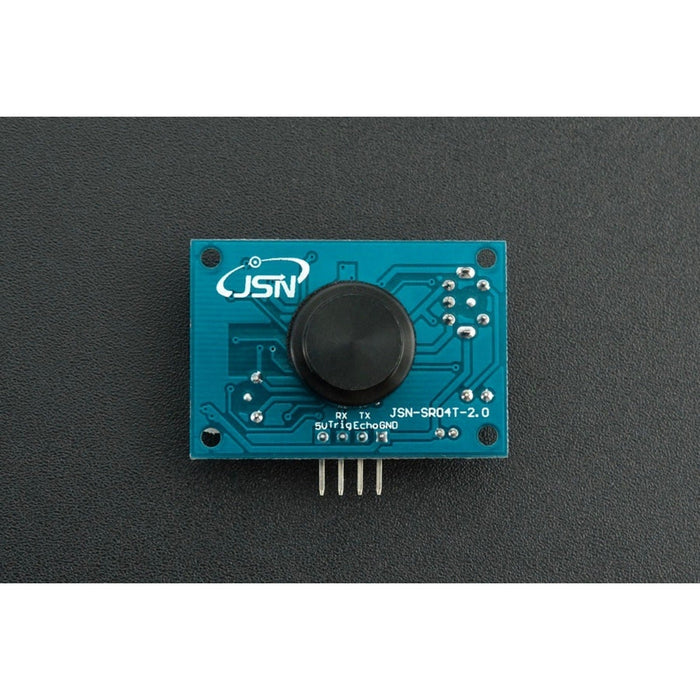

Weather-proof Ultrasonic Sensor
12 units will be available shortly.
INTRODUCTION
Most ultrasonic distance sensors aren't waterproof which can be a problem if you need your project to withstand the elements outdoors. No need to worry any more! We have developed waterproof ultrasonic distance sensors with a waterproof sealed emitter. This sensor is suitable for outdoor applications such as car reversing sensors, security alarms, industrial inspection, etc. What will you make?
Note: V2 has increased its resolution and accuracy.
SPECIFICATION
- Operating Voltage: 5V DC
- Static Current: 5mA
- Working Current: 40mA
- Working Range: 25cm ~ 4m
- Working Frequency: 40KHz
- Resolution: 3mm
- Detecting Angle: 70°
- Working Temp: -10 ~ 70°C
- Size: 41*29*20mm/1.61*1.14* 0.79 inches
- Weight: 14g
DOCUMENTS
SHIPPING LIST
- Weather-proof Ultrasonic Sensor x1
