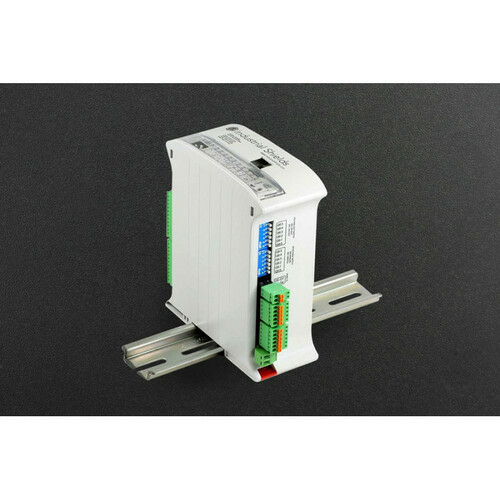

Spartan Arduino PLC 16DA (Optoisolated Output)
This Arduino-based Industrial PLC (Optoisolated Output) features 8 inputs(digital and analog) and 8 outputs(analog and digital/PWM isolated).
As it uses an Arduino Leonardo, you can directly program it through the USB, which is pretty easy to get started. The Spartan controllers are all standarised and can be programmed exactly on the same way.
Moreover, the industrial controller offers the possibility of communication using I2C by a master-slave connection that can connect up to 127 modules. All the components are configurable.
Board Overview
Features
With 8 inputs and 8 outputs
Easy to programming
Standarised controller
Specification
Mode Type: Spartan Arduino PLC 16DA
Input/Supply Voltage: 12~24VDC (Fuse Protection (2.5A) Polarity Protection)
Input Rated Voltage: 24Vdc
Rated Power: 30W
Max Current: 1.5A
Size: 100 * 45 * 115 mm
Clock Speed: 16MHz
Flash Memory: 32kB of which 4kB used by bootloader
SRAM: 2.5KB
EEPROM: 1KB
Communication Interface: I2C, USB, RS485 (HD), SPI, TTL
Operating Voltage Range: 11.4~25.4V DC
Operating Temperature: 0°C~60°C
Operating Humidity: 10%~90% (No Condensation)
Operating Environment: No Corrosive Gas
Storage Temperature: -20°C~60°C
Analog Input Voltage: 0 ~ 10Vac
Digital Input Voltage: 5 ~ 24Vdc
Interrupt Input: 5~24Vdc
Expandability: I2C - 127 elements, Serial Port, RS485
Analog Output Voltage (8bit): 0 ~ 10Vac
Digital Isolated Output Voltage: 5 ~ 24Vdc
PWM Isolated Output Voltage (8bit): 5 ~ 24Vdc
Documents
Shipping List
Spartan Arduino PLC 16DA (Optoisolated Output) x1
