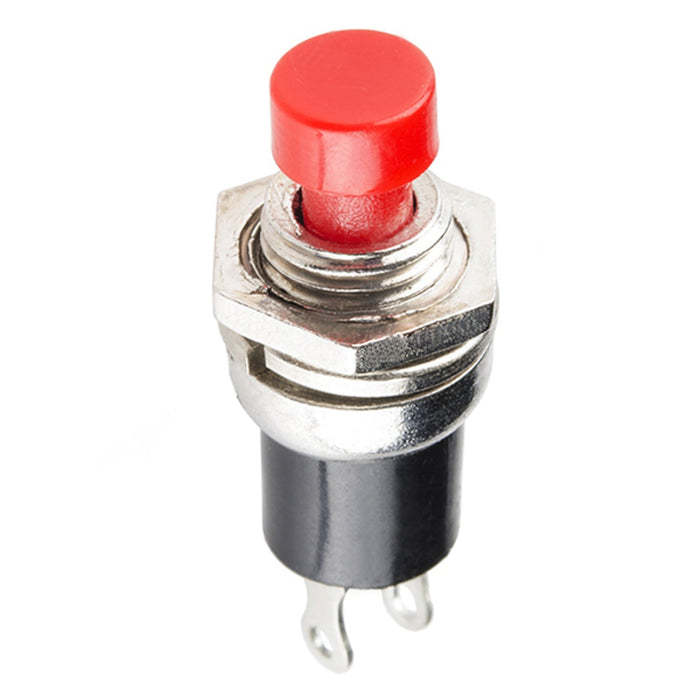

Momentary Button - Panel Mount (Red)
We have ✅ 2 available of the SF-COM-11992 in our Sydney warehouse. An extra 242 units available with a short lead time.
A compact red momentary push button designed for panel mounting. This SPST normally-open switch is ideal for basic on/off, reset, and trigger functions in electronic projects and enclosures.
Specifications
- Type: SPST, normally open (N.O.), momentary
- Colour: Red
- Thread Diameter: 6.75mm
- Overall Length: 1.06" (27mm) including leads
- Connection: Solder lugs
- Current Rating: 0.5A
- Voltage Rating: 250V AC
Ideal For
- Panel-mount control buttons
- Reset and trigger switches
- Project enclosures and custom builds
