Micro Metal Geared Stepper Motor (12V 0.6kg.cm)
283 units will be available shortly.
INTRODUCTION

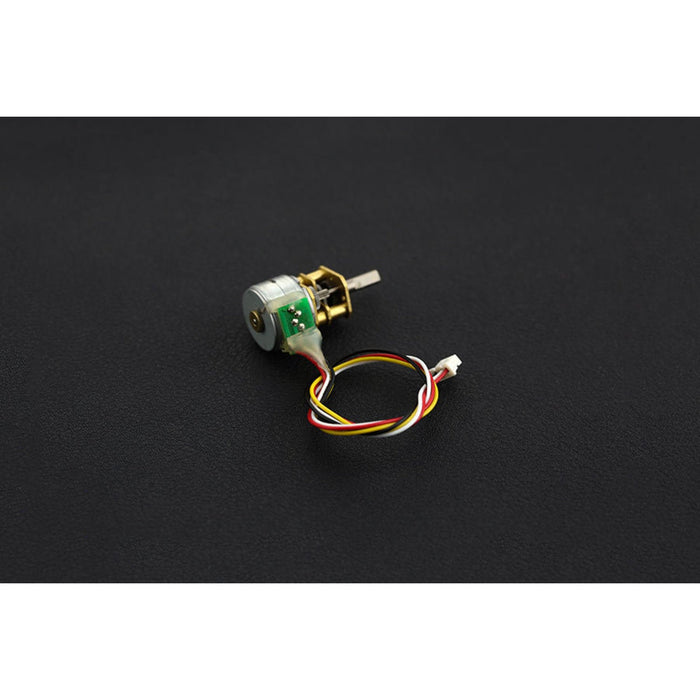

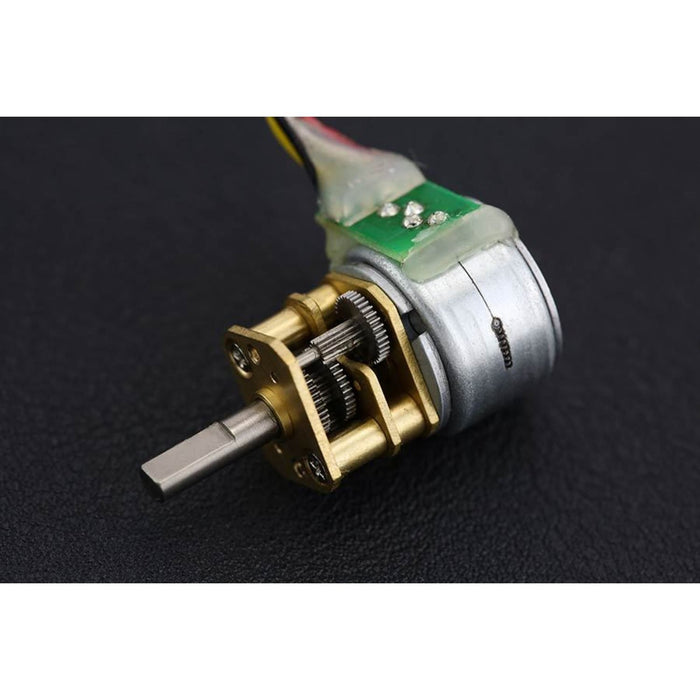

This is a miniature stepper motor with 100:1 metal reduction gear box for enhanced torque. It has a voltage input range of 5 - 12V DC. This product is suitable for the 3D printers and applications which require precise rotation control. Note: Please limit the motor current, or overlarge current will burn the motor.
SPECIFICATION
- Stepper Motor:
- Coil resistance: 30Ω±10%
- NO. Of Phases: 2 PHASES
- Step Angle: 18° / Step
- MAX.Starting Frequency: 900PPS min
- MAX.Slewing Frequency: 1200 PPS min
- Pull IN Torque: 6gf-cm min
- Lead Out Torque: 10gf-cm max
- Stepper Motor with Gear Box:
- Step Angle: 18/100° / Step
- MAX.Starting Frequency: 900PPS min
- MAX.Slewing Frequency: 1200 PPS min
- Pull IN Torque: 0.5Kgf-cm min
- Lead Out Torque: 0.8Kgf-cm max
- Cable Length: 15cm
- Weight: 14g
DOCUMENTS
SHIPPING LIST
- Micro Metal Geared Stepper Motor (12V 0.6kg.cm) x1
