Adafruit TRRS Jack Breakout Board
We have ✅ 2 available of the AF-5764 in our Sydney warehouse. An extra 39 units available with a short lead time.

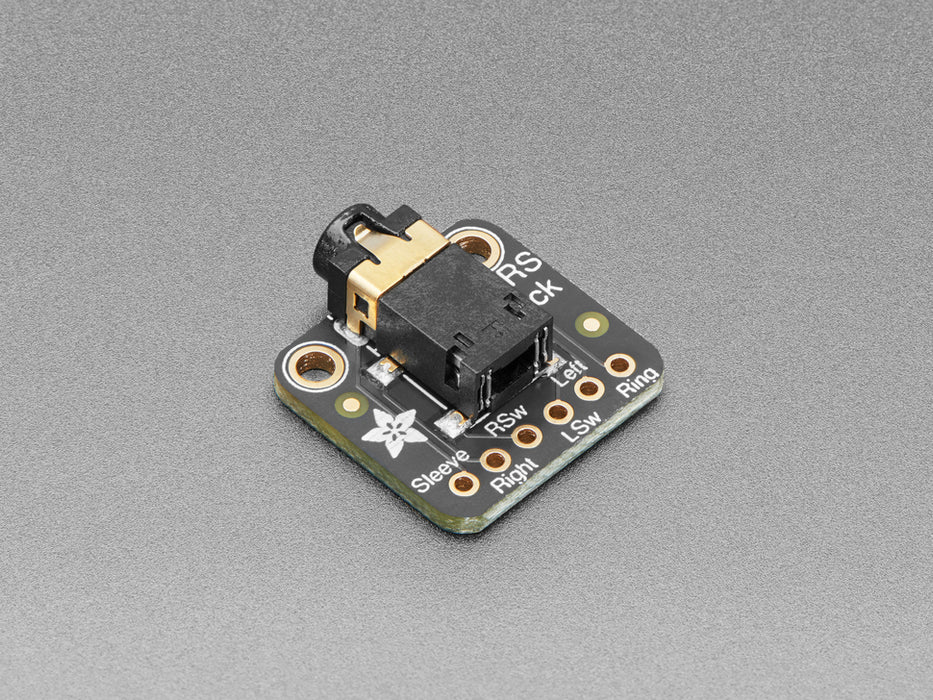

The Adafruit TRRS Jack Breakout Board provides easy access to all four contacts of a 3.5mm TRRS (Tip-Ring-Ring-Sleeve) audio jack — commonly used for stereo audio plus a microphone channel, as found on mobile phone headsets. It's also handy when you want to repurpose standard audio cables for low-speed data transmission with power, ground, and two data lines.
In addition to the four main contacts, the breakout includes two switched outputs that let you detect when a plug is inserted or automatically switch between a built-in speaker and headphones.
Key Features
- 4-Contact TRRS Breakout – Access to Tip, Ring 1, Ring 2, and Sleeve connections
- Two Switched Outputs – Left and right switch pins connect to their respective contacts when no jack is inserted, and float when a plug is inserted
- Insertion Detection – Use the switch pins to detect when a plug is connected, auto-switch audio output, or mute/power down when unplugged
- Sturdy Mechanical Connection – Two through-hole contacts near the jack opening for solid mounting
- Mounting Holes – For secure board attachment
- Breadboard-Friendly – Header strip included for breadboard or perfboard use
Ideal For
- Audio projects requiring stereo + microphone connections
- Headphone/speaker auto-switching circuits
- Repurposing 3.5mm cables for data transmission (power, ground, 2 data lines)
- Plug detection and insertion sensing
Package Contents
- 1× Adafruit TRRS Jack Breakout Board (fully assembled)
- 1× Header strip
