Miniware Smart Soldering Iron Welding Tool Kit
47 units will be available shortly.

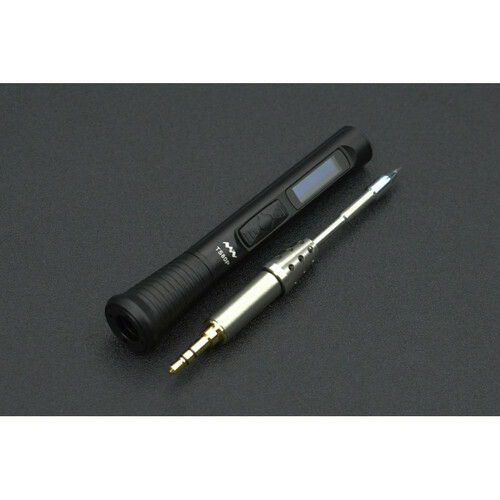

TS80P is a smart soldering iron powered by USB Type-C PD2.0/QC3.0 standard input. It only takes 8 seconds to heat up from room temperature to 300°C. The temperature of the soldering iron tip can be adjusted at any time, and all operations can be completed with one hand.
TS80P controller is made of aluminum alloy through CNC into a compact structure and high-tech design, ergonomic, beautiful, and fashionable, with the best holding experience!
The controller and the soldering iron tip are detachable. The tip is only about 100mm in length, and very small in size, which can be easily put in a pocket, is easy-to-carry, and convenient for field repair. Its output power has been increased to 30W for meeting a wider range of soldering.
The controller is also equipped with an OLED screen so that you can monitor the status of the soldering iron at any time; There are two shortcut buttons for fast temperature adjustment, and the easy-push tip fastener provides a convenient way to push to loosen the soldering tip for quick replacement; The careful anti-slip design offers a best holding experience.
With a built-in smart chip, TS80P can smartly control the rise and fall of tip temperature and features sleep, automatic power-off, safety protection and other modes. You can freely burn the soldering iron development firmware, and even customize the 96x16 pixel BMP image of the boot screen.
TS80P adopts a mobile power supply and can be used for field repair anytime and anywhere. The soldering tip has an internal thermal ceramic heating core, and through the pure copper heat conduction, it can quickly transfer heat to the tip of the soldering tip, achieving an excellent temperature control performance. The TS80P can heat room temperature up to 300°C with an 8-second heating time at the fastest. The Type-C port also has a built-in safety protection chip to avoid damage to the module by mis-operation.
Features
OLED screen, full-body CNC aluminum alloy casing
USB Type-C 0/QC3.0 standard input
Power increased from 18W to 30W max
Only 8s to heat from room temperature to 300°C
Brand new easy-push tip fastener, one push to loosen tips
Builtin smart chip for Port Protection
Share same tips with TS80
Applications
Portable tool
Specification
Temperature Range: 100°C- 400°C(Max)
Input: 9V 2A (QC 3.0)/ 12V 3A (PD2.0)
Power: 30W Max
Fastest heating time (from room temperature to 300°C): 8s
Data/Power Interface: USB Type-C
Temperature stability: ±3%
Display: OLED
Length: controller: 96mm; tip: 100mm(60+40mm)
Weight: 38g (power adaptor not included); Tip: 14g (B02 tip)
Certifications: CE, FCC
Shipping List
TS80P Controller x1
Ground Wire x1
Soldering Tip (B02) x1
Type-C to C Silicone Cable x1
PD2.0 Power Plug (US) x1
Hex Key x1
