Grove Cable Pigtail - 2mm pitch 100mm long
We have ✅ 5 available of the AF-5244 in our Sydney warehouse. An extra 100 units will be available shortly.

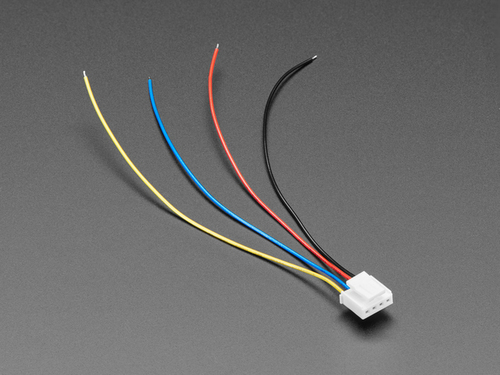

If you'd like to make a connection to a board or breakout with Seeed Grove connection, this 100mm long 4-wire cable is fitted with a Grove connector and four bare wires.
Please note you will have to watch for voltages on the power/signal pin when using 3V-only sensors, because Grove boards that are 5V logic like many Arduino UNO-compatibles.
The colors are:
- Black for GND
- Red for V+ - Can be 3V or 5V power depending on the microcontroller board!
- Blue for SDA
- Yellow for SCL
Note these are not JST cables, and won't fit in JST PH sockets!
