Sharp GP2Y1010AU0F Compact optical Dust Sensor
22 units available with a short lead time.
The Sharp GP2Y1010AU0F is a compact optical dust sensor that uses an internal infrared LED and phototransistor arranged diagonally to detect fine particles in the air. The sensor outputs an analog voltage proportional to dust density, and its pulse pattern can distinguish between smoke and dust particles.
Ideal for air quality monitoring projects, air purifier systems, and environmental sensing applications. Includes a connection cable for easy integration.
Key Features
- Optical Particle Detection – IR LED and phototransistor detect fine dust and smoke particles
- Analog Output – Voltage proportional to measured dust density with 0.5 V per 0.1 mg/m³ sensitivity
- Low Power – 11 mA typical, 20 mA max current consumption
- Wide Operating Range – Functions from −10 °C to 65 °C
Specifications
- Supply Voltage: 5–7 V
- Current Consumption: 11 mA typical, 20 mA max
- Sensitivity: 0.5 V / 0.1 mg/m³
- Operating Temperature: −10 °C to 65 °C
Ideal For
- Air quality monitoring and environmental sensing
- Air purifier and filtration systems
- HVAC and air conditioning integration
- IoT environmental data logging
Package Contents

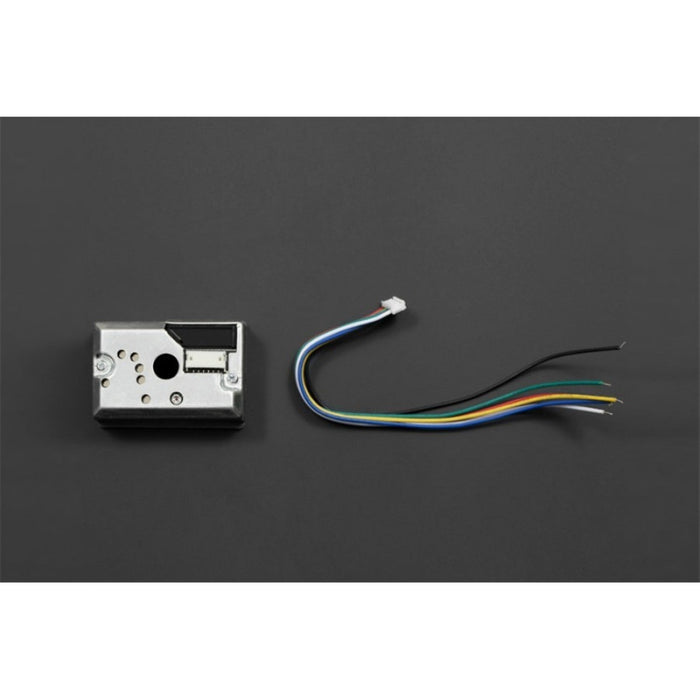

- 1× Sharp GP2Y1010AU0F Dust Sensor
- 1× Connection cable
