Gravity: ENS160 Air Quality Sensor
We have ✅ 5 available of the DF-SEN0514 in our Sydney warehouse. An extra 32 units will be available shortly.
This Gravity: ENS160 Air Quality Sensor, based on ScioSense's new ENS160 sensor chip, is specifically designed for indoor air quality monitoring and offers detection of multiple IAQ data (TVOC, eCO2, AQI).
The innovative TrueVOC™ technology combines the metal oxide (MOX) technology that brings this sensor superior accuracy, fast response, anti-interference, etc. With intelligent on-chip algorithms, the ENS160 can directly output rich and easy-to-understand environmental data. Preheat the sensor 3 minutes before use then you can obtain accurate data more quickly. What's more, the built-in automatic baseline correction algorithm ensures the long-term stability of the sensor.

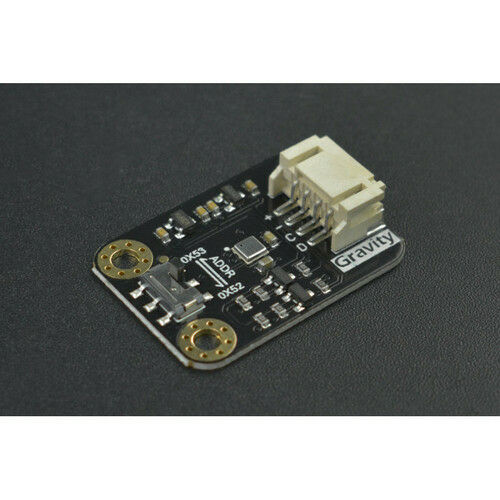

Board Overview
Connection Diagram
Features
Multiple IAQ outputs (TVOC, eCO2, AQI), various environmental data
Less than 3 minutes warm-up time, get data faster
Built-in algorithm, more accurate output
Automatic baseline correction, more stable for long-term use
Applications
Air purification/home automation device
Environmental pollution detection
HVAC/Ventilation system
Building automation/smart thermostat
Electrical appliances/ range hoods
Specification
Power Supply Voltage: 3.3 V~5.5 V
Working Current: 29 mA
Interface Mode: I2C
I2C Address: 0x52, 0x53
Operating Temperature Range: -40°C~85°C
Working Humidity Range: 5 %RH~95 %RH
eCO2 Measurement Range: 400 ppm~65000ppm
TVOC Measuring Range: 0ppb~65000ppb
Product Size: 30x22 mm/1.18x0.87 inch
Documents
Shipping List
Gravity: ENS160 Air Quality Sensor x1
Gravity-4P I2C/UART Sensor Connector x1
