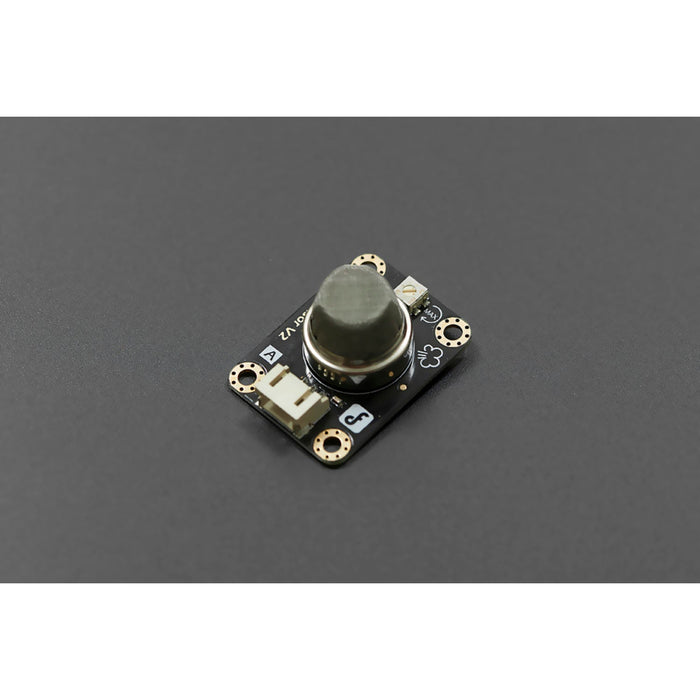

Gravity: Arduino LPG Gas Sensor (MQ5)
141 units available with a short lead time.
The Gravity MQ5 gas sensor is highly sensitive to LPG, natural gas, and town gas, with lower sensitivity to alcohol, cooking fumes, and cigarette smoke. The analogue output is proportional to gas concentration, and sensitivity can be adjusted via the on-board potentiometer. Gravity interface for plug-and-play connection to Arduino.
Key Features
- MQ5 Probe – High sensitivity to LPG, natural gas, and town gas
- Adjustable Sensitivity – On-board potentiometer for tuning
- Analogue Output – Proportional to gas density
- Gravity Interface – 3-pin plug-and-play connection
- Fast Response – Quick detection of gas presence
Specifications
- Power Supply – 5V
- Interface – Analogue (Gravity)
- Pin Definition – 1: Output, 2: GND, 3: VCC
- Dimensions – 40 × 20 mm (1.57 × 0.79")
Package Contents
- 1× Gravity Arduino LPG Gas Sensor (MQ5)
- 1× Gravity Analogue Cable
Resources
The Gravity: Arduino LPG Gas Sensor (MQ5) appears in the following collections:
SKU DF-SEN0130
