SparkFun RFID Starter Kit
117 units will be available shortly.

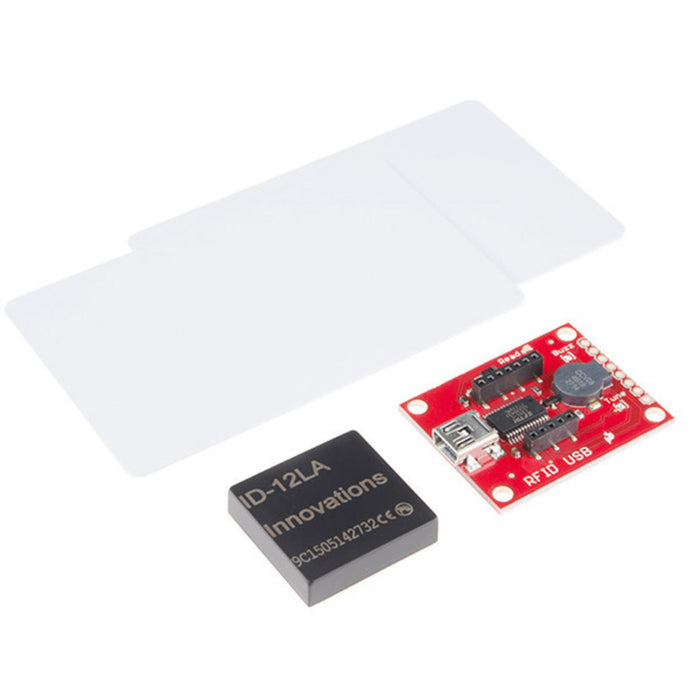

This it the SparkFun RFID Starter Kit, an all-in-one kit that offer everything you need to get your next RFID project off the ground. This kit includes our USB RFID Reader, ID-12LA RFID module, and two 125kHz RFID cards. We’ve done away with the annoying clamshell and now offer this in the same type of box as the rest of our kits.
The RFID USB Reader is a simple to use, USB to serial base unit for the ID-3LA, ID-12LA, and ID-20LA readers. Simply plug a reader into the headers and attach a miniUSB cable. Open a terminal program of your choice at 9600bps 8N1, then scan your 125kHz ID tag and the unique 32-bit ID will be shown on the screen. The unit is based on a FTDI chip and comes with a read LED and buzzer.
The ID-12LA is a very simple RFID reader module. It plugs directly into the USB reader to allow you to read RFID tags through a USB connection. Power the module, hold up a card, and get a serial string output containing the unique ID of the card.
Includes:
Documents:
- Schematic (RFID USB Reader)
- Eagle Files (RFID USB Reader)
- Hookup Guide
- Datasheet (ID-12LA)
- USB FTDI Drivers for Linux, MAC, and PC
