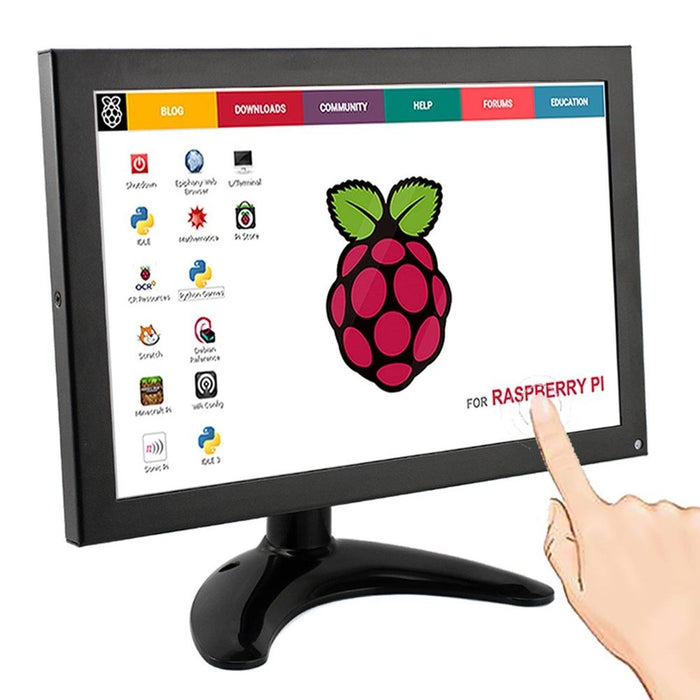

10.1 Inch Metal Shell IPS TFT 1280x800 Portable Monitor with Touch Function for Raspberry Pi

A 10.1" IPS touchscreen monitor in a metal enclosure with built-in loudspeaker, designed for use with the Raspberry Pi and Windows PCs. The Raspberry Pi can be mounted to the back of the screen and powered directly from the monitor, reducing cable clutter.

The display supports HDMI, VGA, and AV video inputs with 1280 × 800 resolution and capacitive touch. It can be controlled via rear-panel buttons or the included remote control, with adjustable contrast, colour, and brightness settings.

Key Features

• Screen Size – 10.1" IPS
• Resolution – 1280 × 800
• Touch – Capacitive touchscreen (USB)
• Video Inputs – HDMI, VGA, AV
• Audio – Built-in loudspeaker
• Viewing Angle – 85° in all directions
• Contrast Ratio – 500:1
• Brightness – 300 cd/m²
• Input Voltage – 12 V DC
• Enclosure – Metal shell
• Dimensions – 243 × 163 × 40 mm
• Weight – 1600 g

Raspberry Pi Setup

git clone https://github.com/Elecrow-keen/Elecrow-LCD101.git
cd Elecrow-LCD101
sudo chmod +x Elecrow-LCD101
sudo ./Elecrow-LCD101

Ideal For

• Raspberry Pi desktop and kiosk setups
• Industrial automation and security monitoring
• Portable touchscreen workstations

Package Contents

• 1× 10.1" HDMI IPS LCD monitor with touch
• 1× 12 V / 2 A power adapter
• 1× Remote control
• 1× HDMI cable
• 1× USB-A to USB-A cable
• 1× USB-A to micro-USB cable
• 1× Acrylic mounting board
• 4× Plastic screws, 4× standoffs, 4× nuts
• 4× M4 × 10 mm screws

Resources

• User Manual (PDF)
• Raspberry Pi Touch Driver (GitHub)
